HEIDENHAIN TNC 320 291
8.7 Coor
dinat
e
T
ransf
or
mation Cy
cles

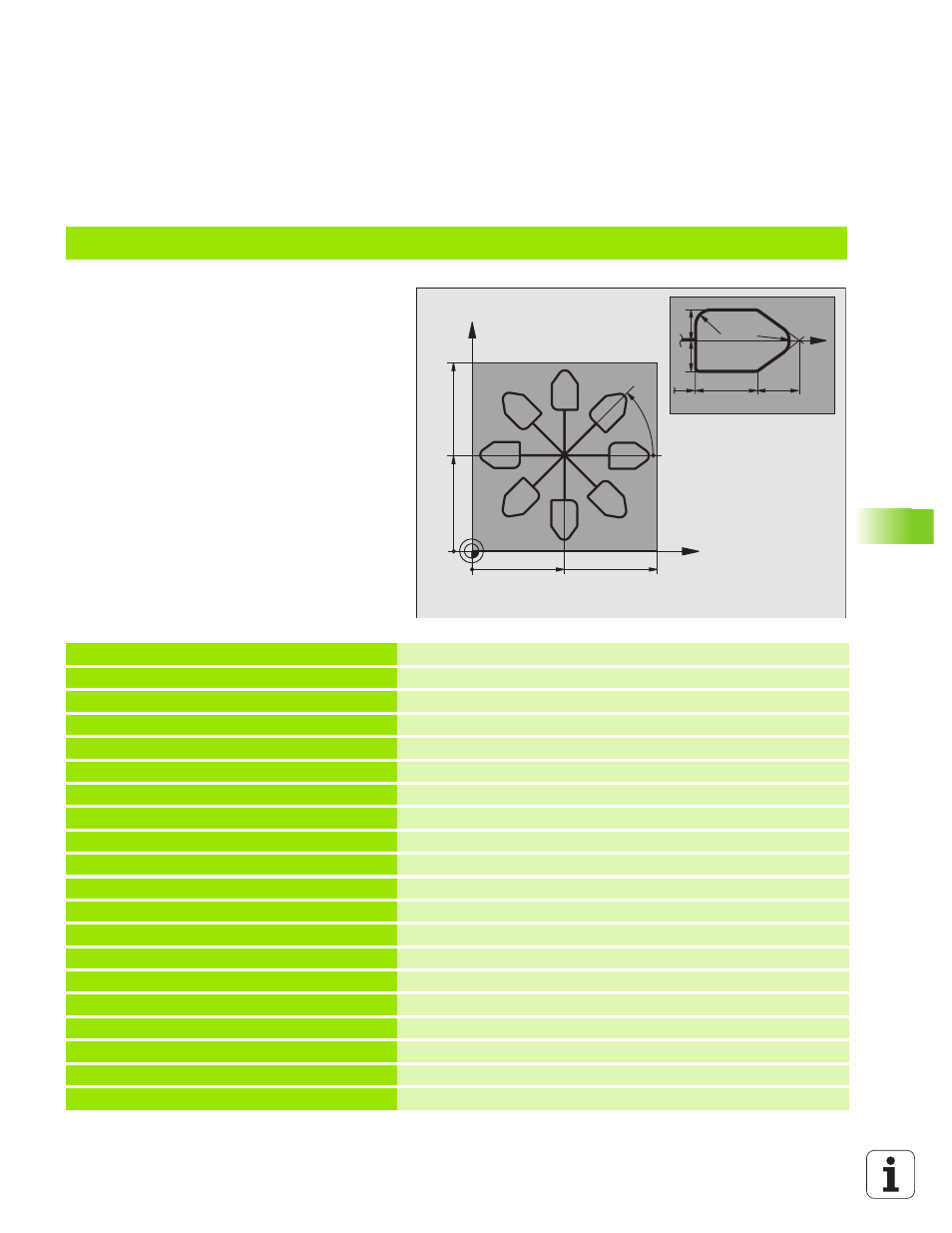

Example: Coordinate transformation cycles
Program sequence
„ Program the coordinate transformations in
the main program
„ For subprograms within a subprogram, ’FF˜
‰¤*zpV"h’Š:˜z"VF˜¢nn.
0 BEGIN PGM COTRANS MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20 Define the workpiece blank
2 BLK FORM 0.2 X+130 Y+130 Z+0
3 TOOL DEF 1 L+0 R+1 Define the tool
4 TOOL CALL 1 Z S4500 Tool call
5 L Z+250 R0 FMAX Retract the tool
6 CYCL DEF 7.0 DATUM SHIFT Shift datum to center
7 CYCL DEF 7.1 X+65
8 CYCL DEF 7.2 Y+65
9 CALL LBL 1 Call milling operation
10 LBL 10 Set label for program section repeat
11 CYCL DEF 10.0 ROTATION Rotate by 45° (incremental)
12 CYCL DEF 10.1 IROT+45
13 CALL LBL 1 Call milling operation
14 CALL LBL 10 REP 6/6 Return jump to LBL 10; repeat the milling operation six times
15 CYCL DEF 10.0 ROTATION Reset the rotation
16 CYCL DEF 10.1 ROT+0
17 CYCL DEF 7.0 DATUM SHIFT Reset the datum shift
18 CYCL DEF 7.1 X+0
19 CYCL DEF 7.2 Y+0
X
Y
65
65
130
130
45°
X
20
30
10
R5
R5 10
10
