IMG 1004 - Hardware Installation
105
Connecting Ethernet and TDM Cables - IMG 1004
Topic Location: IMG 1004-Installation and Setup Guide > IMG 1004-Hardware
Installation
Caution: Routers or switches connected to the IMG 1004 should be configured
for 100 Mb/sec and Auto-negotiation. Disabling Auto-negotiation may result in
packet loss.
Caution: Broadcast propagation between ports must be enabled to allow for
BootP to be succesful.
Network Interface Ports
There are two types of Network Interface ports on the IMG 1004:
 Control (Network Management)
 Data (RTP for SIP and H.323)

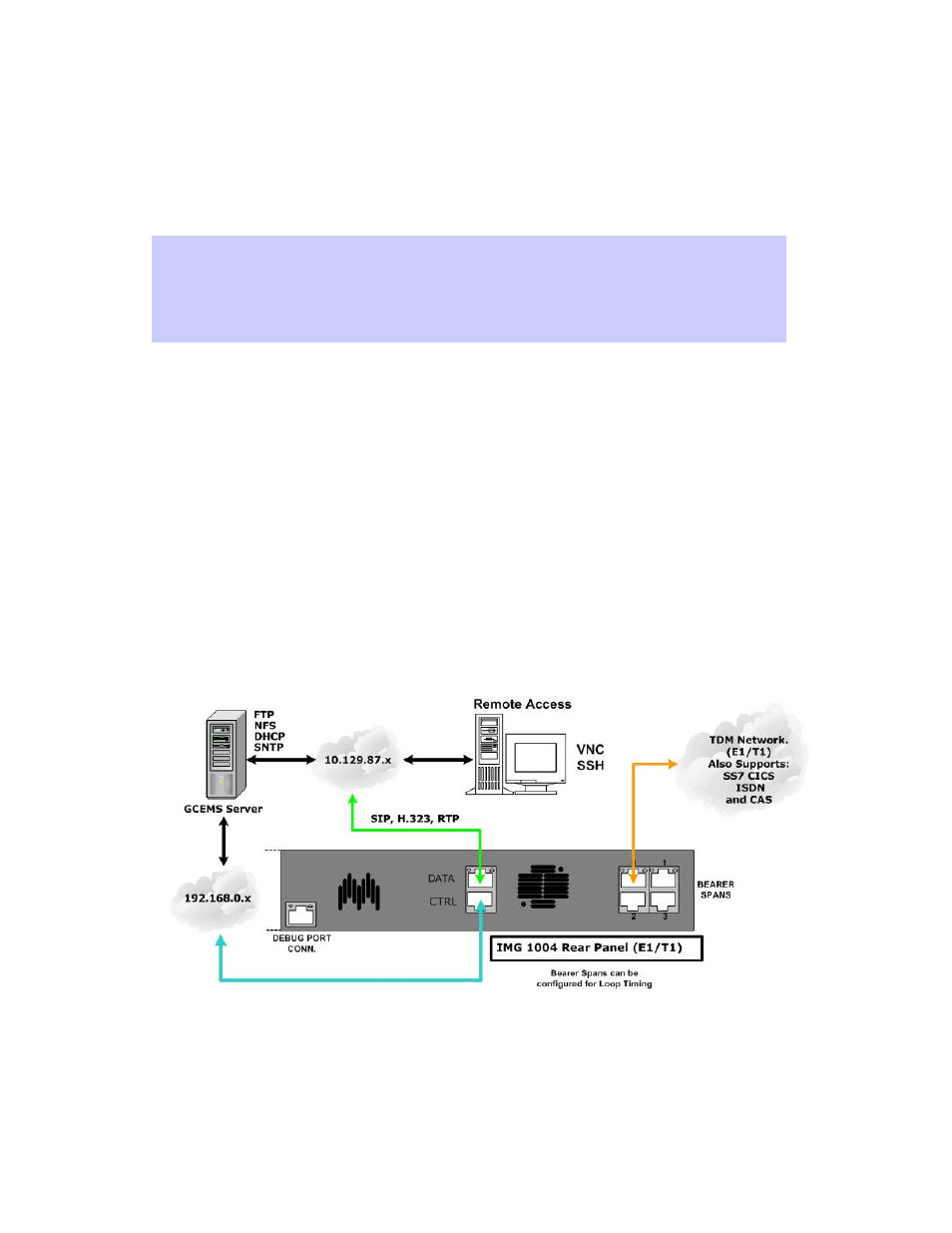

The IMG 1004 supports a variety of scenarios for designing your IP network. In the
example below the Network Management is connected to the CTRL port and the
media stream will interface with the DATA Port. The connections can be on the same
subnet or separated into two separate subnets.
TDM Bearer Channels
The Bearer ports are used as bearer spans only (T1/E1).
Related Topic
RJ 48 Connector Pinouts
