IMG 1004 - Hardware Installation
101
Rack Mounting the IMG 1004
Topic Location: IMG 1004-Installation and Setup Guide > IMG 1004-Hardware
Installation
Overview
The IMG 1004 is shipped ready to be mounted in a 19" rack. Use instructions below
when installing into rack.

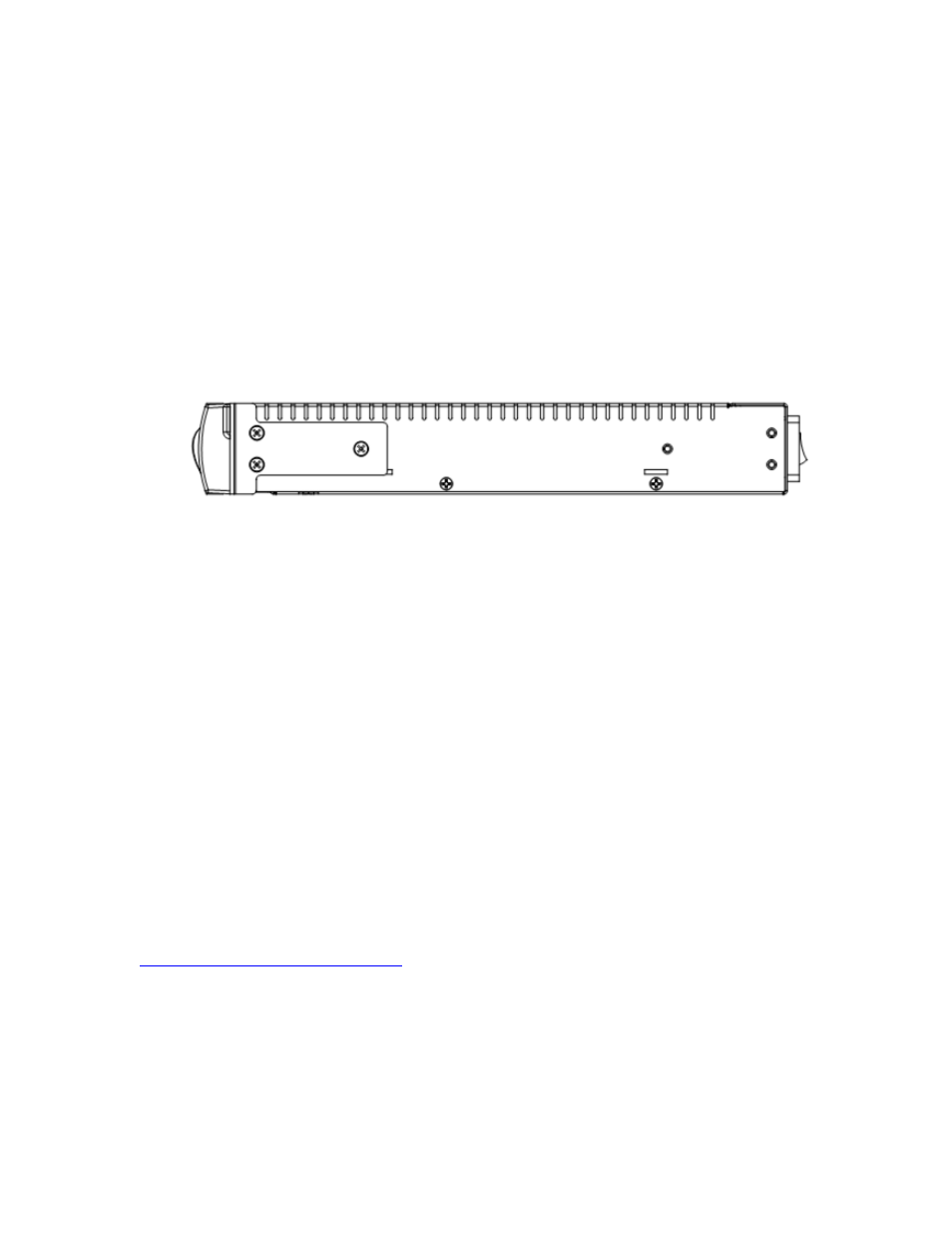

Factory Installed 19" Bracket Position
The IMG 1004 ships with brackets for a 19" rack. They are installed in the front
mount position. See diagram below
Mounting Options
Brackets can be positioned and rotated to align ears as required. The mounting
brackets can be positioned on either the front or the rear of the IMG 1004.
Mounting Guidelines
When mounting the chassis, follow these guidelines:
 Do not obstruct air flow to the front or the side vent holes.
 Mount in a clean well ventilated area
19" Rack Mounting
Required Tools and Hardware
The following customer-supplied tools and hardware are needed to mount the unit.
 Phillips head screwdriver
 Rack mounting hardware
Procedure
1. Position the mounting brackets on the side of the IMG 1004 in either the front or
rear of chassis and secure with supplied screws.
2. Align the holes on the mounting bracket ears to the mounting holes on the rack.
3. Secure IMG 1004 into 19" rack with correct thread and size screws.
Next Task
IMG 1004 - Connecting AC Power
