C-Band Transceiver Revision 1
LNA Installation MN/CSAT5060.IOM
8–7
8.2.2 R EDUNDANT LNA I NSTALLATION
Refer to Figure 8-6.

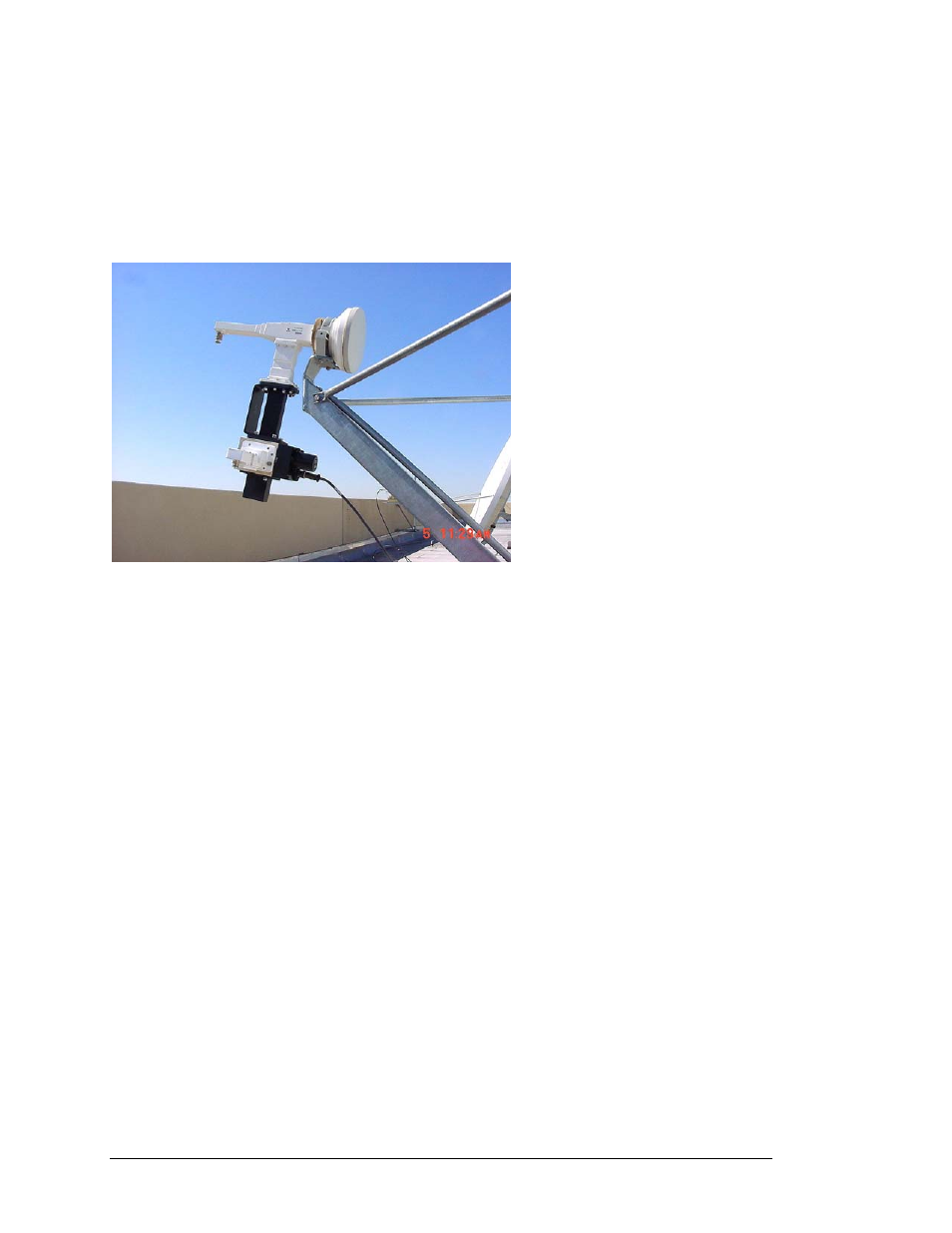

Figure 8-6. Installation of the
Redundant LNA Assembly.
1. Remove the protective cover from the antenna OMT.
2. Install the appropriate gasket (8-3) on the antenna end of the TRF.
a. If only one of the mounting surfaces has a groove, use the half-
thick gasket.(2)
b. If both mounting surfaces have grooves, use the full thick gasket
(5).
3. Position the LNA switch assembly (with gasket) in place on the
antenna and fasten using the supplied hardware.
