CSAT-5060 100/125 Watt Installation MN/CSAT5060.IOM
C–5
C.4.2 Single-Thread Installation
Step Procedures
1 Place Unistrut brackets (1, figure C-1) on a flat surface.
2 Slide two springnuts (9) into the each channel of the Unistrut brackets.
3 Fasten two pipe blocks (11) loosely to the springnuts using two bolts
(6), two flat washers (7), and two splitlock washers (8).
4 Position Unistrut brackets (1) with pipe blocks (11) against the
mounting pole, slide the pipe blocks (11) until they contact the
mounting pole. (See Figure C-3.)
5 Ensure the pipe blocks (11) are centered to the Unistrut brackets (1).
Tighten the hardware.
6 Attach bracket (5, figure C-1) to the strap (4) using two nuts (10), two
flat washers, (7), and two splitlock washers (8).
7 Place the assembly against the pole with the strap around the pole and
trim strap (4) to fit as shown in Figure C-4, using the tin snips.
8 Attach bracket (3, figure C-1) to the strap (4) using two nuts (10), two
flat washers (7), and two splitlock washers (8).
9 Slide tensioner bracket (2) into channel of the top Unistrut bracket (1).

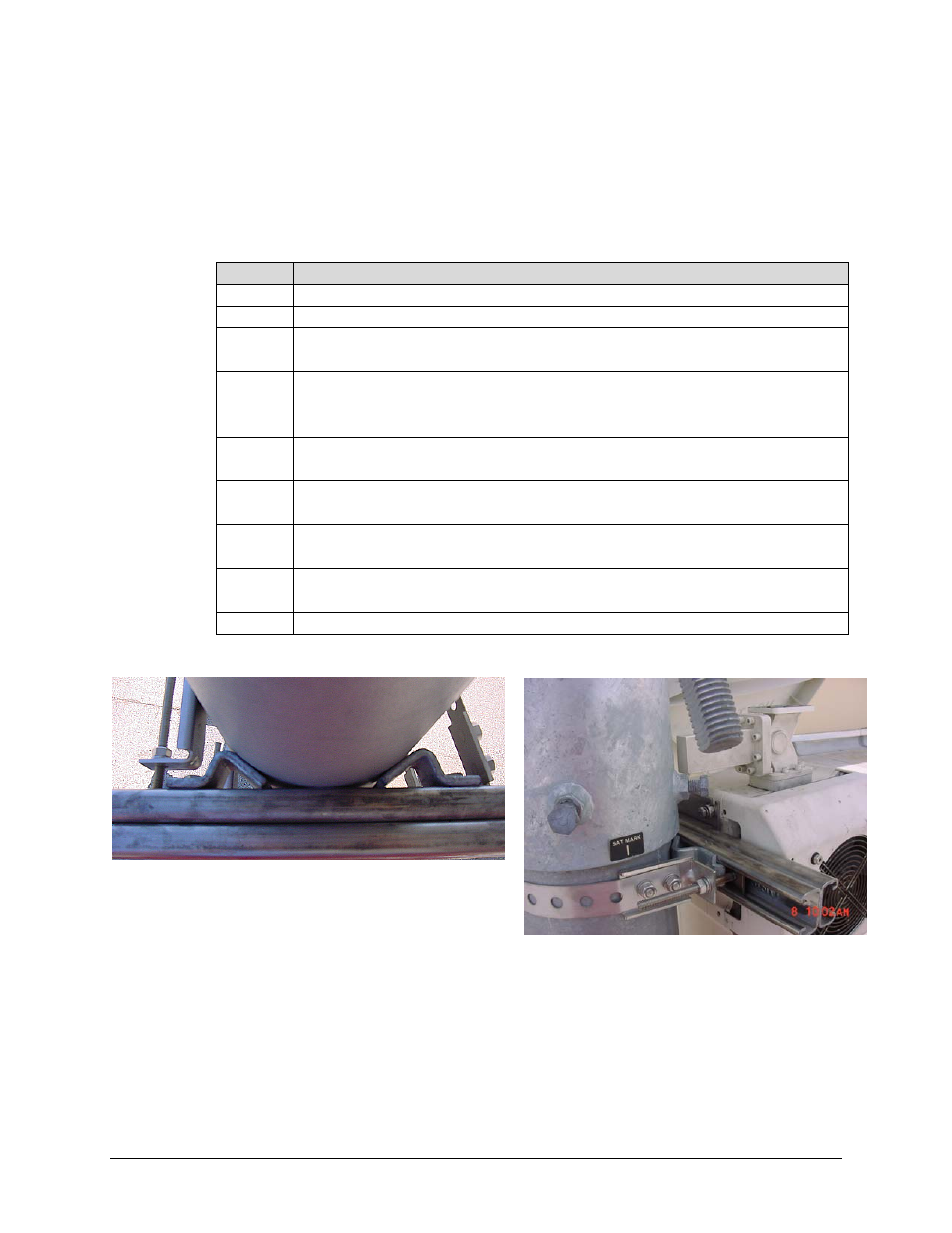

Figure C-3. Looking down
F igure C-4. Installing the Pole Bracket
