Page 192
CSAT-5060 C-Band Transceiver
Revision 1
Ethernet-based Remote Product Management
MN/CSAT5060.IOM
AA–28
AA.5.5.4.3 Status | Switch Page
Use this read-only page to see the operating status of any Redundancy Switches used with the
unit. At any time, click Refresh to update this page and see the most recent data.

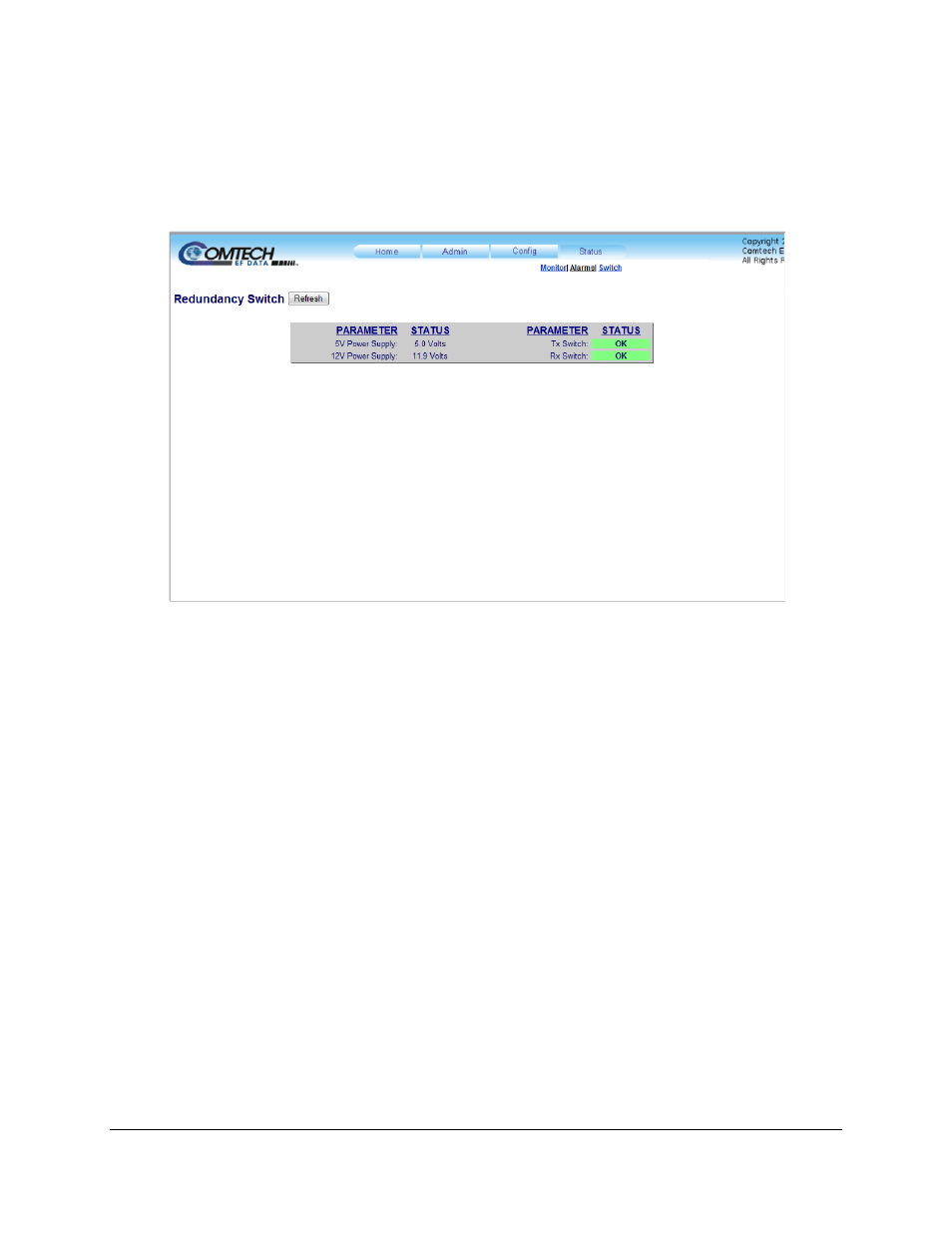

Figure AA-14. Status | Switch page
Should change picture to display an online unit as well as an offline unit current screen shot is an
offline unit.
