C-Band Transceiver

Revision 1

LNA Installation

MN/CSAT5060.IOM

8–2

Item

Part No.

Nomenclature

QTY

1 15D1002

Cover

2

2 FP/BR0076

Bracket,

Switch

1

3 28P1084

Adapter

1

4 Not

Used

5

SW/WG2AGSM

Switch, CPR229 +24V, Sealed

1

6 Not

Used

7 HW/M6X1X15MMHEX Bolt,

Hexhead

36

8 HW/M6LOCK

Washer,

Lock

36

9 HW/M6X1X15MMFLATSS

Screw,

Flat

4

10 CN/CX50NMALE

CN – 5

Ω, N Male Termination

1

11 GA/GSKTCPR229FULL Gasket,

CPR229

4

12 HW/M6FLAT

Washer,

Flat

36

-13

AS-0502

TX/RX Filter Support Bracket

1

- Not shown

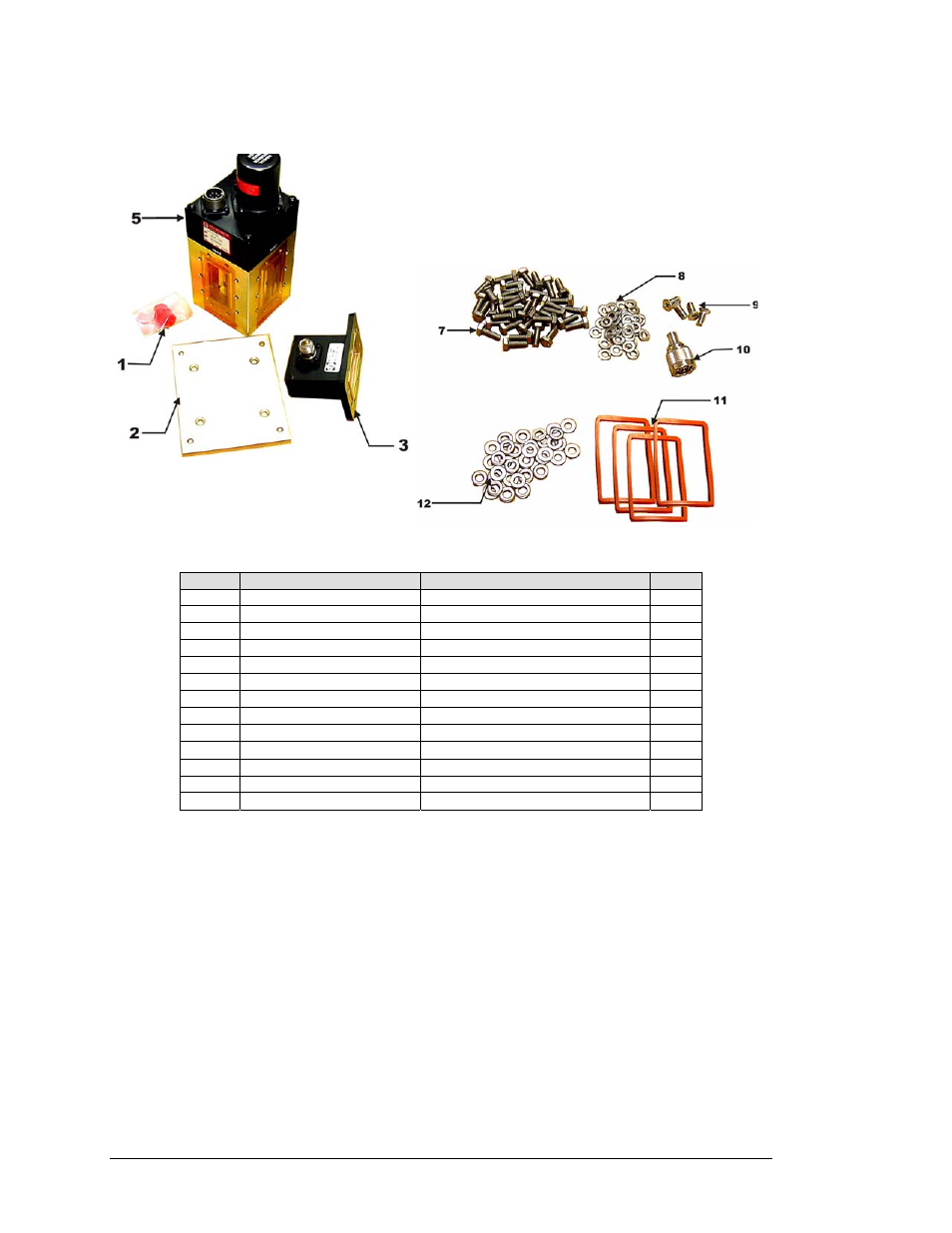

Figure 8-1. Mounting LNA Switch Kit, AS/0438
