AA.5.5.3.2 Config | Tx Page
Use this page to configure the Transmit (Tx) operational settings for the unit. At any time, click
Refresh to update this page and see the most recent data.

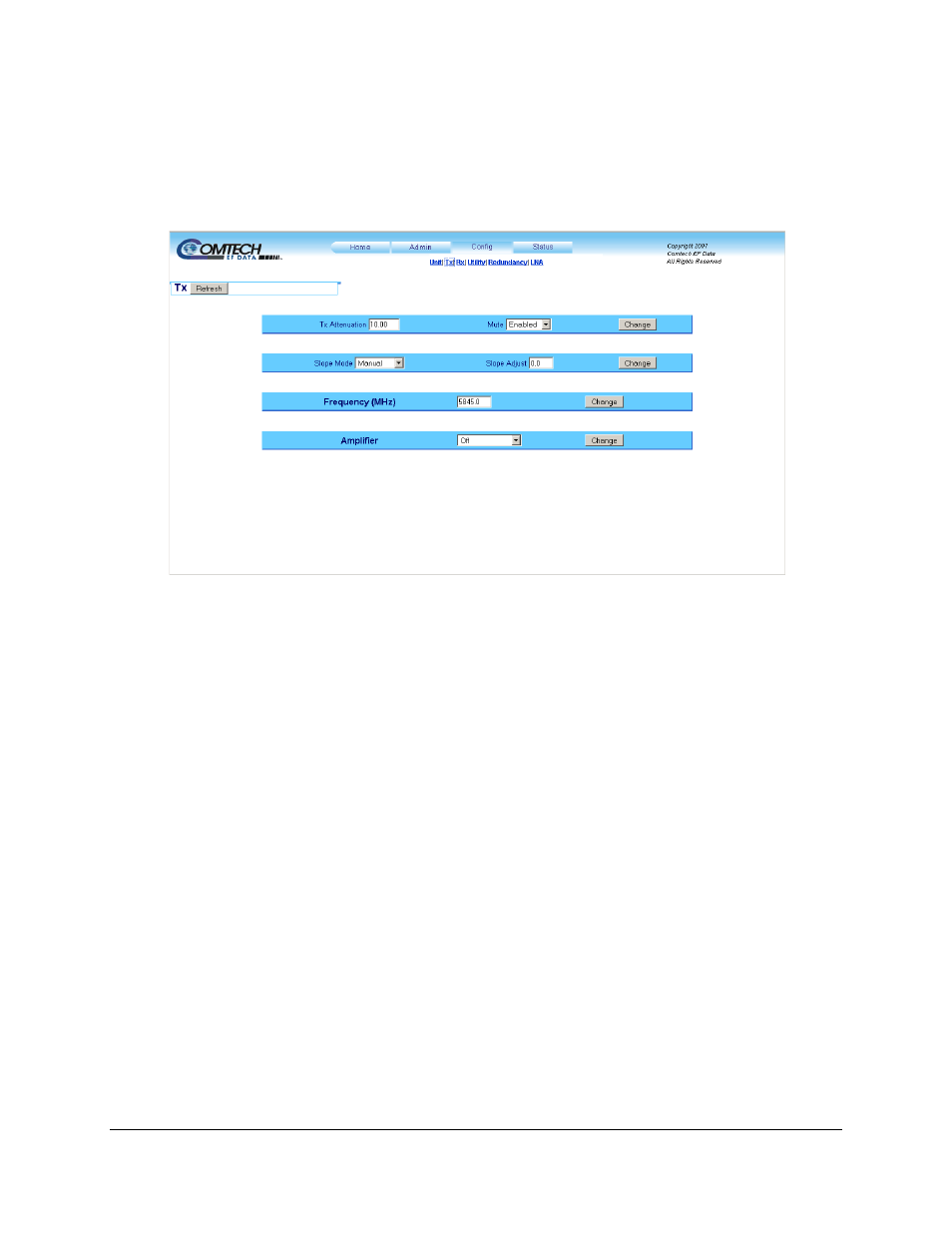

Figure AA-7. Config | Tx page
Tx Attenuation
Enter a numeric value from 00.00 to 25.00 to set the transmit attenuation in dB. The default
value is 10.00. Click Change to save the setting.
Mute
Use the drop-down list to select Disabled or Enabled for the transmitter mute. Click Change to
save the setting.
Slope Mode
Use the drop-down list to select Manual or Calibrated. Click Change to save the setting.
Slope Adjust
Enter a numeric value from 0.0 to 1.0 to set the slope adjust. Click Change to save the setting.
Frequency (MHz)
Enter a numeric value from 5845.0 to 6425.0 for a standard unit to set the transmit frequency
in MHz. The default value is 5845.0 MHz. Click Change to save the setting.
Amplifier
Use the drop-down list to select Off or On for the transmit amplifier. Click Change to save the
setting.
