Hardware Preparation and Installation
ATCA-7370/ATCA-7370-S Installation and Use (6806800P54H) 58
4. Fasten the cave creek module to the blade using the four M2.5x 4mm screws.
5. Reinstall the blade into the system as described in Installing and Removing the Blade on page
59 .
Cave Creek Module Removal
To remove the cave creek module:
1. Remove the blade from the system as described in Installing and Removing the Blade on page
59 .
2. Loosen and remove the four screws that holds the cave creek module.
3. Remove the cave creek module from the blade.
4. Reinstall the blade into the system as described in Installing and Removing the Blade on page
59 .

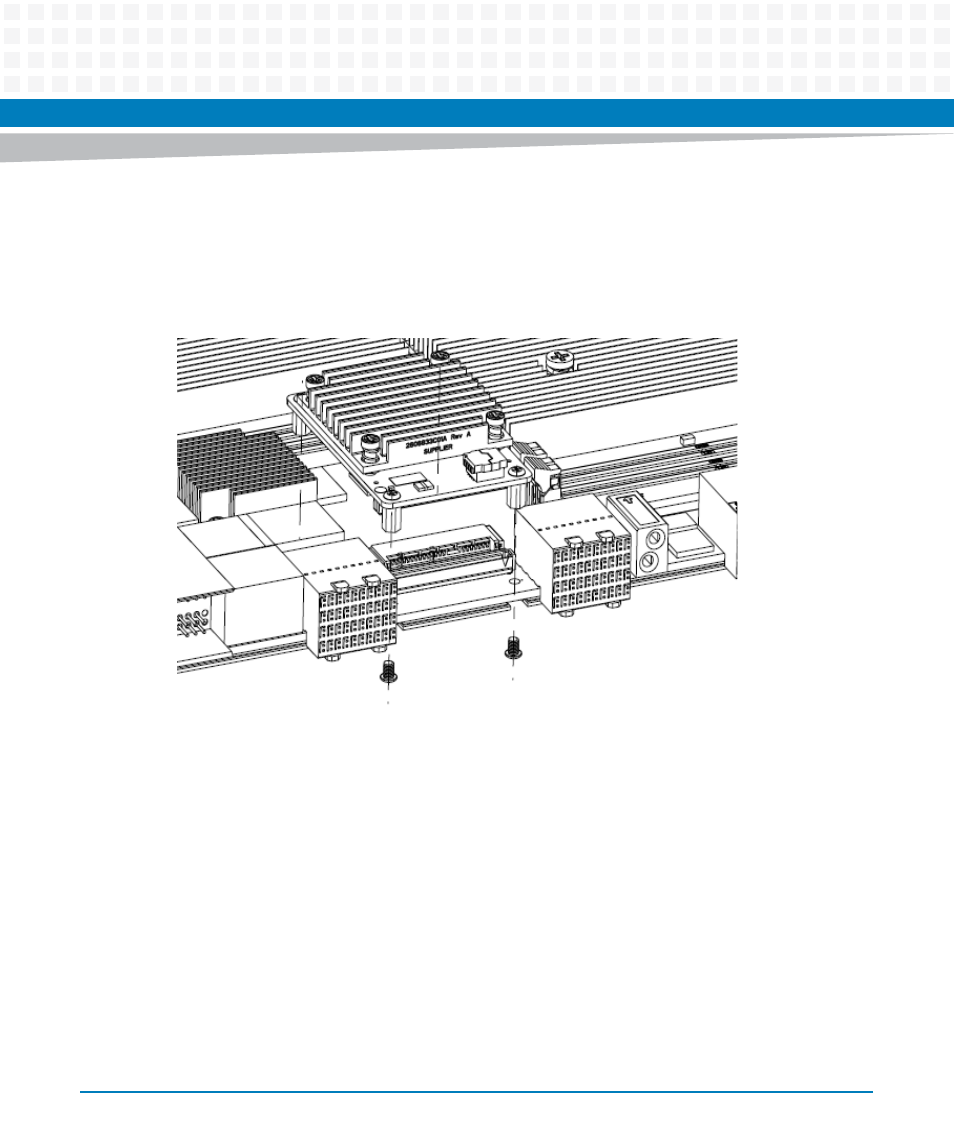

Figure 2-4 Cave Creek Module Installation
