Form I-PDH/SDH/PEH/SHH/PXH, Page 9

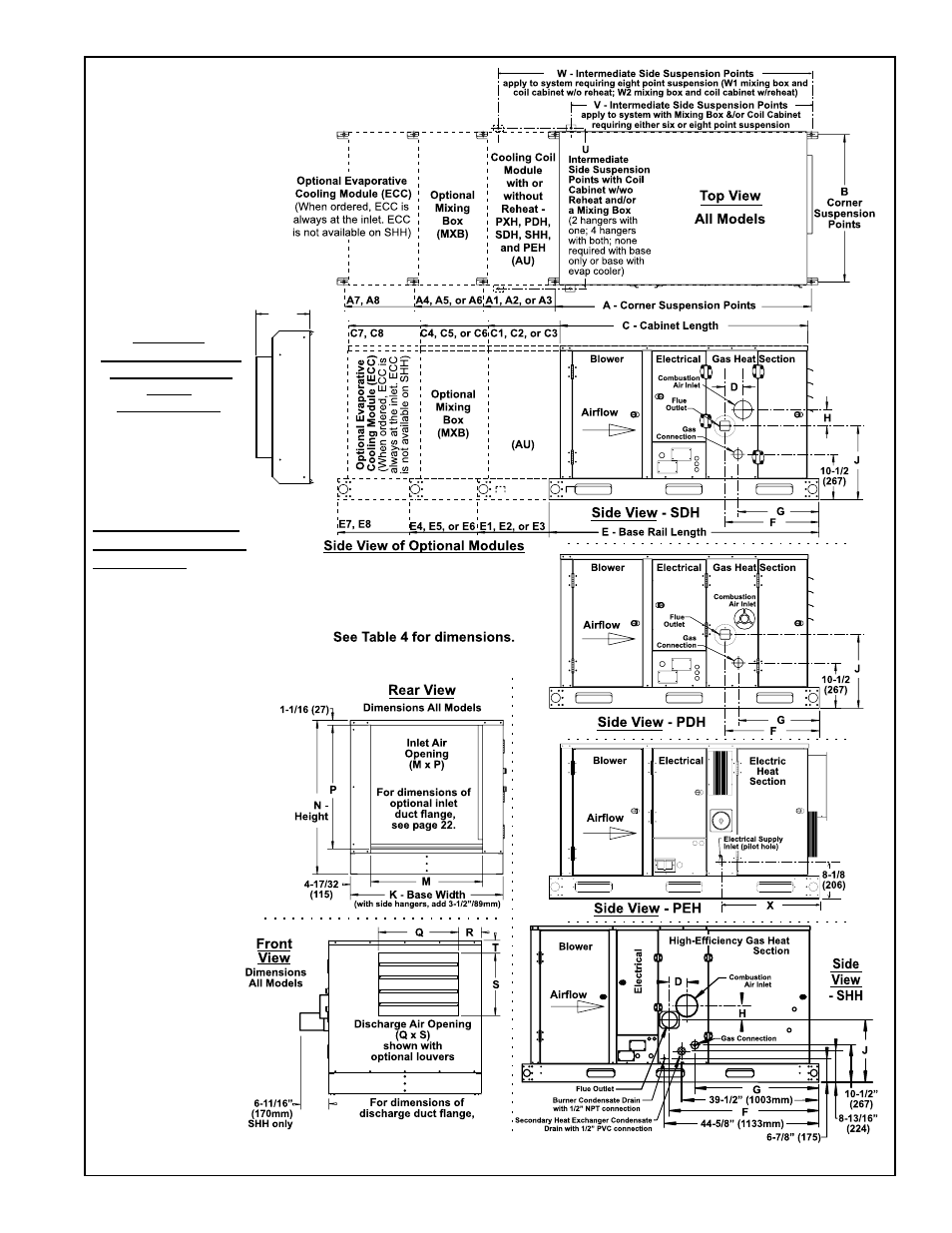

FIGURE 2 -
Dimensions
inches (mm)
NOTE: Side view of “no heat” Model PXH is
not illustrated but includes the blower section
and the heat section cabinets less the
heating components. Dimensions here apply
to “no heat” PXH only. For PXH
with hot water heat, see page 40.
see page 36.
Optional
Cooling Coil
Module with
or without
Reheat
Optional
Horizontal
Louvers -
PDH, SDH,
and SHH
Duct
Flange
- Std on
PEH;
Opt on
PDH,
SDH,
& SHH
(except PXH
with HW)
10”
(254mm)
Side View
of Option AR8 On/Off
Damper with Duct
Flange
(no mixing box)
[adds 10 inches
(254mm) to all
“C” dimensions]
Option Dimensions
and Inlet (Rear) View
with Options
•
Inlet Duct Flange,
page 22
•
On/off Inlet Damper
with Duct Flange,
page 23
•
Mixing Box, page 24
•
Evaporative Cooling
Module, page 29
•
Cooling Coil Cabinet,
pages 34 and 35
•
Outlet Duct Flange
option for PDH, SDH,
SHH, (std on PEH),
page 36
•
Optional Outlet
Nozzles for PDH,
SDH, SHH, and
PXH (without heat),
page 40
•
Hot Water Heat
Module for PXH,
page 41, including
Optional Discharge
Duct Flange,
Louvers, and
Nozzles
