4.4.3 Port Statistics Detail

This Page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details to

display. The selected port belong to the currently selected stack unit, as reflected by the Page header. The displayed counters are

the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit. The

Port Statistics Detail screen in

Figure 4-4-3

appears.

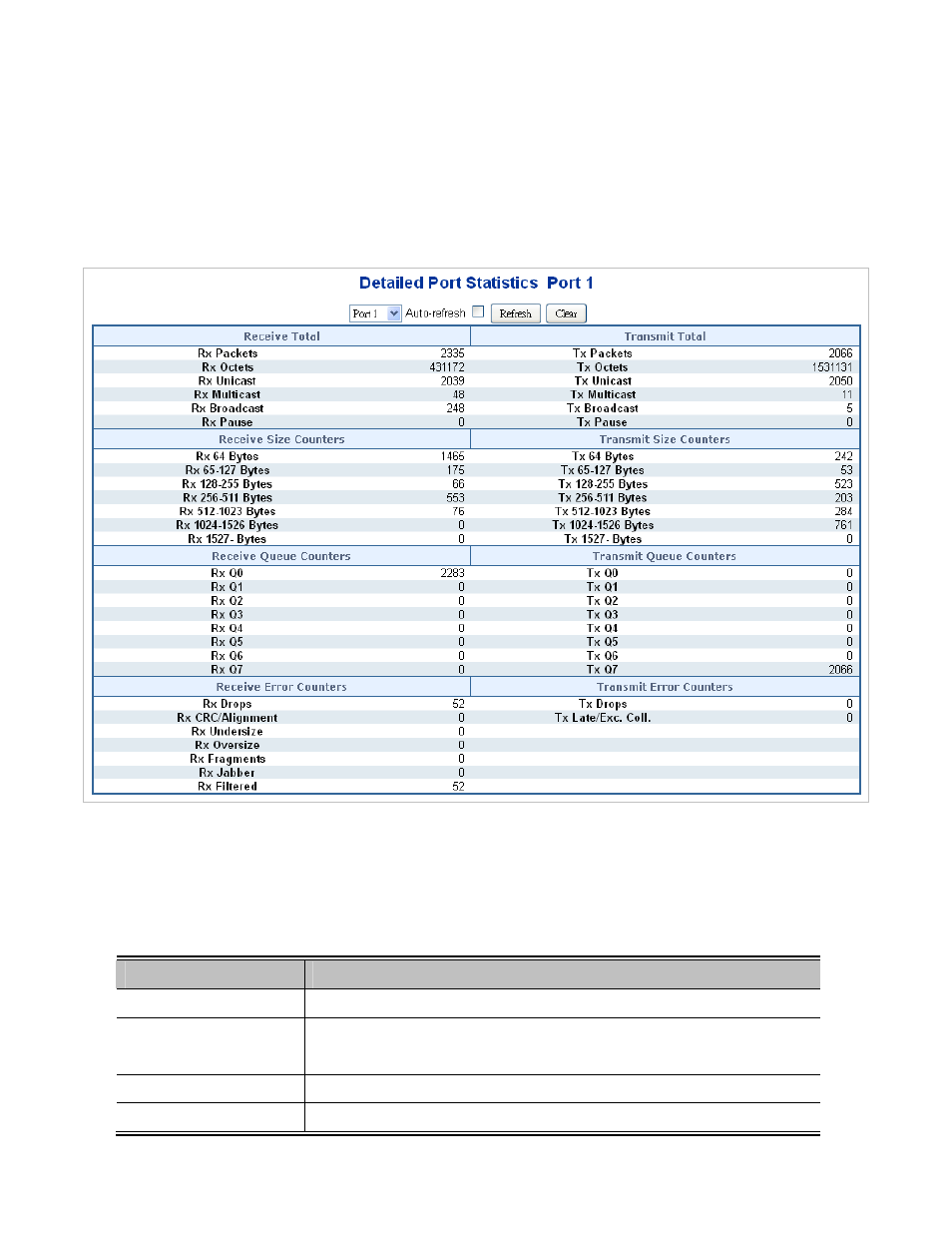

Figure 4-4-3:

Detailed Port Statistics Port 1 Page Screenshot

The Page includes the following fields:

Receive Total and Transmit Total

Object

Description

Rx and Tx Packets

The number of received and transmitted (good and bad) packets

Rx and Tx Octets

The number of received and transmitted (good and bad) bytes, including FCS,

but excluding framing bits.

Rx and Tx Unicast

The number of received and transmitted (good and bad) unicast packets.

Rx and Tx Multicast

The number of received and transmitted (good and bad) multicast packets.
