133

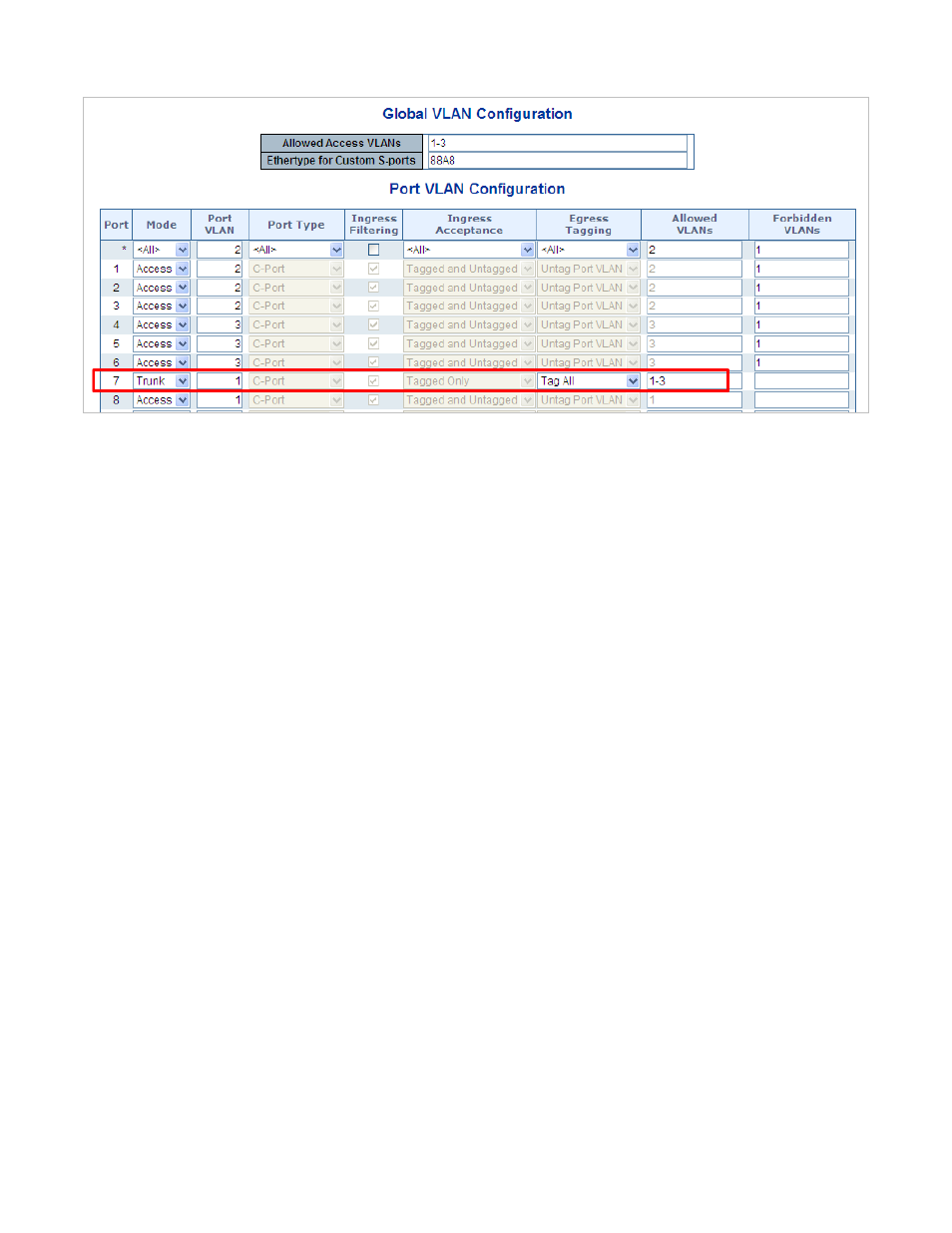

Figure 4-6-15: VLAN Overlap Port Setting & VLAN 1 – The Public Area Member Assign
That is, although the VLAN 2 members: Port-1 to Port-3 and VLAN 3 members: Port-4 to Port-6 also belongs to VLAN 1. But with
different PVID settings, packets form VLAN 2 or VLAN 3 is not able to access to the other VLAN.
6. Repeat Steps 1 to 6, set up the VLAN Trunk port at the partner switch and add more VLANs to join the VLAN trunk, repeat Steps
1 to 3 to assign the Trunk port to the VLANs.
4.6.8.3 Port Isolate
The diagram shows how the Managed Switch handles isolated and promiscuous ports, and the each PC is not able to access the
isolated port of each other’s PCs. But they all need to access with the same server/AP/Printer. This section will show you how to
configure the port for the server – that could be accessed by each isolated port.
