Source IP

IPv6 source address: (a.b.c.d) or 'Any', 32 LS bits

DSCP

Diffserv Code Point value(DSCP): It can be specific value, range of value

or 'Any'. DSCP values are in the range 0-63 including BE, CS1-CS7, EF or

AF11-AF43

Sport

Source TCP/UDP port:(0-65535) or 'Any', specific or port range applicable

for IP protocol UDP/TCP

Dport

Destination TCP/UDP port:(0-65535) or 'Any', specific or port range

applicable for IP protocol UDP/TCP

Action Parameters

Class

QoS class: (0-7) or 'Default'.

DPL

Valid Drop Precedence Level can be (0-3) or 'Default'.

DSCP

Valid DSCP value can be (0-63, BE, CS1-CS7, EF or AF11-AF43) or

'Default'.

'Default' means that the default classified value is not modified by this QCE.

Buttons

: Click to apply changes

: Click to undo any changes made locally and revert to previously saved values

: Return to the previous Page without saving the configuration change

4.9.12 QCL Status

This Page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific QCE

is not applied to the hardware due to hardware limitations. The maximum number of QCEs is 256 on each switch. The QoS Control

List Status screen in

Figure 4-9-14

appears.

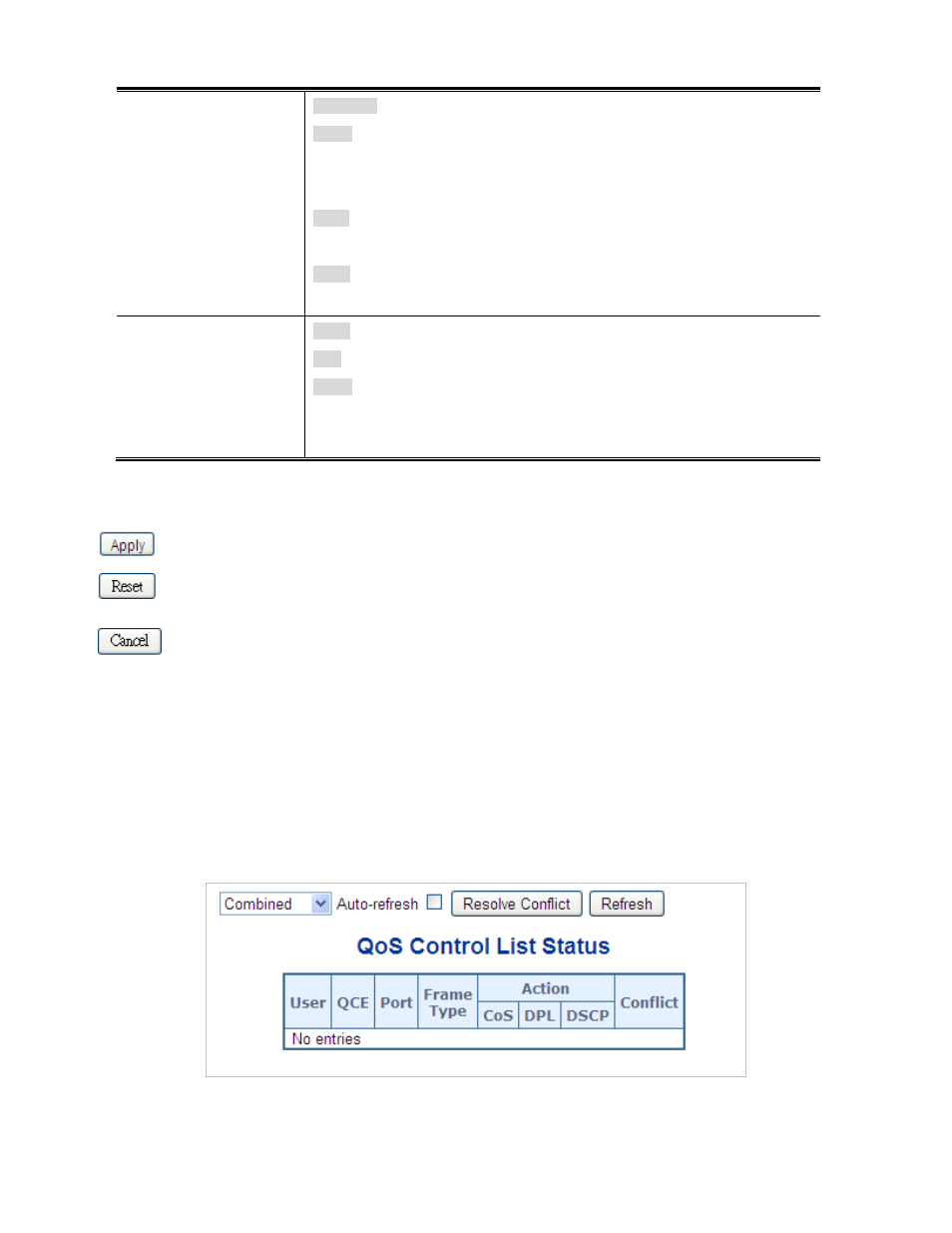

Figure 4-9-14:

QoS Control List Status Page Screenshot
