200

4.9.4 Port Scheduler

This Page provides an overview of QoS Egress Port Schedulers for all switch ports. The Port Scheduler screen in

Figure 4-9-3

appears.

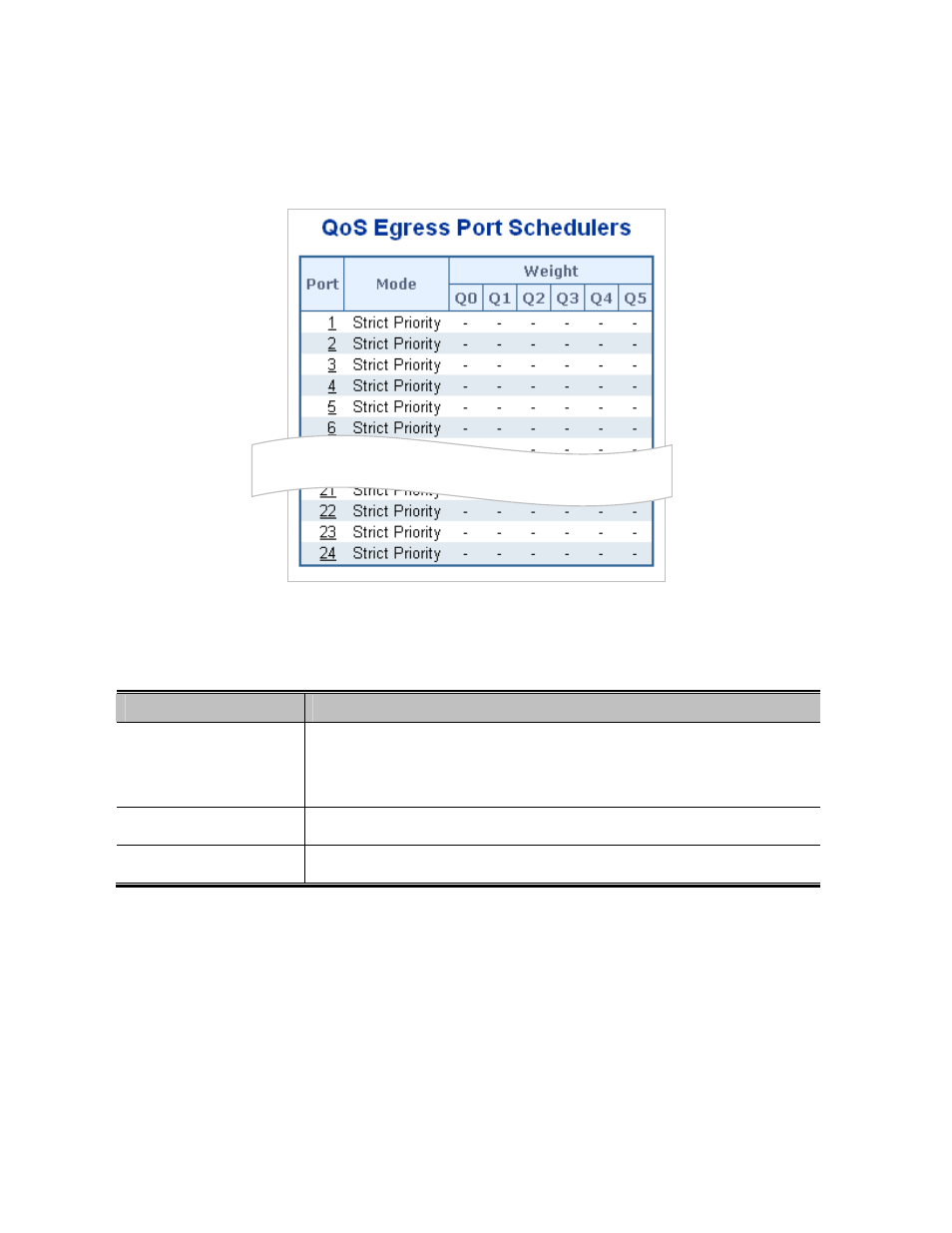

Figure 4-9-3:

QoS Egress Port Schedule Page Screenshot

The Page includes the following fields:

Object

Description

Port

The logical port for the settings contained in the same row.

Click on the port number in order to configure the schedulers.

For more detail, please refer to chapter 4.9.5.1.

Mode

Shows the scheduling mode for this port.

Q0 ~ Q5

Shows the weight for this queue and port.
