profile by using the following buttons:

: List the rules associated with the designated profile.

: Adjust the rules associated with the designated profile.

Buttons

: Click to add new IPMC profile. Specify the name and configure the new entry. Click "Save”.

: Click to apply changes

:

Click to undo any changes made locally and revert to previously saved values.

4.8.3 Address Entry

This page provides address range settings used in

IPMC profile

. The address entry is used to specify the address range

that will be associated with

IPMC

Profile. It is allowed to create at maximum 128 address entries in the system.

The

Profile Table screen in Figure

4-8-6

appears.

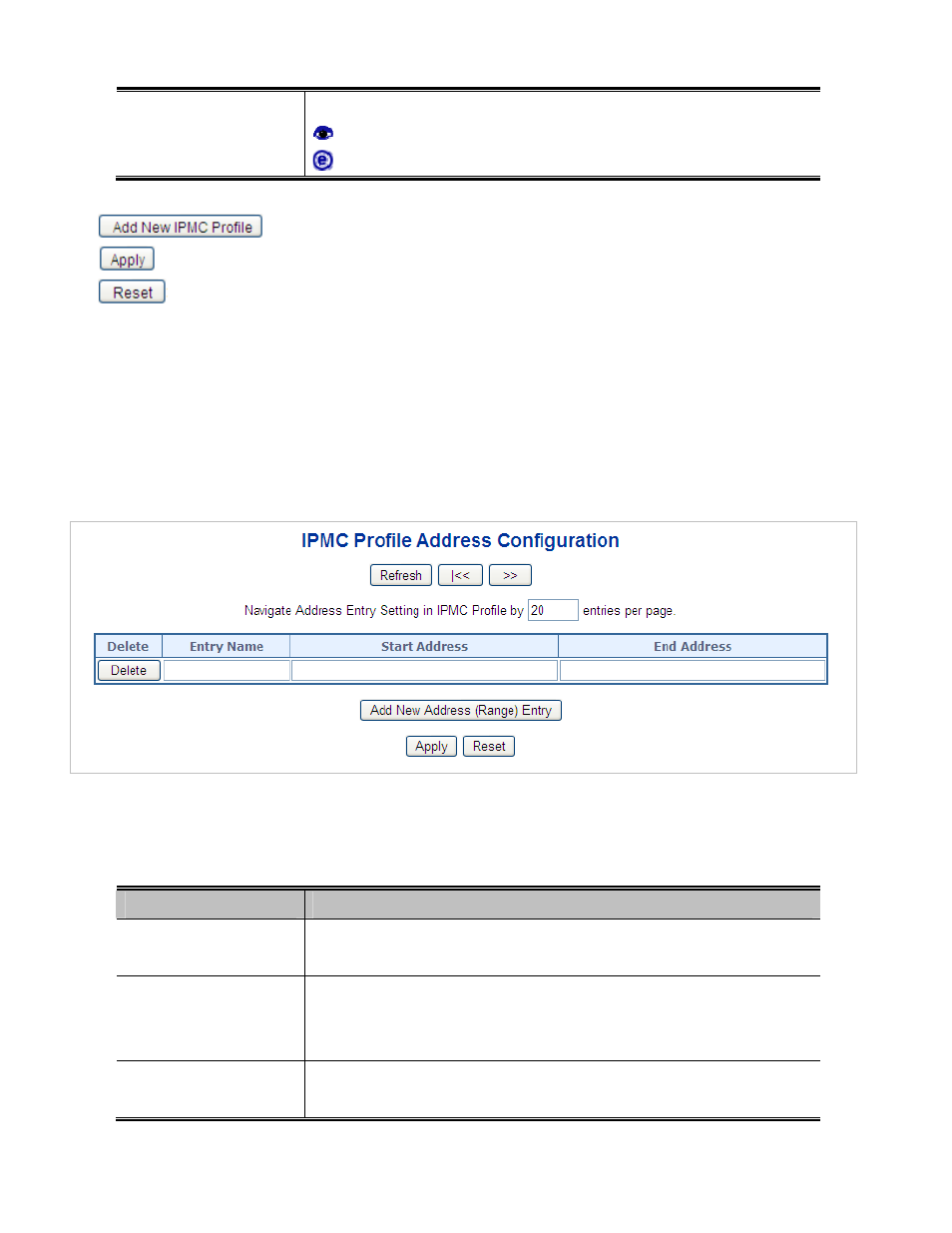

Figure 4-8-6:

IPMC Profile Address Configuration Page

The Page includes the following fields:

Object

Description

Delete

Check to delete the entry.

The designated entry will be deleted during the next save.

Entry Name

The name used for indexing the address entry table.

Each entry has the unique name which is composed of at maximum 16

alphabetic and numeric characters. At least one alphabet must be present.

Start Address

The starting IPv4/IPv6 Multicast Group Address that will be used as an address

range.
