4.9.7 Port DSCP

This Page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The Port DSCP screen in

Figure 4-9-8

appears.

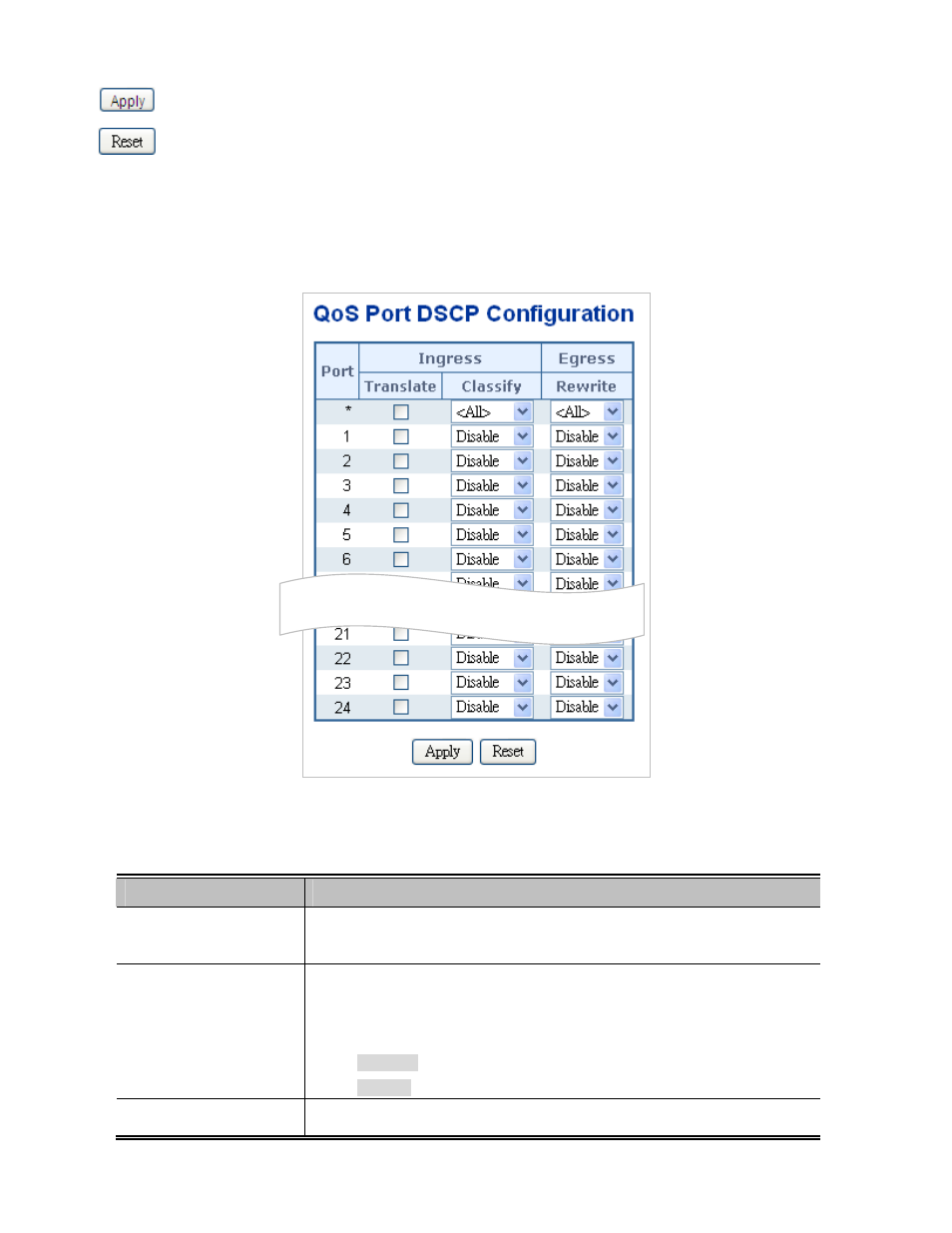

Figure 4-9-8:

QoS Port DSCP Configuration Page Screenshot


The Page includes the following fields:

Object

Description

Port

The Port coulmn shows the list of ports for which you can configure dscp ingress

and egress settings.

Ingress

In Ingress settings you can change ingress translation and classification settings

for individual ports.

There are two configuration parameters available in Ingress:

Translate

Classify

Translate

To Enable the Ingress Translation click the checkbox.
