306

4.12.7 Port Security Detail

This Page shows the MAC addresses secured by the Port Security module. Port Security is a module with no direct configuration.

Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port, the

port is set-up for software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port security

module, which in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be

set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one

chooses to block it, it will be blocked until that user module decides otherwise. The Port Security Detail screen in

Figure 4-12-7

appears.

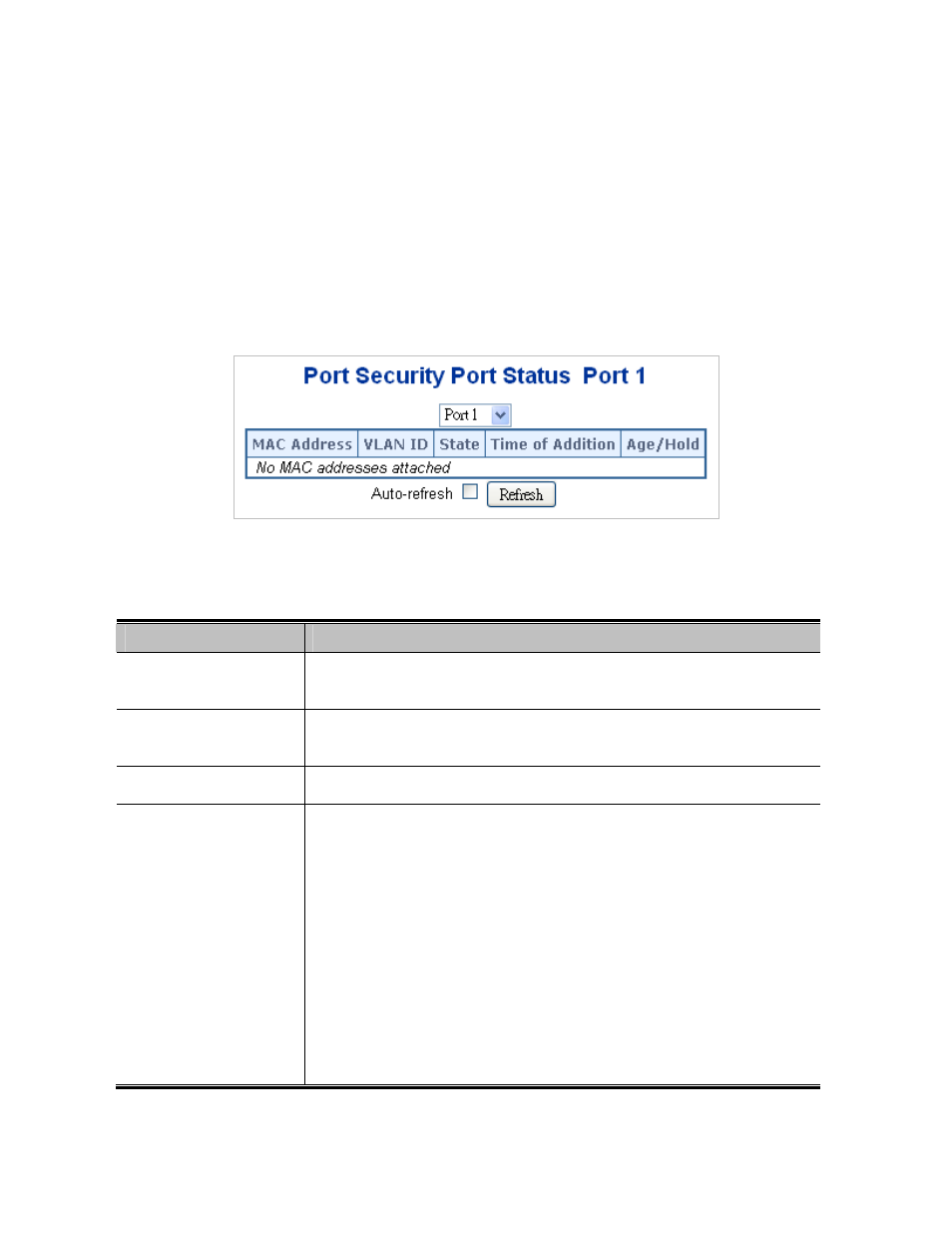

Figure 4-12-7:

Port Security Detail Screen Page Screenshot

The Page includes the following fields:

Object

Description

MAC Address & VLAN

ID

The MAC address and VLAN ID that is seen on this port. If no MAC addresses

are learned, a single row stating "No MAC addresses attached" is displayed.

State

Indicates whether the corresponding MAC address is blocked or forwarding. In

the blocked state, it will not be allowed to transmit or receive traffic.

Time of Addition

Shows the date and time when this MAC address was first seen on the port.

Age/Hold

If at least one user module has decided to block this MAC address, it will

stay in the blocked state until the hold time (measured in seconds) expires.

If all user modules have decided to allow this MAC address to forward, and

aging is enabled, the Port Security module will periodically check that this

MAC address still forwards traffic.

If the age period (measured in seconds) expires and no frames have been

seen, the MAC address will be removed from the MAC table. Otherwise a

new age period will begin.

If aging is disabled or a user module has decided to hold the MAC address

indefinitely, a dash (-) will be shown.
