The Page includes the following fields:

Object

Description

Port

The logical port for the settings contained in the same row.

Click on the port number in order to configure tag remarking.

For more detail, please refer to chapter 4.9.6.1.

Mode

Shows the tag remarking mode for this port.

Classified

: Use classified PCP/DEI values

Default

: Use default PCP/DEI values.

Mapped

: Use mapped versions of QoS class and DP level.

4.9.6.1 QoS Egress Port Tag Remarking

The QoS Egress Port Tag Remarking for a specific port are configured on this Page. The QoS Egress Port Tag Remarking sscreen

in

Figure 4-9-7

appears.

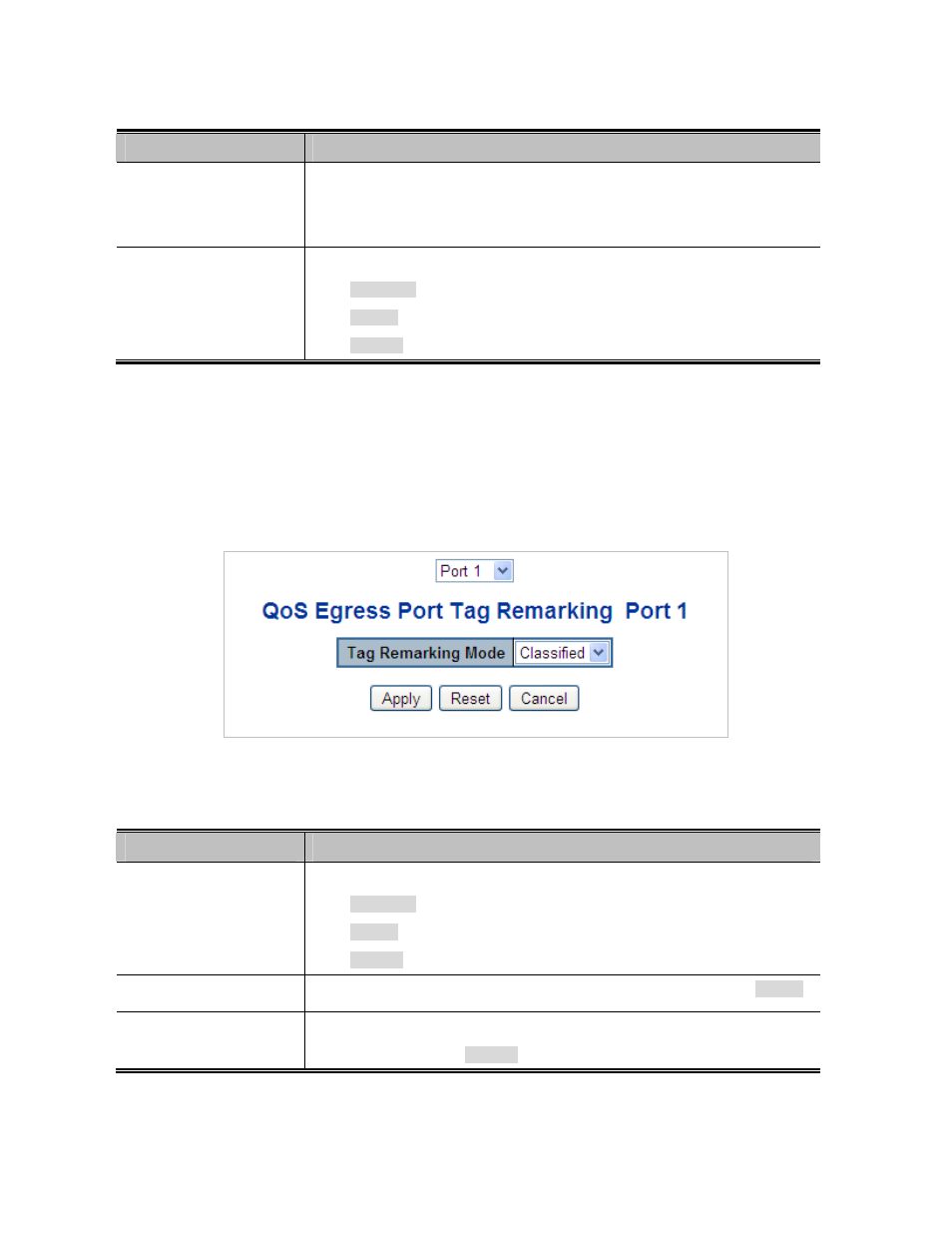

Figure 4-9-7:

QoS Egress Port Tag Remarking Page Screenshot

The Page includes the following fields:

Object

Description

Mode

Controls the tag remarking mode for this port.

Classified

: Use classified PCP/DEI values.

Default

: Use default PCP/DEI values.

Mapped

: Use mapped versions of QoS class and DP level.

PCP/DEI Configuration

Controls the default PCP and DEI values used when the mode is set to Default.

(QoS class, DP level)

to (PCP, DEI) Mapping

Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values

when the mode is set to Mapped.

Buttons
