Auto-negotiation

Capabilities

Auto-negotiation Capabilities

shows the link partners MAC/PHY capabilities.

Buttons

: Click to refresh the Page immediately.

Auto-refresh

:

Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.

4.14.5 Neighbor

This Page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an LLDP

neighbor is detected. The LLDP Neighbor Information screen in

Figure 4-14-4

appears.

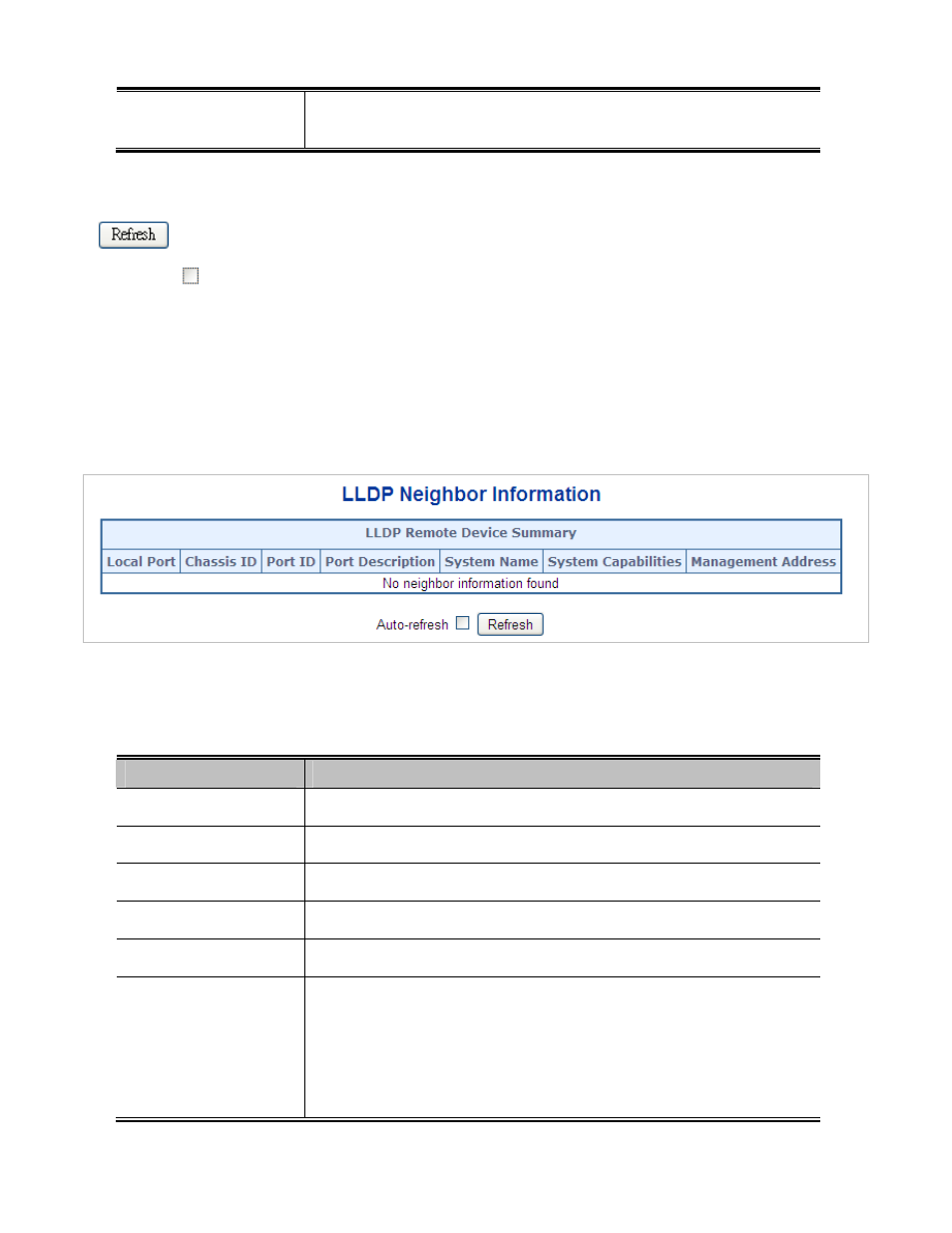

Figure 4-14-4:

LLDP Neighbor Information Page Screenshot

The Page includes the following fields:

Object

Description

Local Port

The port on which the LLDP frame was received.

Chassis ID

The Chassis ID is the identification of the neighbor's LLDP frames.

Port ID

The Port ID is the identification of the neighbor port.

Port Description

Port Description is the port description advertised by the neighbor unit.

System Name

System Name is the name advertised by the neighbor unit.

System Capabilities

System Capabilities describes the neighbor unit's capabilities. The possible

capabilities are:

1. Other

2. Repeater

3. Bridge
