This page provides you with how to configure PD Alive Check.The screen in Figure

4-16-9

appears.

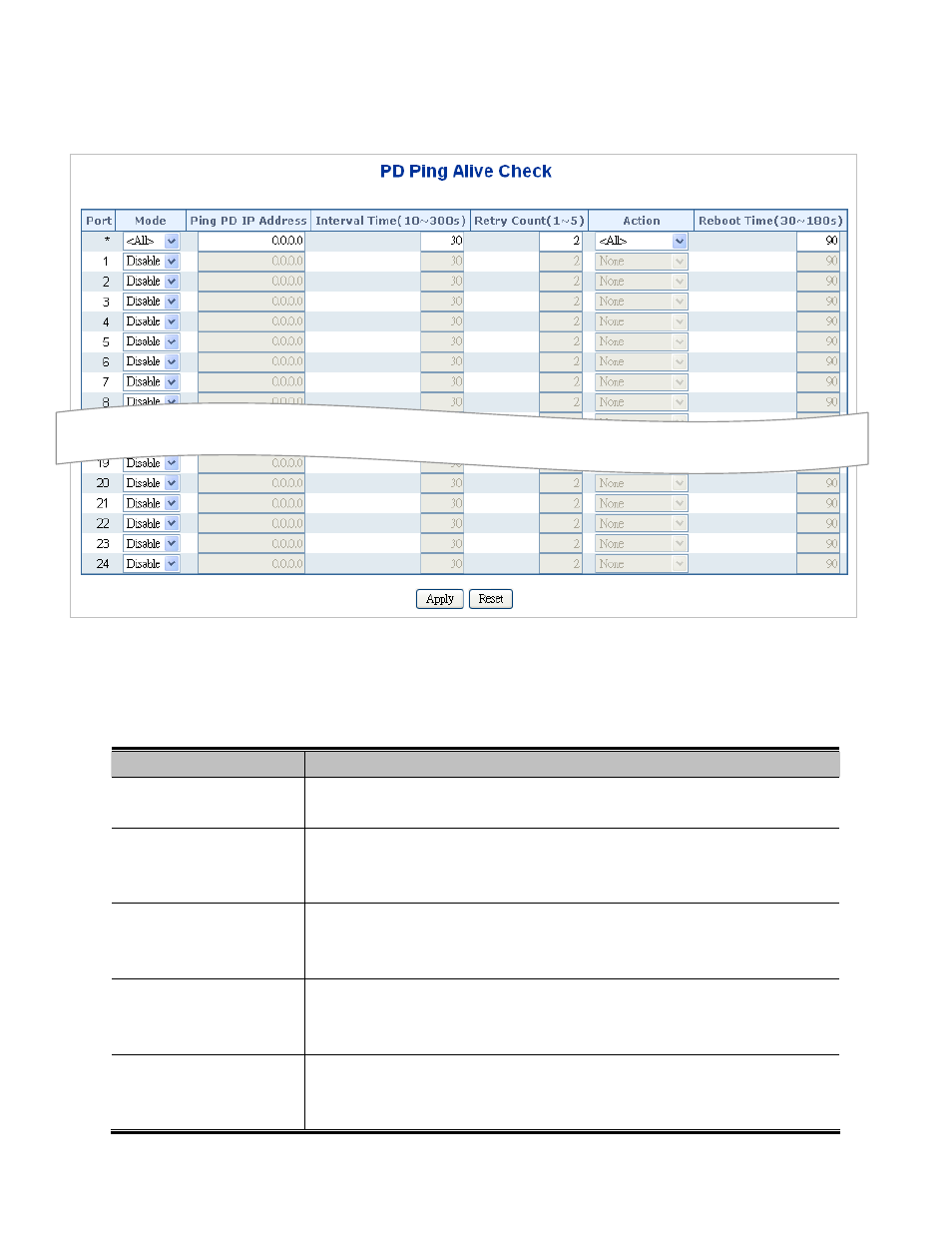

Figure 4-16-9:

PD Alive Check Configuration Screenshot

The page includes the following fields:

Object

Description

Mode

Allows user to enable or disable per port PD Alive Check function.

As default value all ports are disabled.

Ping PD IP Address

This coulumn allows user to set PoE device IP address here for system making ping

to the PoE device. Please be noticed that the PD’s IP address must be set to the

same network segment with PoE Switch.

Interval Time (10~300s)

This column allows user to set how long system should be issue a ping request to

PD for detecting PD is alive or dead.

Interval time range is from 10 seconds to 300 seconds.

Retry Count (1~5)

This column allows user to set how many times system rerry ping to PD.

For example, if we set count 2, the meaning is that if system retry ping to the PD and

the PD doesn’t response continuously, the PoE port will be reset.

Action

Allows user to set which action will be apply if the PD witout any response. NS3702

PoE Switch offers 3 actions as following.

PD Reboot:

It menas system will reset the PoE port that connected the PD.
