source ports. Subscribers cannot be directly connected to source ports.

Receiver

: Configure a port as a receiver port if it is a subscriber port and

should only receive multicast data. It does not receive data unless it

becomes a member of the multicast group by issuing IGMP/MLD messages.

Be Caution

: MVR source ports are not recommended to be overlapped with

management VLAN ports.

Select the port role by clicking the Role symbol to switch the setting.

I indicates Inactive; S indicates Source; R indicates Receiver

The default Role is Inactive.

Immediate Leave

Enable the fast leave on the port.

Buttons

: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click "Save"

: Click to apply changes

: Click to undo any changes made locally and revert to previously saved values.

4.8.17 MVR Status

This Page provides MVR status. The MVR Status screen in

Figure 4-8-20

appears.

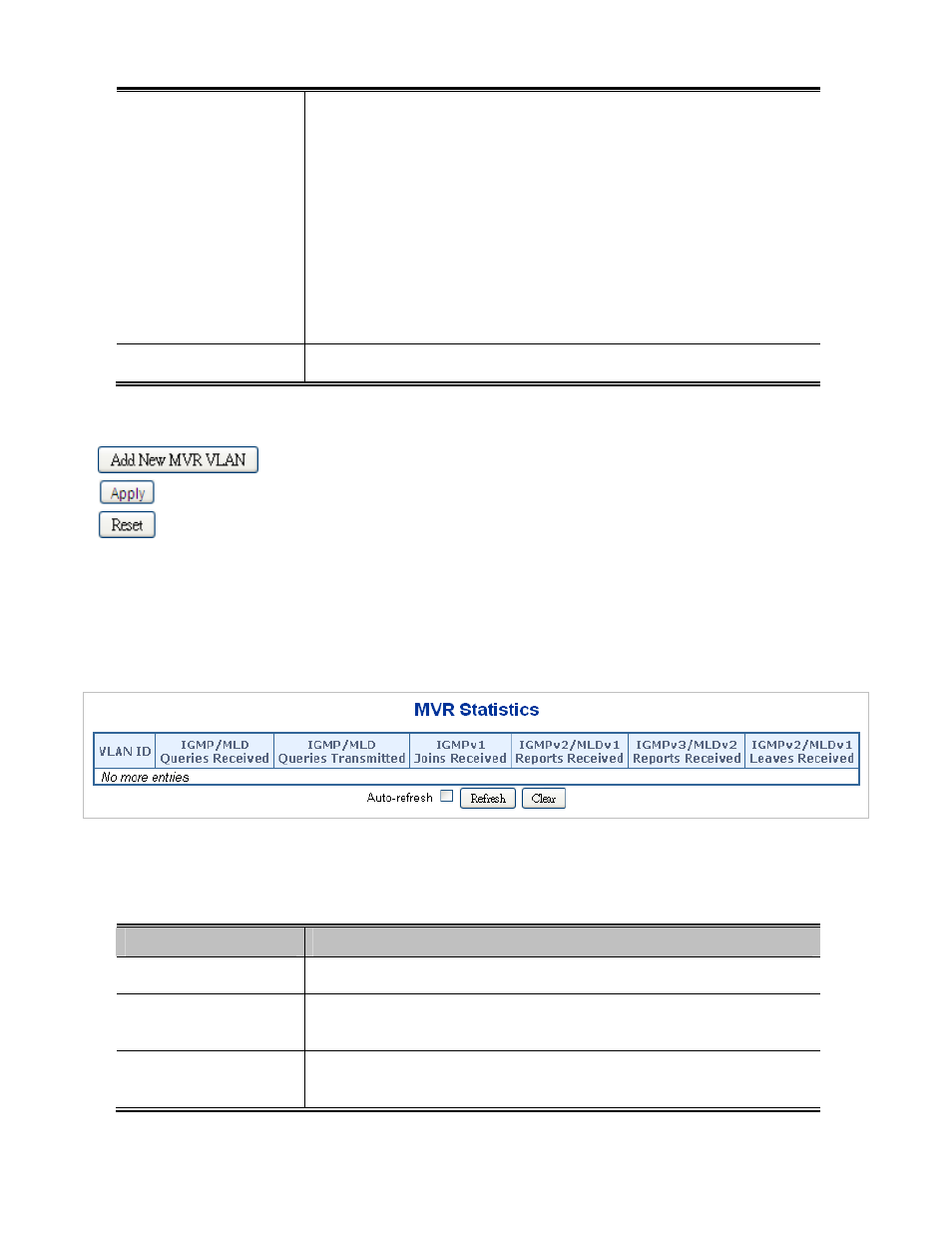

Figure 4-8-20:

MVR Status Page Screenshot

The Page includes the following fields:

Object

Description

VLAN ID

The Multicast VLAN ID.

IGMP/MLD Queries

Received

The number of Received Queries for IGMP and MLD, respectively.

IGMP/MLD Queries

Transmitted

The number of Transmitted Queries for IGMP and MLD, respectively.
