The Page includes the following fields:

Object

Description

Source MAC Address

The Source MAC address can be used to calculate the destination port for the

frame. Check to enable the use of the Source MAC address, or uncheck to

disable. By default, Source MAC Address is enabled.

Destination MAC

Address

The Destination MAC Address can be used to calculate the destination port for

the frame. Check to enable the use of the Destination MAC Address, or uncheck

to disable. By default, Destination MAC Address is disabled.

IP Address

The IP address can be used to calculate the destination port for the frame. Check

to enable the use of the IP Address, or uncheck to disable. By default, IP Address

is enabled.

TCP/UDP Port Number

The TCP/UDP port number can be used to calculate the destination port for the

frame. Check to enable the use of the TCP/UDP Port Number, or uncheck to

disable. By default, TCP/UDP Port Number is enabled.

Static Aggregation Group Configuration

The Aggregation Group Configuration screen in

Figure 4-5-3

appears.

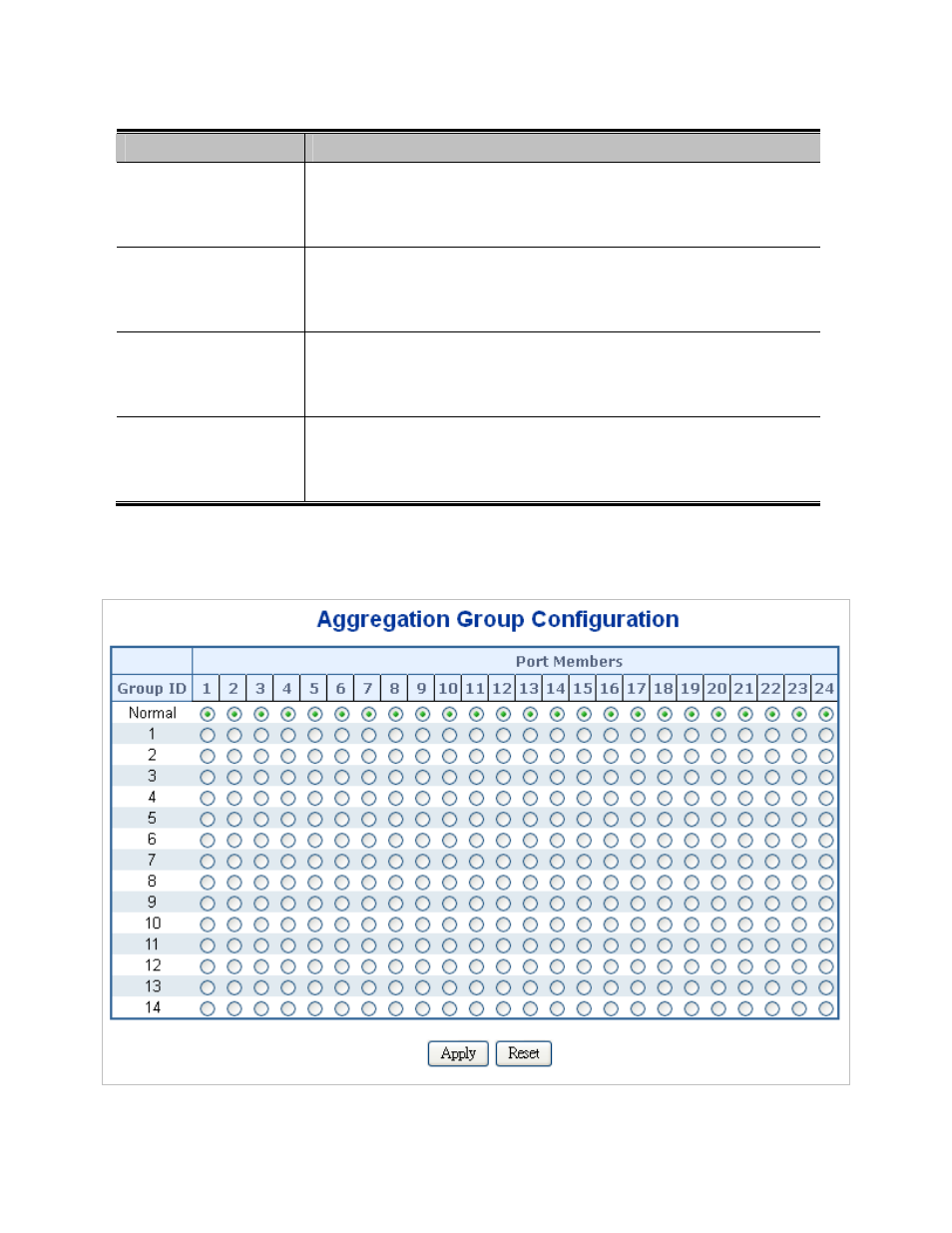

Figure 4-5-3:

Aggregation Group Configuration Page Screenshot
