Page 214

214
4.9.11.1 QoS Control Entry Configuration

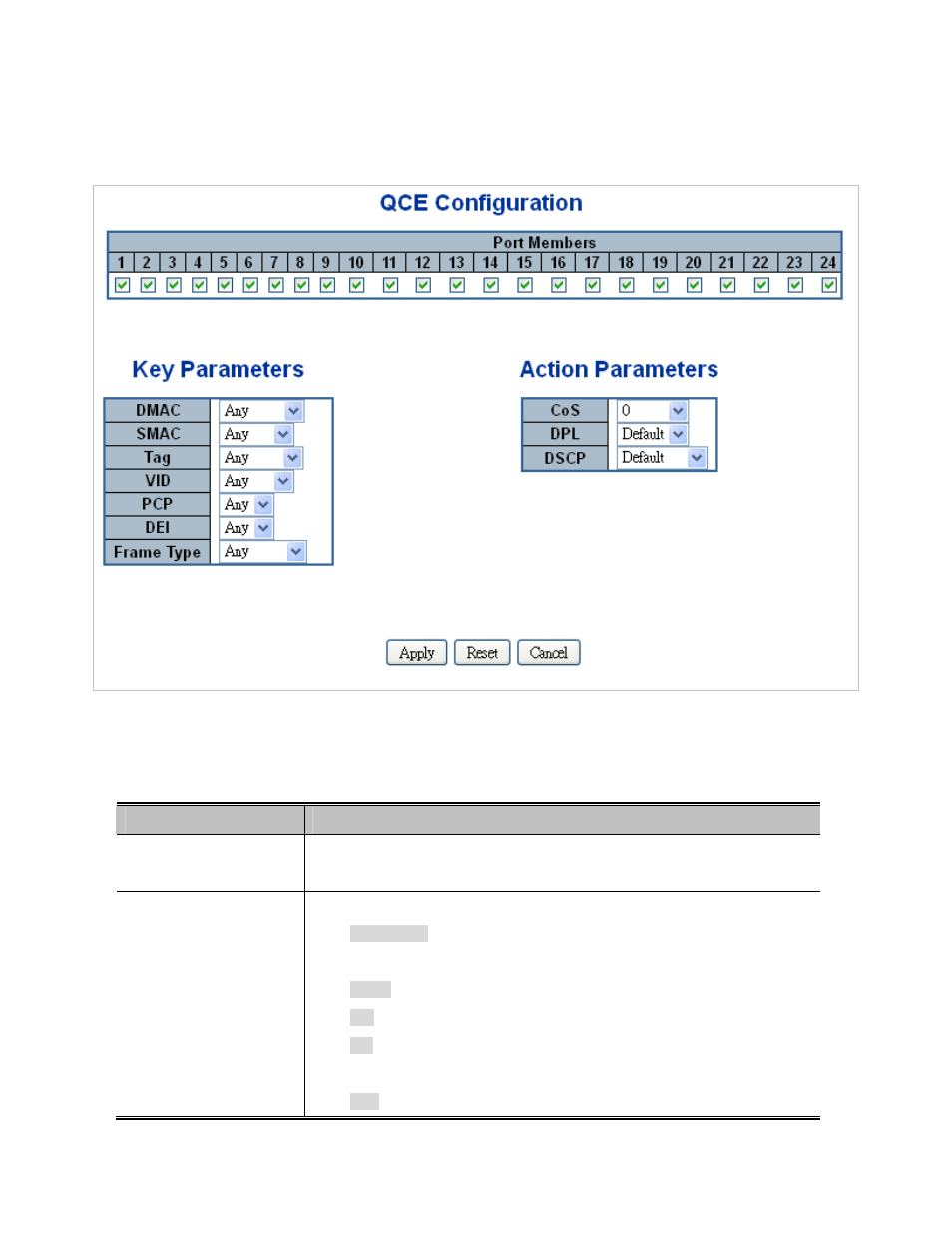

The QCE Configuration screen in
Figure 4-9-13
appears.
Figure 4-9-13:
QCE Configuration Page Screenshot
The Page includes the following fields:
Object
Description
Port Members
Check the checkbox button in case you what to make any port member of the
QCL entry. By default all ports will be checked
Key Parameters
Key configuration are discribed as below:
■
DMAC Type
Destination MAC type: possible values are unicast(UC),
multicast(MC), broadcast(BC) or 'Any'
■
SMAC
Source MAC address: 24 MS bits (OUI) or 'Any'
■
Tag
Value of Tag field can be 'Any', 'Untag' or 'Tag'
■
VID
Valid value of VLAN ID can be any value in the range 1-4095 or 'Any';
user can enter either a specific value or a range of VIDs
■
PCP
Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5, 6, 7)
