7.2 Initial commissioning
7 Commissioning
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
7-12

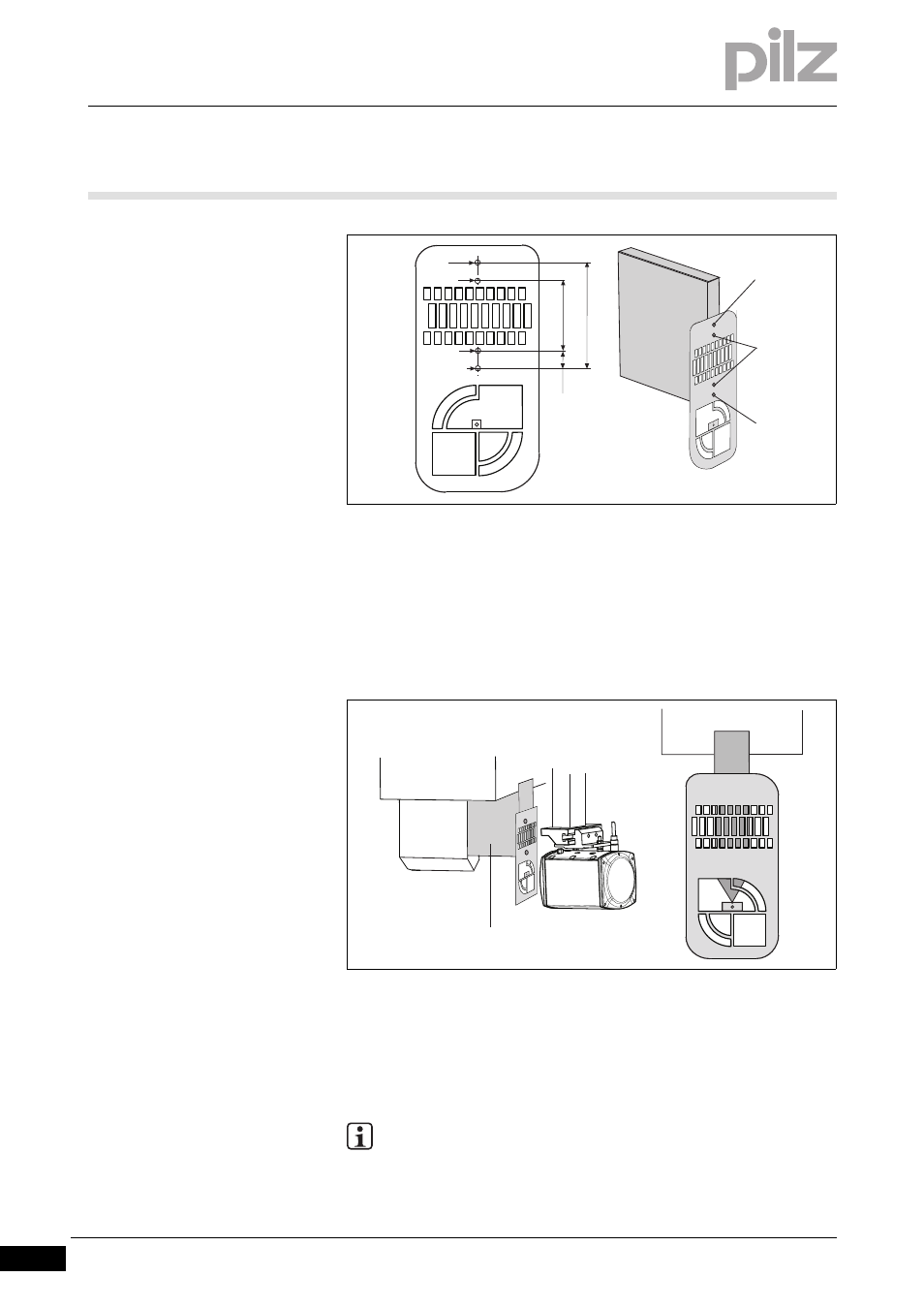

Fig. 7-11: Adjustment template to attach to bracket
 1: Ø 3 mm DIN 1472 half length taper-grooved dowel pin
 2: M3 x 10 cylinder head bolts
 3: Ø 3 mm DIN 1472 half length taper-grooved dowel pin
 Attach the bracket to the upper tool clamp.
Fig. 7-12: Adjustment template with bracket
 1: Bracket
INFORMATION
To align the transmitter and receiver, follow the same procedure
as outlined in the section entitled "Align transmitter and
receiver".
10
45 65
Ш 3
+0,1
Ш 3,4
Ш 3,4
Ш 3
+0,1
1
3
2
1
