4.7 System cycle
4 Function description
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
4-34

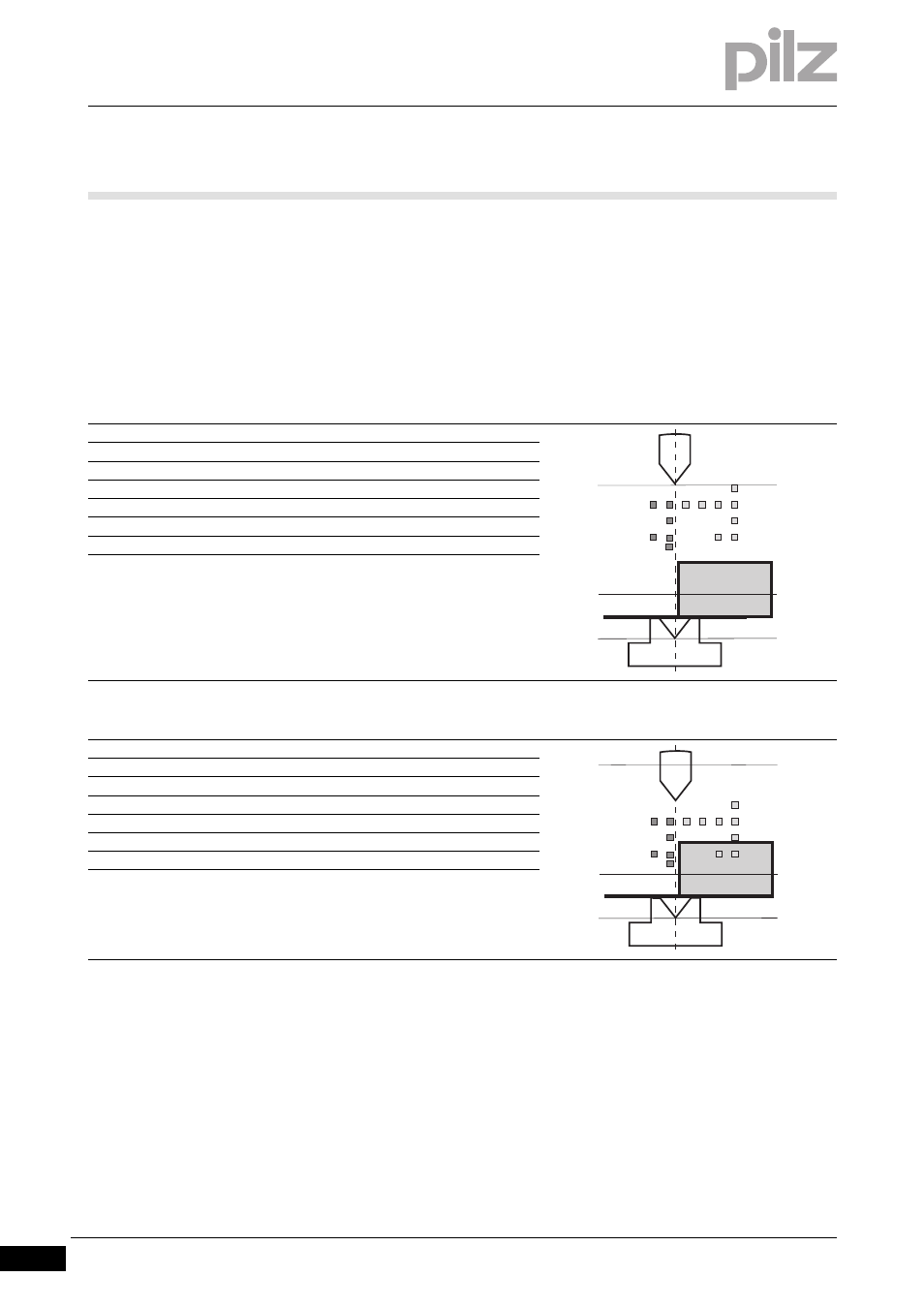

4.7.2 System cycle for box bending press stroke
System cycle for box bending press stroke 4- Funktion_Systemablauf_Pressenhub_Kastenbiegen_Muting
Inputs on the PSENvip receiver:
 Protected field mode 1 = 0
 Protected field mode 2 = 1
 Acknowledgement of reduced protected field = Press pushbutton
and then release
1
2
Status Press is at top dead centre
Foot switch 0
System-Init 1
OSSD 0
Protected field Free
Mute 1/2 0
Dynamic muting Inactive
Status Downward movement
Foot switch 1
System-Init 0
OSSD 1
Protected field Free
Mute 1/2 1
Dynamic muting Inactive
TDC v = 0
v > 0
