7.2 Initial commissioning
7 Commissioning
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
7-8
7.2.1.6 Align receiver
Align receiver 7- Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_1
 Attach an adjustment template with magnets to the upper tool. The tip
of the upper tool must sit in the notch on the stop of the adjustment
template.
Align the alignment grid of the adjustment template to the contour of
the upper tool.

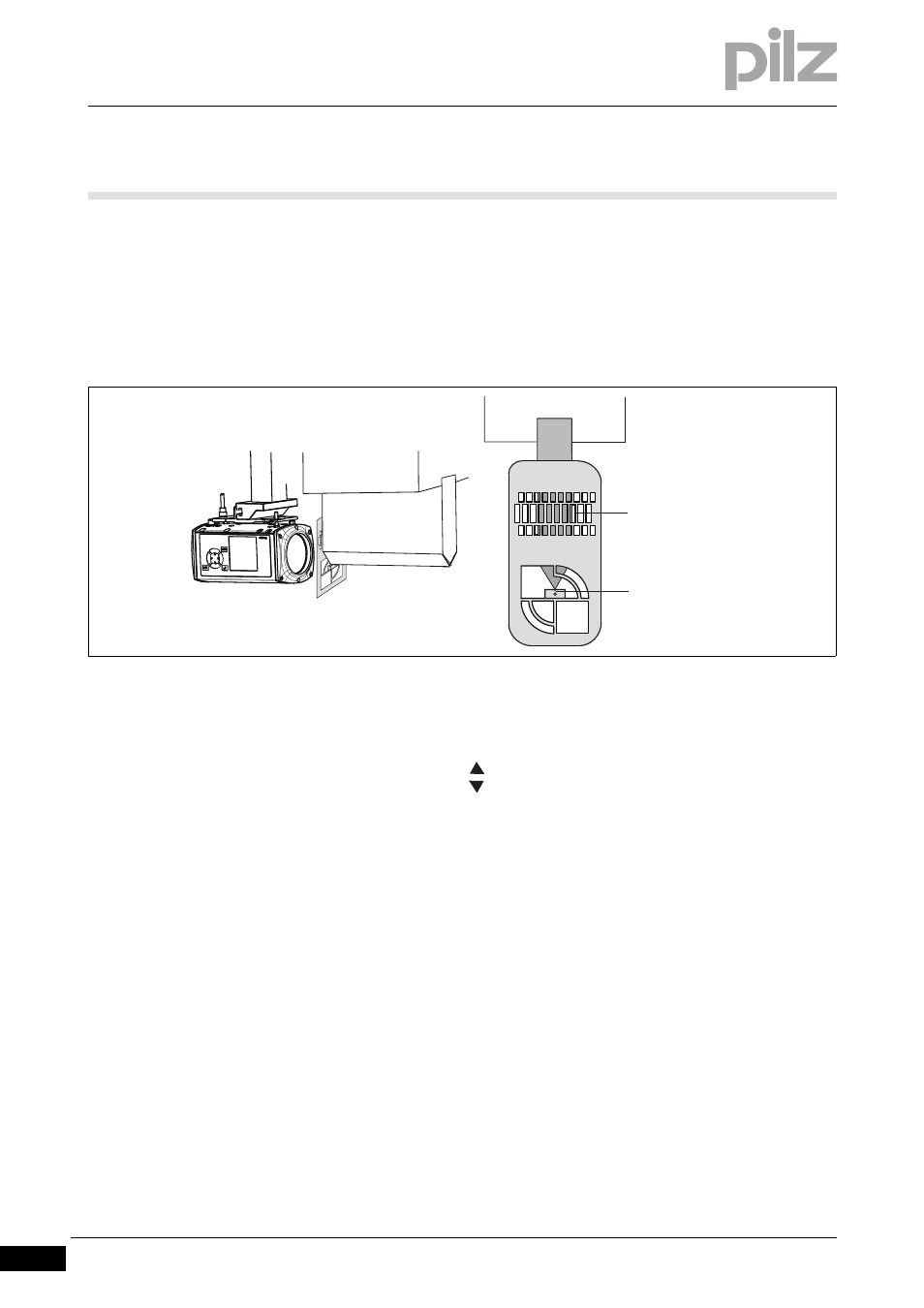

Fig. 7-6: Attach the adjustment template to the receiver
 Press the key.
 Using the keys , select the Adjustment option.
 Press the key to open the Adjustment option.
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_Justagebild_1
The adjustment image shown in the illustration below will appear on the
receiver display.
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_Justagebild_nicht_mittig_1
Please note that the bending line is approximately 7 mm to the left of the
centre of the display.
Align the
alignment grid
on the upper
tool
Centre point of
the upper tool
in the notch on
the back stop
