4.1 Overview
4 Function description
44000 Function description Function description 4- 4.1 Overview 4100 Overview 4- Funktion_Ueberblick_P_Variante
The PSENvip is a camera-based protection system for press brakes. It
consists of a transmitter and receiver, which are fixed to the moving part
of the press brake, the upper die. The detection zone between the trans-
mitter and receiver monitors the immediate danger zone below the mov-
ing upper tool.
The detection zone moves with the upper die, providing mobile safe-
guarding of the danger zone. If an object encroaches into the detection
zone, both output signal switching devices (OSSD1, OSSD2) on the
PSENvip will switch to the OFF-state. The safety system will use these
signals to initiate stopping of the press stroke.

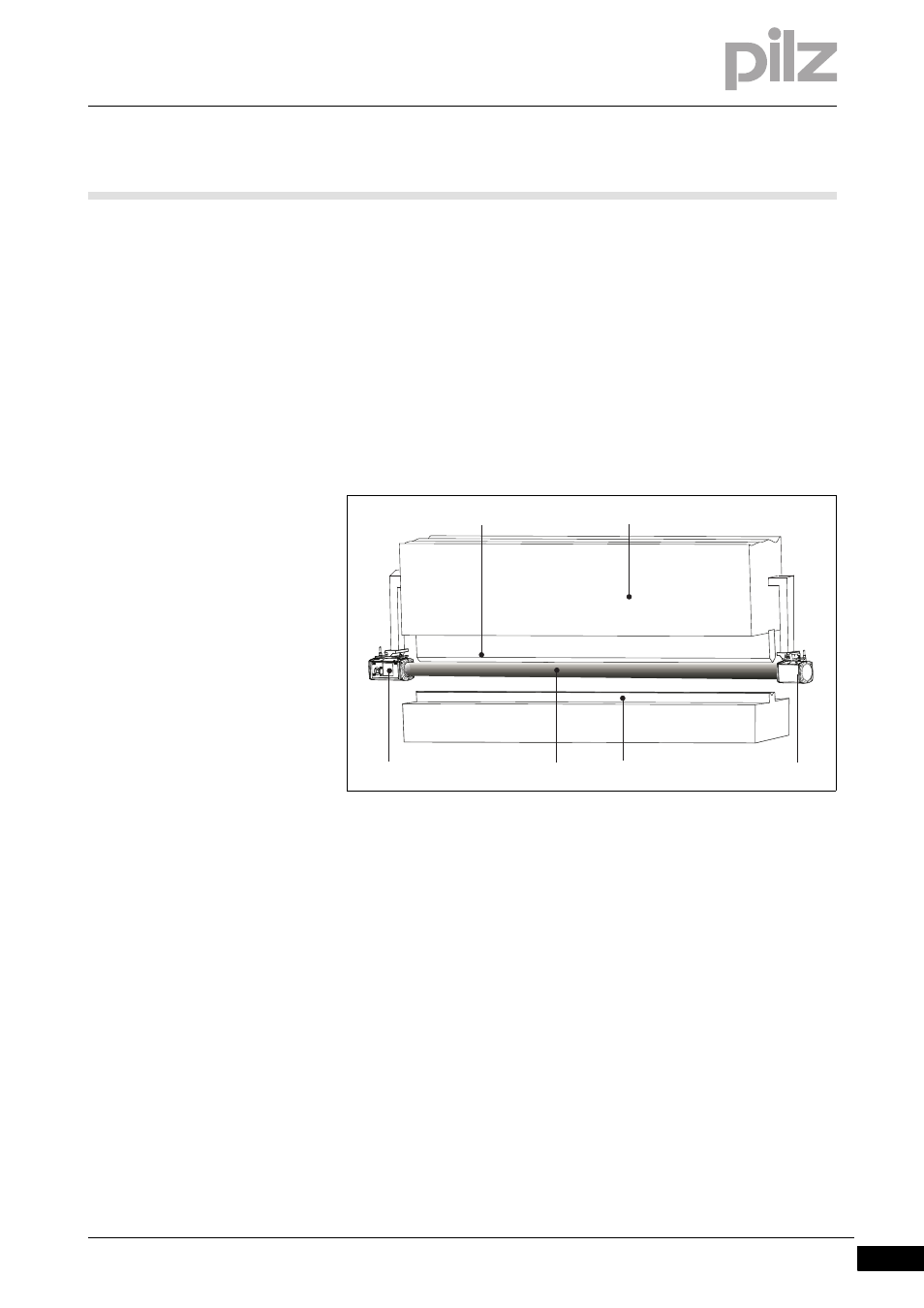

Fig. 4-1: Press brake with PSENvip
 1: Upper tool
 2: Upper die
 3: Receiver
 4: Detection zone
 5: Lower tool
 6: Transmitter
Funktion_Gesamtsystem_P_Variante
The PSENvip is part of an overall system comprising
 PSENvip transmitter and receiver
 Programmable safety system PSS 4000
 CNC controller
 Signals from incremental encoders for defining the position and
speed
 External operator elements or signals (foot switch, reset button for re-
duced protected field or setup mode, E-STOP pushbutton)
3
1 2
4 5 6
