4-9
4.2 Protected field
4 Function description

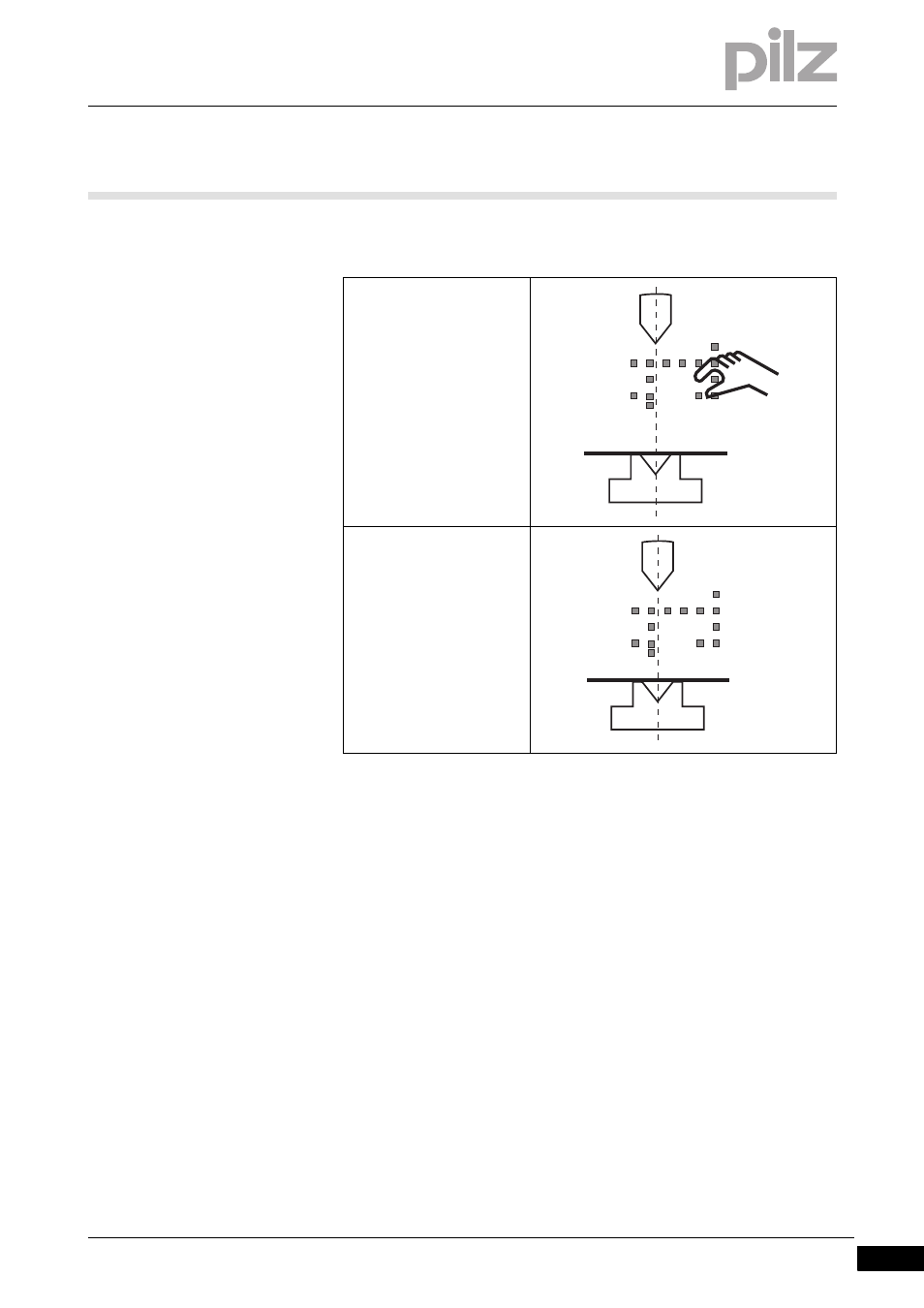

Side intervention with full protected field or reduced protected field
during the dynamic muting
1
Object interrupts the pro-
tected field to the side:
OSSD1/OSSD2= 1 -> 0
Mute1/Mute2 = 1
Safety system initiates the
stopping of the press stroke
2
Upper tool continues mov-
ing for the overrun distance.
Protected field interrupted
Object is removed Protect-
ed field cleared. Press
stroke can be resumed.
