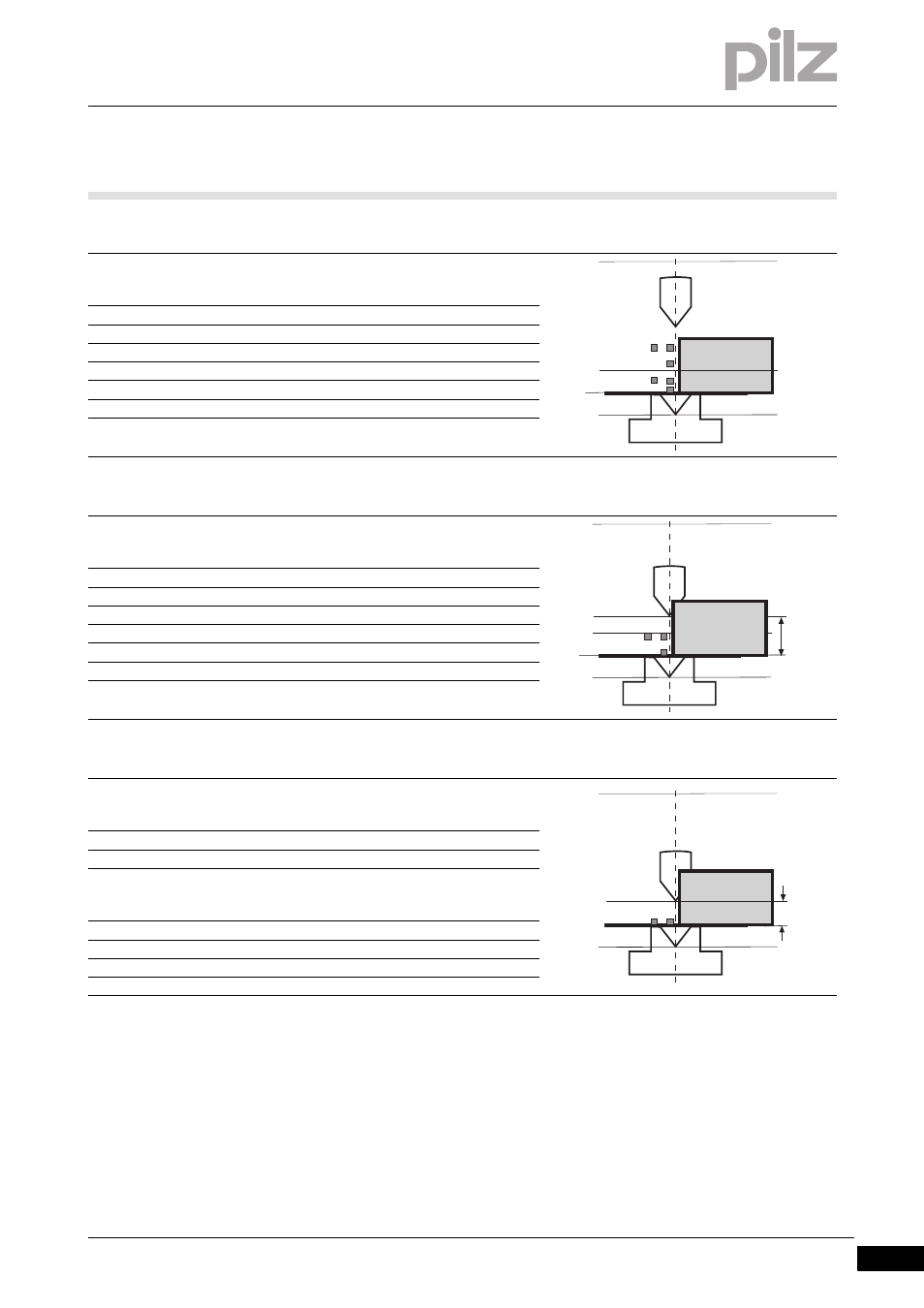

4.7 System cycle
4 Function description
3
4
5
Status Downward movement
Advance measuring field touches
plate (pinch point)
Foot switch 1
System-Init 0
OSSD 1
Protected field Free
Mute 1/2 1 -> 0
Dynamic muting Start
Status Downward movement
Tool centre point reaches the 8
mm point
Foot switch 1
System-Init 0
OSSD 1
Protected field Free
Mute 1/2 0
Dynamic muting Active
Status Downward movement
Tool centre point reaches the 6
mm point
Foot switch 1
System-Init 0
OSSD 1 -> 0
Muting of the OSSD in steps 5 to
8 in the safety system
Protected field Interrupted
Mute 1/2 0
Dynamic muting End
v > 0
KP
v > 0
KP
8 mm
v > 0
6 mm
6 mm
