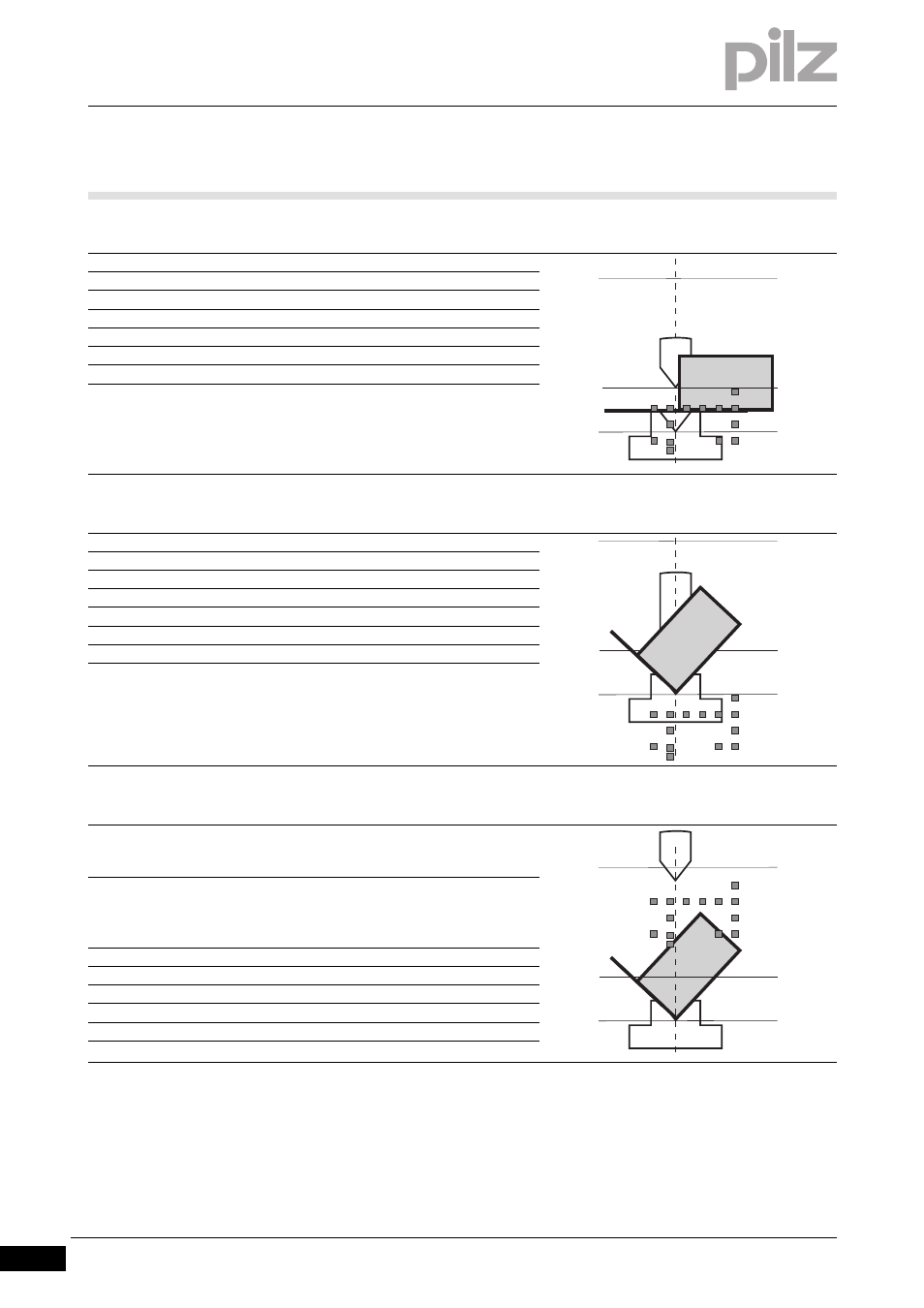

4.7 System cycle
4 Function description
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
4-36
6
7
8
Continue with step 1
Status Downward movement
Foot switch 1
System-Init 0
OSSD 0
Protected field Interrupted
Mute 1/2 0
Dynamic muting Inactive
Status Press is at bottom dead centre
Foot switch 1
System-Init 0
OSSD 0
Protected field Interrupted
Mute 1/2 0
Dynamic muting Inactive
Status Upward movement
Advance measuring field is
cleared
Foot switch 1
Generally, the press travels up
automatically, the operator can
release the foot switch.
System-Init 1
OSSD 1 or 0
Protected field Free or interrupted
Mute 1/2 0 - > 1
Dynamic muting Inactive
v > 0
6 mm
v = 0 BDC
v < 0
