4.7 System cycle
4 Function description
 v > 0 mm/s upward movement
 Mute 1/2: Segment switches outputs Mute 1 and Mute 2
4.7.1 System cycle for standard press stroke

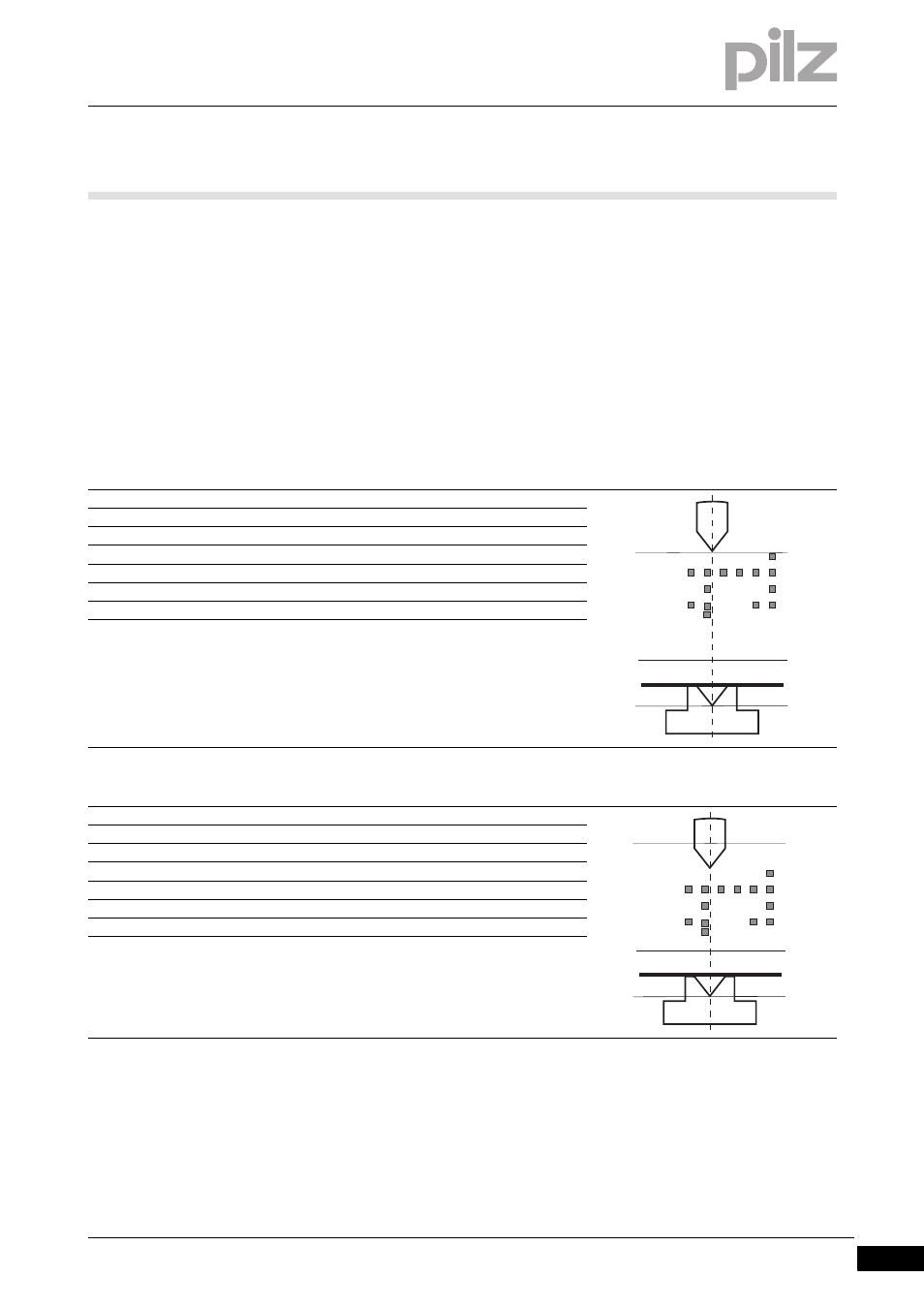

System cycle for standard press stroke 4- Funktion_Systemablauf_Pressenhub_Standard_Muting
Inputs on the PSENvip receiver:
 Protected field mode 1 = 0
 Protected field mode 2 = 0
 Power Off = 0
1
2
Status Press is at top dead centre
Foot switch 0
System-Init 1
OSSD 0
Protected field Free
Mute 1/2 0
Dynamic muting Inactive
Status Downward movement
Foot switch 1
System-Init 0
OSSD 1
Protected field Free
Mute 1/2 1
Dynamic muting Inactive
v = 0 TDC
v > 0
