8.2 Operating notes
8 Operation
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
8-2
8.2 Operating notes 8200 Operating notes 8- 8.2.1 Switch on PSENvip
Switch on PSENvip 8- Betrieb_PSENvip_einschalten
The PSENvip is ready for operation once supply voltage has been ap-
plied and the self test has been carried out.
 Switch on the supply voltage.
A self-test runs while the start screen is displayed on screen.
An error message will appear if an error is detected.

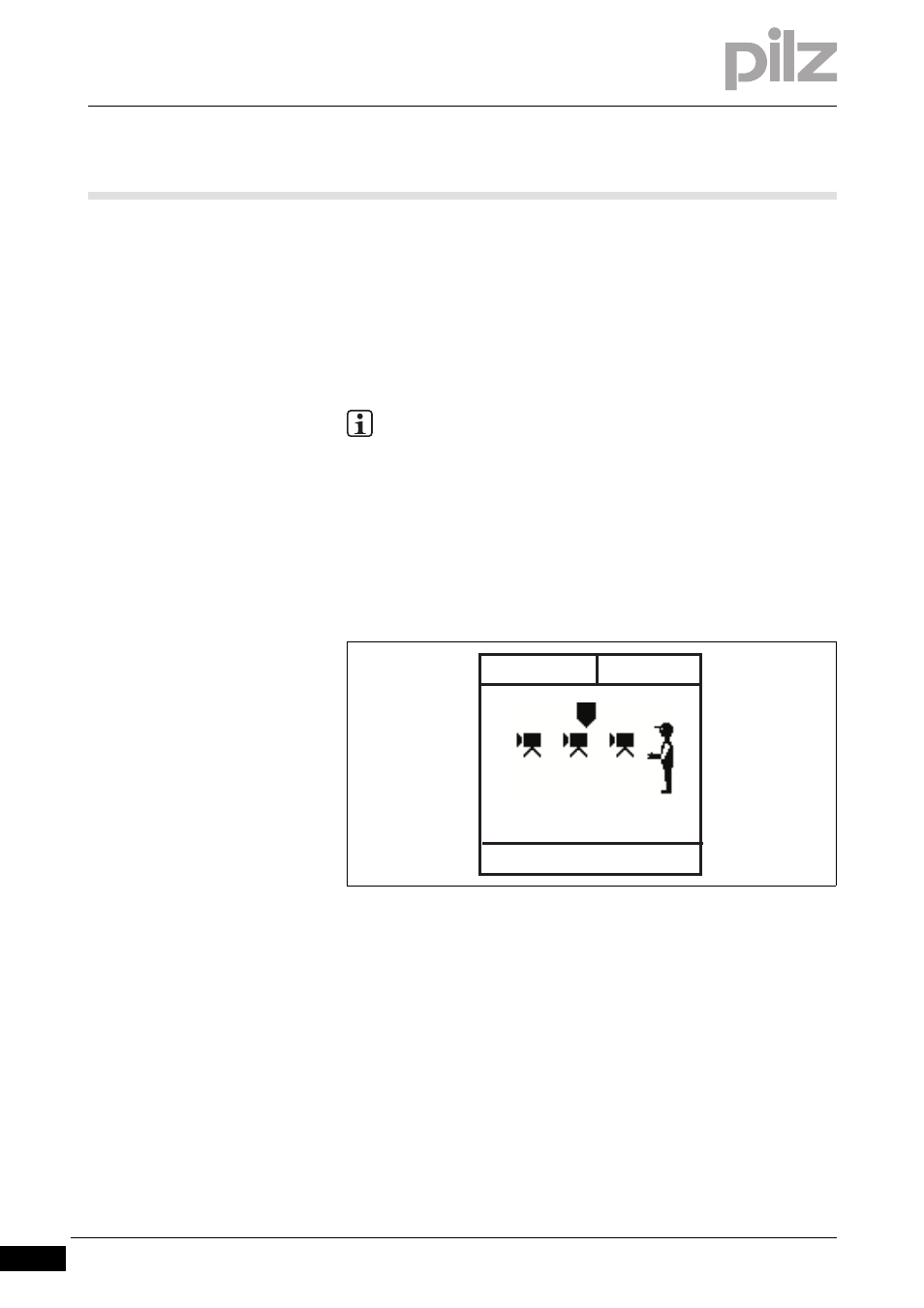

Fig. 8-1: Display after power-up
8.2.2 Muting lamp
Muting lamp 8- Betrieb_Mutinglampe
Muting lamps warn of residual hazards associated with the safeguard.
8.2.3 Initial press stroke
Initial press stroke 8- Betrieb_Erster_Pressenhub
When the initial press stroke occurs after the machine is switched on, a
function test must be carried out on the PSENvip, using the test piece.
 Set standard protected field mode.
INFORMATION
Information on the error that has occurred and how to rectify it
can be found in the chapter entitled "Diagnostics and Trouble-
shooting".
Rectify the error.
If no error has been detected, the display will show the status of
the OSSD and the protected field mode that is currently
selected, which is standard in the example.
SYSTEM OK OSSD ON
NORMAL OPERATION
