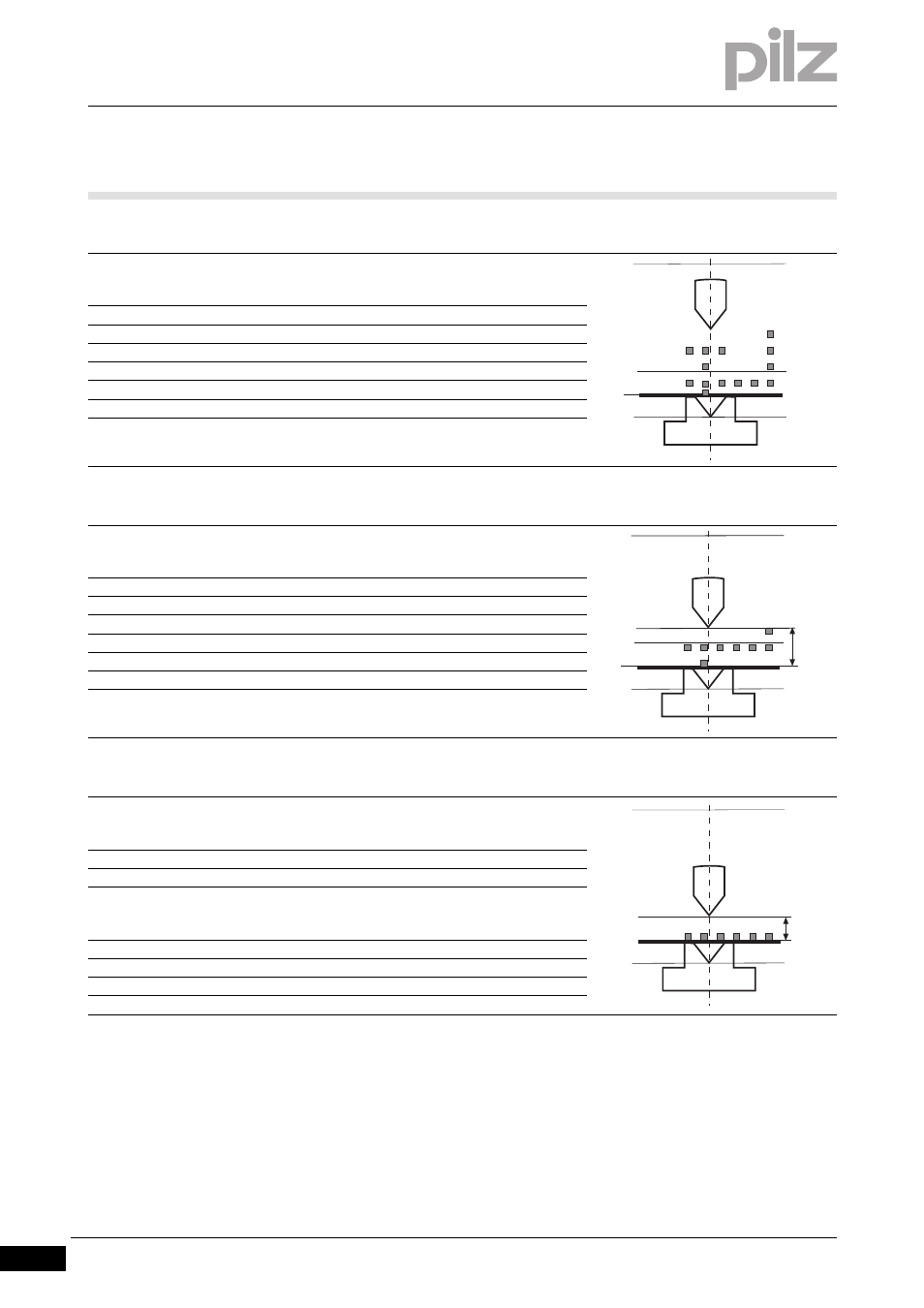

4.7 System cycle
4 Function description
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
4-32
3
4
5
Status Downward movement
Advance measuring field touches
plate (pinch point)
Foot switch 1
System-Init 0
OSSD 1
Protected field Free
Mute 1/2 1 -> 0
Dynamic muting Start
Status Downward movement
Tool centre point reaches the 8 mm
point
Foot switch 1
System-Init 0
OSSD 1
Protected field Free
Mute 1/2 0
Dynamic muting Active
Status Downward movement
Tool centre point reaches the 6 mm
point
Foot switch 1
System-Init 0
OSSD 1 -> 0
Muting of the OSSD in steps 5 to 8 in
the safety system
Protected field Interrupted
Mute 1/2 0
Dynamic muting End
v > 0
KP
v > 0
KP
8 mm
v > 0
6 mm
6 mm
