4.4 Description of the units
4 Function description
4.4 Description of the units 4400 Description of the units 4- 4.4.1 Overview
Overview 4- Funktion_Geraete_Sender_Empfaenger
The transmitter and receiver form one unit. The receiver contains all the
inputs and outputs required for communication with the CNC controller,
programmable safety system, transmitter and press brake. The trans-
mitter merely contains the inputs for controlling the light source.
Funktion_Geraete_Sender_Empfaenger_RL_D

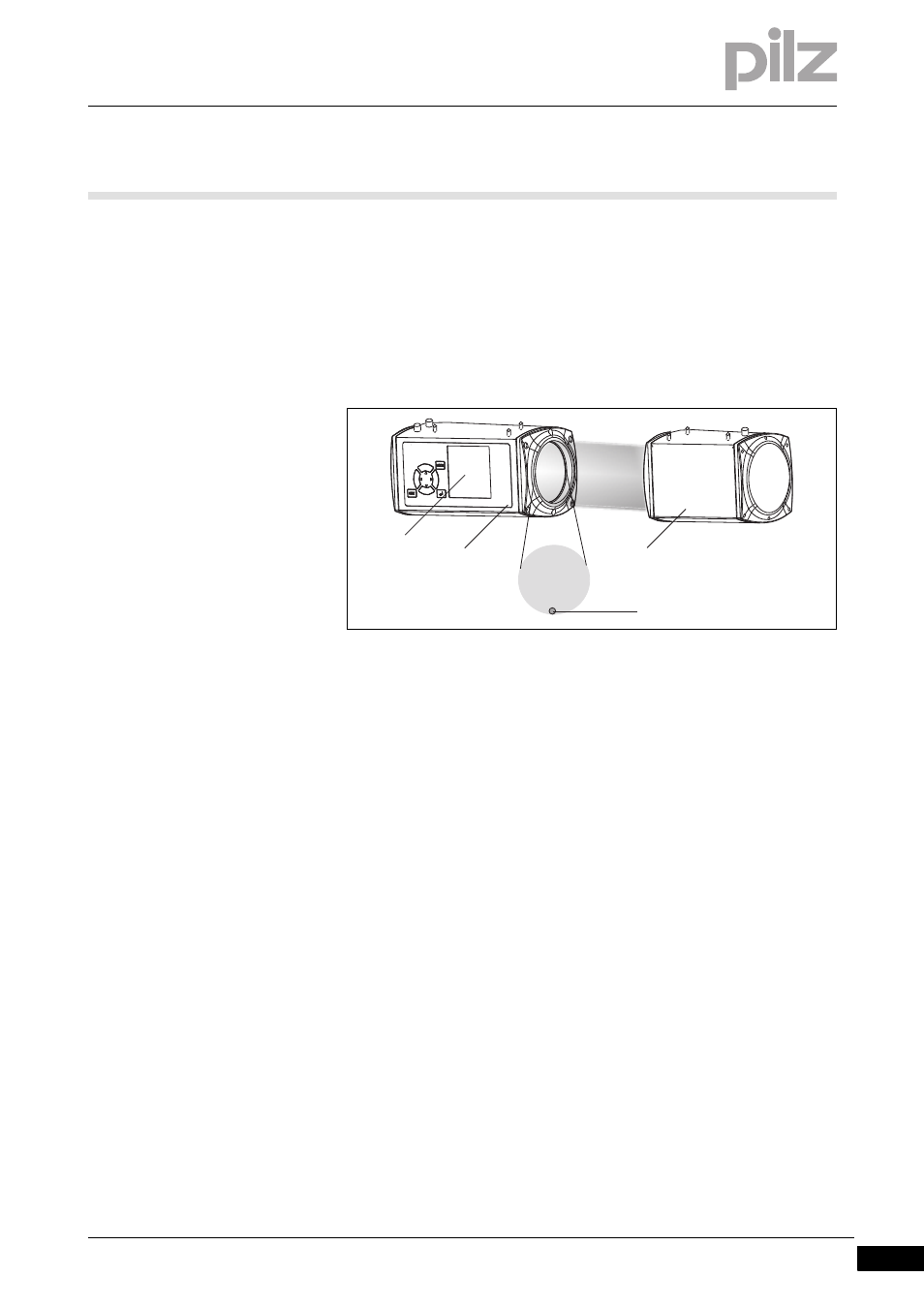

Fig. 4-7: Transmitter and receiver
 1: Display
 2: Receiver
 3: LED: OSSD status
 4: Transmitter
4.4.2 Transmitter
Transmitter 4- Funktion_Geraete_Sender_Stecker
The top of the transmitter has a 4-pin M12 connector.
4.4.2.1 Inputs
Inputs 4- Funktion_Geraete_Sender_Eingang_TRM_ON_TRM_SYNC
The receiver uses these standard inputs to control the transmitter's light
source. The user cannot influence these internal signals.
 TRM_ON
The receiver uses this signal to switch the transmitter's light source
on and off.
 TRM_SYNC
The receiver uses this signal to control the intensity of the transmit-
ter's light source.
1
2
3
4
