7.2 Initial commissioning
7 Commissioning
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
7-10
 Adjust the direction of the receiver as described in the section entitled
"Adjustment directions of transmitter and receiver".
 Remove the adjustment templates.

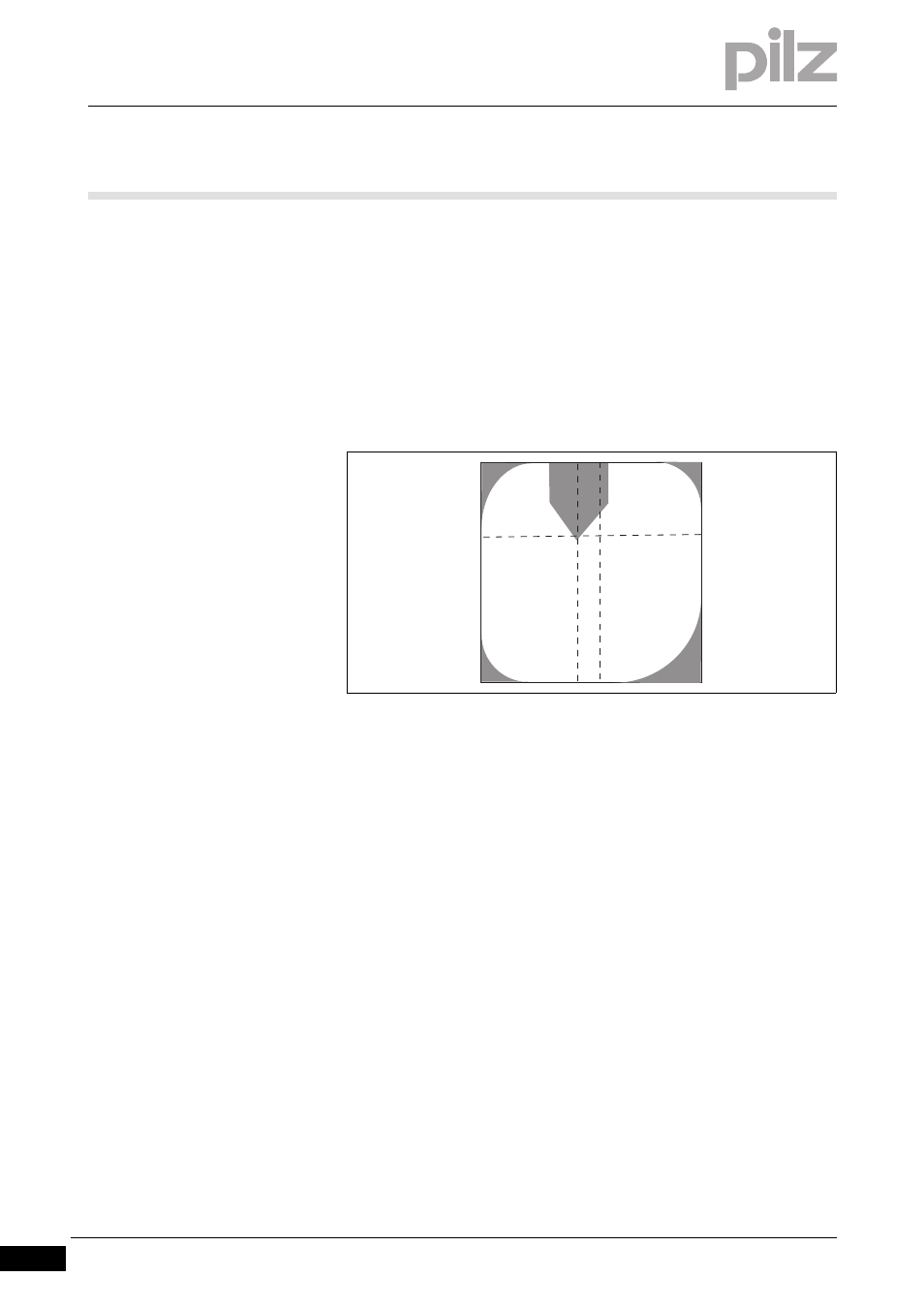

The correct adjustment image on the display will look like the image
shown in the illustration below:
 The bending line should be on the vertical guide.
 The tool centre point should be aligned with the horizontal guide (the
horizontal guide is firmly in the middle of the range bar (see section
entitled "Make adjustment during tool change").
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_3_nicht_mittig
Fig. 7-9: Correct adjustment image
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_4  Select .
A guide frame appears on the display. Apart from the areas around the
tool centre point, the guide frame should be clear of objects. The follow-
ing diagram illustrates a valid and an an invalid adjustment image.
In the case of an invalid adjustment (right-hand diagram), the Out of ran-
ge
message will also appear.
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_5_nicht_mittig
