4.5 Protected field modes
4 Function description
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
4-24
4.5 Protected field modes 4500 Protected field modes 4- Funktion_Schutzfeldmodus
Four protected field modes are available for adapting to different bend-
ing functions:
 Full protected field: Standard press stroke
 Reduced protected field:
– Box bending press stroke
– Back gauge press stroke
– Box bending with back gauge press stroke
Funktion_Schutzfeldmodus_Werkzeugklasse
Use of the protected field modes depends on the tool class. Not all pro-
tected field modes can be selected with tool class 2 and 3.
4.5.1 Standard protected field mode
Standard protected field mode 4- Funktion_Schutzfeldmodus_Standard
The full protected field is available with standard protected field mode.
This protected field mode is applied for flat workpieces.

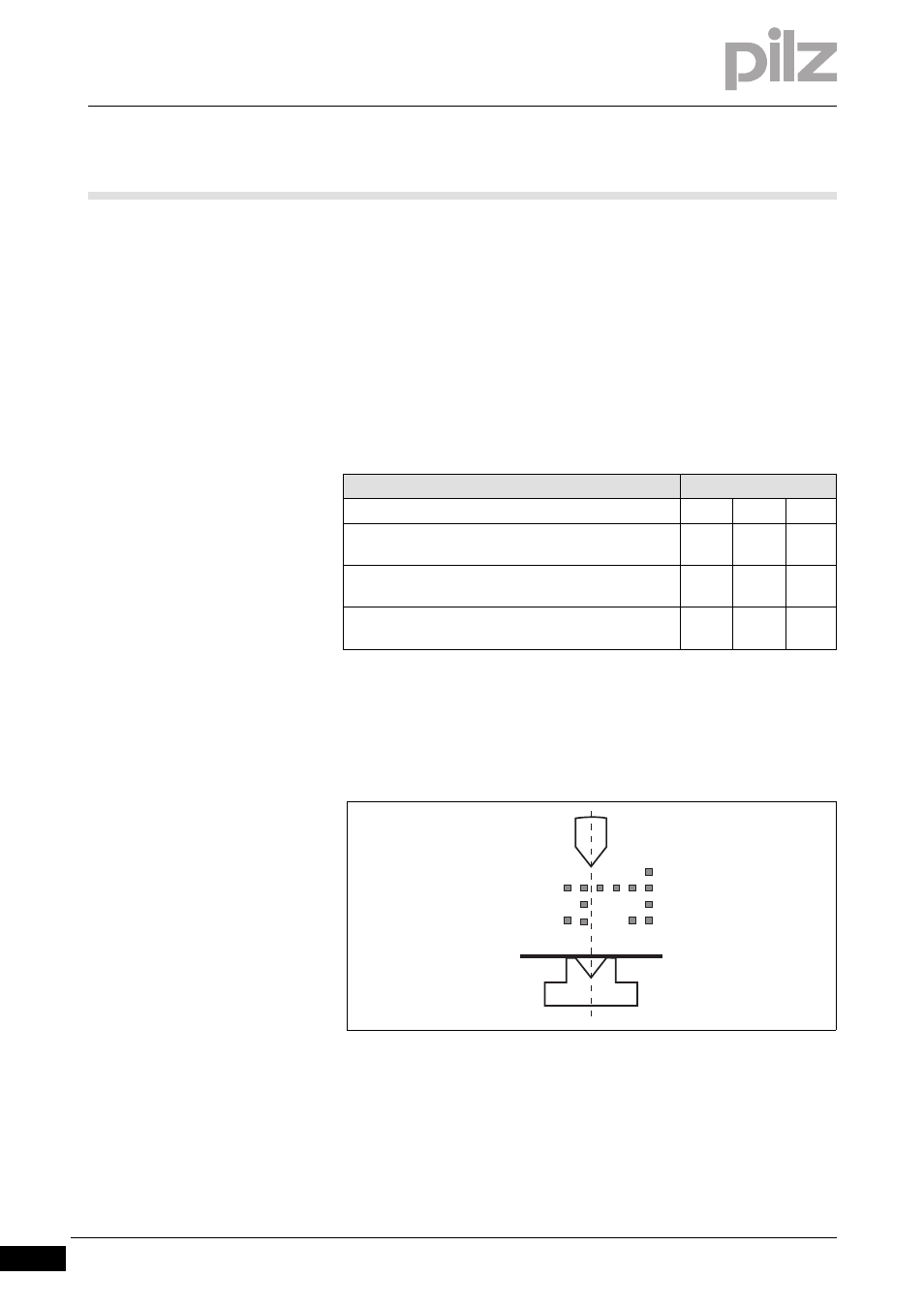

Fig. 4-13: Standard protected field mode
Protected field mode Tool class
1 2 3
Standard
Full protected field Yes Yes Yes
Box bending
Front segments blanked Yes Yes No
Back gauge
Rear segments blanked Yes No No
