7.5 Check protective equipment
7 Commissioning
7.5 Check protective equipment 7500 Check protective equipment 7- Inbetriebnahme_Schutzeinrichtung_pruefen
Tests are used for early identification of defects on the press brake and
its safeguards. They help to maintain a safe, working condition, i.e. to
prevent accidents.
The test of the protective equipment consists of:
 A function test using the test piece
and
 a visual inspection
Sicherheit_Warnung_Abkantpresse_stilllegen
7.5.1 Function test of the safety device
Function test of the safety device 7- Inbetriebnahme_Schutzeinrichtung_pruefen_Funjktionspruefung
A test piece in accordance with Annex H of EN 12622 is used for the
function test.

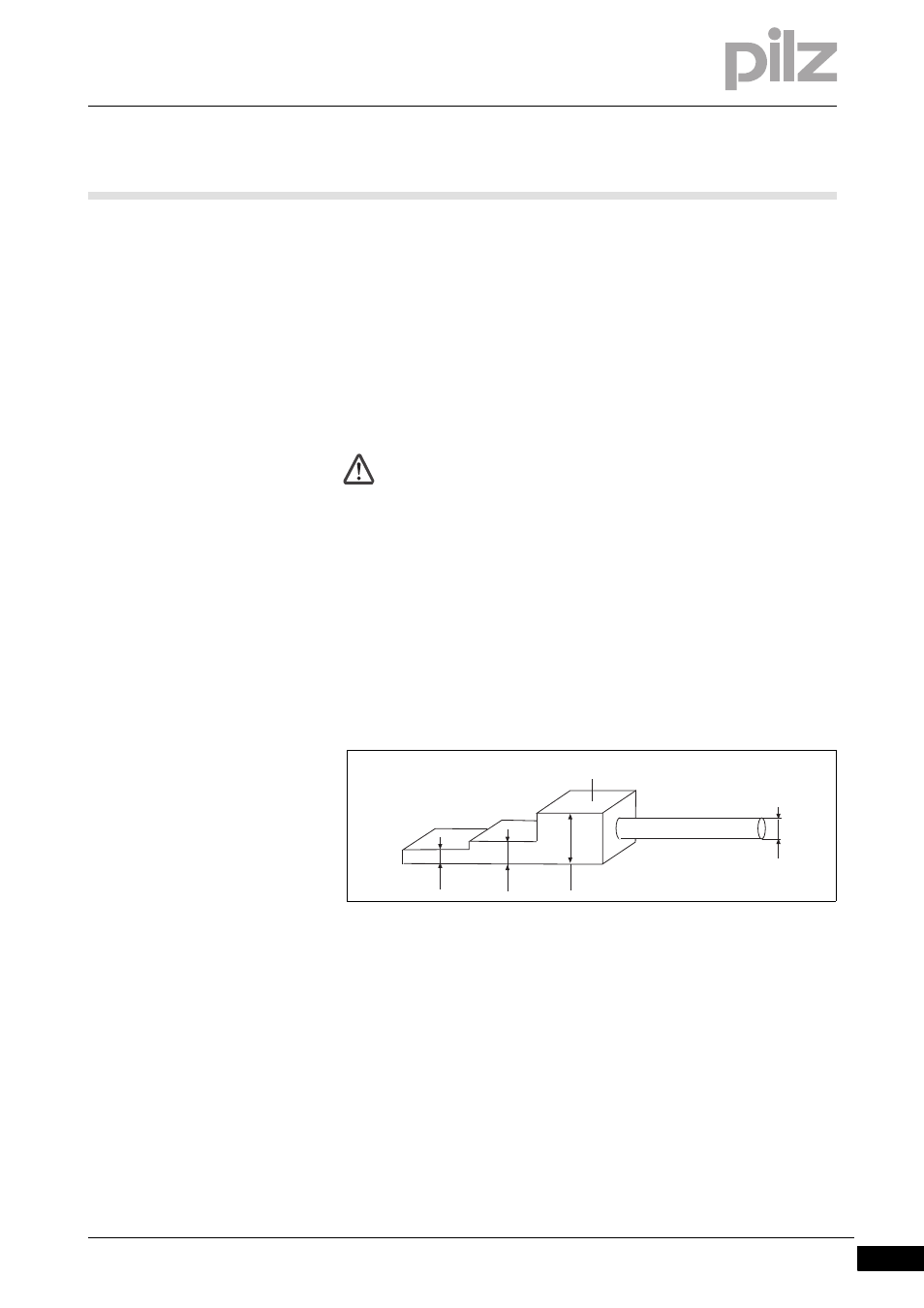

Fig. 7-20: Test piece in accordance with EN 12622
The function test on the protective equipment using the test piece in-
volves:
 The detection of objects
 Overrun measurement
WARNING!
The press brake must be shut down immediately if the test
reveals a fault!
Failure to comply could result in a hazardous situation, which
could lead to serious injury and death.
In this case, have the safety equipment checked by qualified
staff.
1015 35
Ø 14
50 x 50
