NIBP view 2
displays the MAP calculation as the primary content and the SYS/DIA
as secondary content.
Buttons

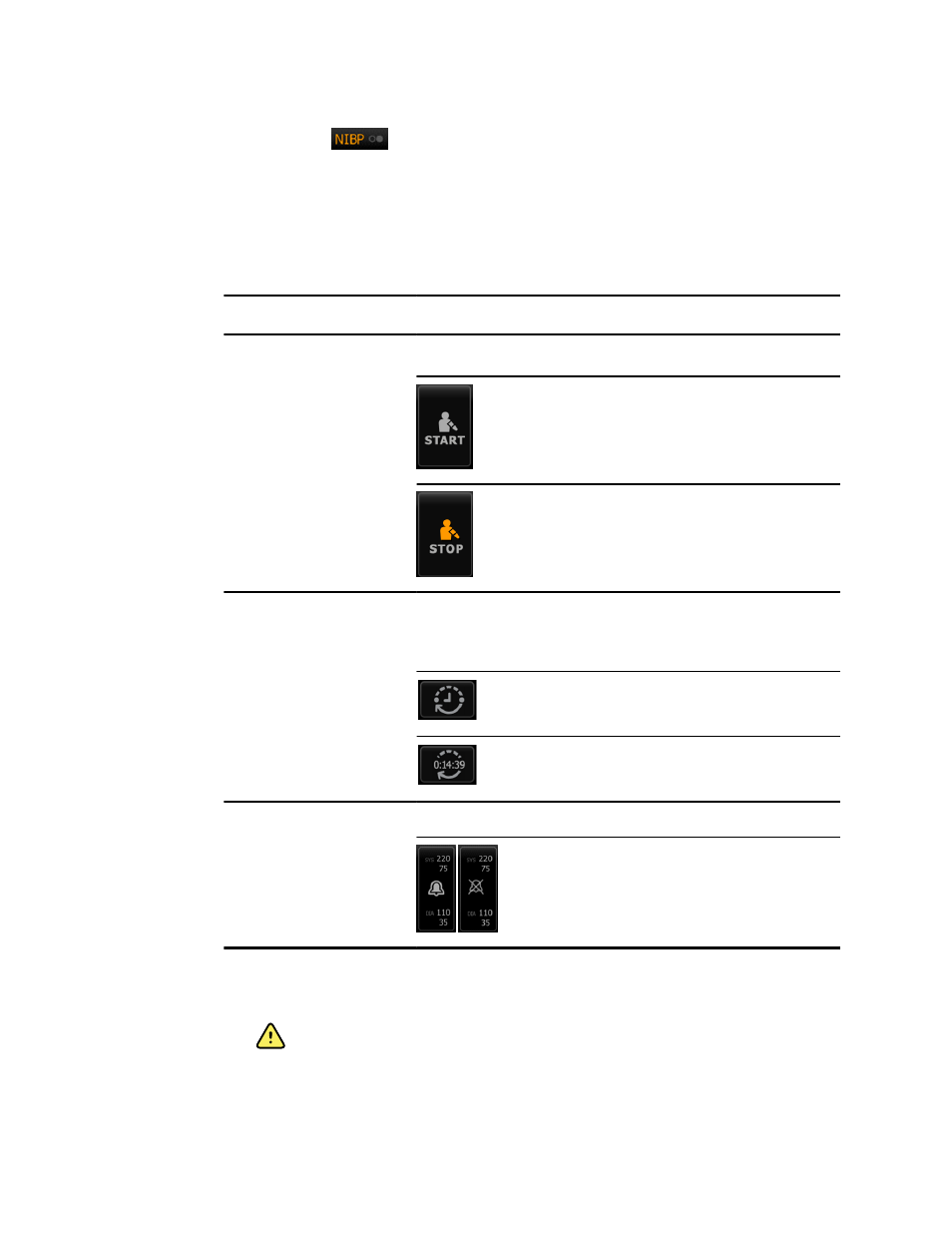

The buttons on the right side of the frame enable you to do different tasks depending on the profile
you are using. The availability of functions depends on which profile is selected. See the Profiles
section for more information.
Button name
Button image
Description
Start/Stop
The appearance and function of this button dynamically changes.
Touch to start a manual measurement or a cycle
of automatic measurements.
Touch to stop a measurement that is in progress.
Interval
This button shows the status of automatic measurements.
Touch the button to display the Intervals tab, where you can configure
automatic measurements.
Automatic measurements are off.
Automatic measurements are on.
Alarm Limit control
This button displays alarm limits and status.
Touch the button to display the Alarms tab.
Select a cuff
WARNING Use only blood pressure cuffs and hoses listed as approved
accessories to ensure safe and accurate NIBP measurements.
