Patient monitoring, Nibp, Noninvasive blood pressure (nibp) frame – Welch Allyn Connex Integrated Wall System - User Manual User Manual
Page 75: Nibp frame in monitor profile, Nibp frame in spot check and triage profiles, Nibp measurement display, View indicator

Patient monitoring
NIBP
Noninvasive Blood Pressure (NIBP) frame
From the NIBP frame, you can measure blood pressure.
Located in the upper left corner of the Home tab, the NIBP frame contains data and features
relevant to noninvasive blood pressure measurement. The frame provides different features based
on the profile you are using.

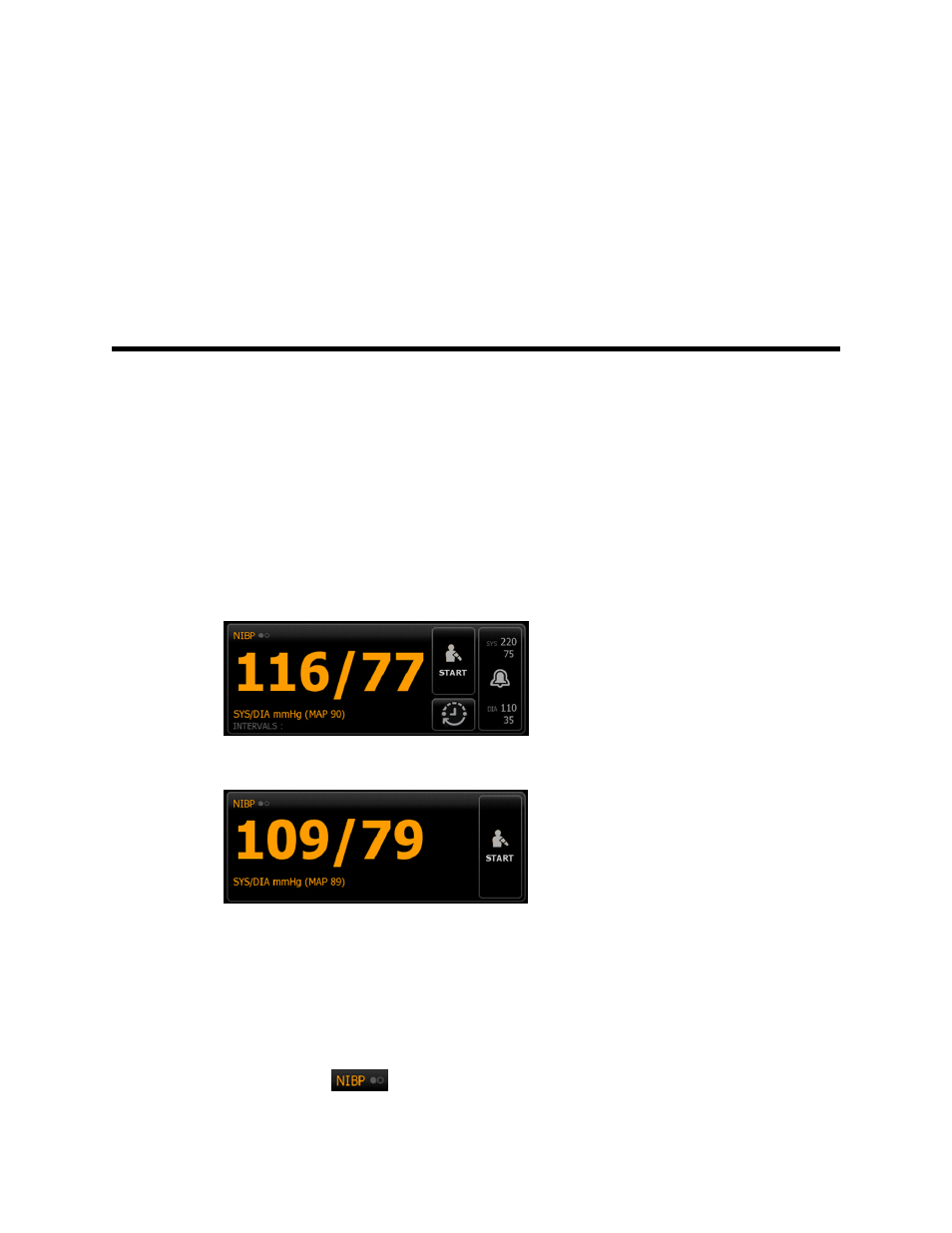

NIBP frame in Monitor profile
NIBP frame in Spot Check and Triage profiles
NIBP measurement display
In all profiles, the frame can display systolic and diastolic measurements, and MAP calculations.
You can configure the default view in Advanced settings.
View indicator
Touch the NIBP frame to toggle between views.
•
NIBP view 1
displays the SYS/DIA measurements as the primary content and the
MAP calculation as secondary content.
69
