Page 20

No. Feature
Description
9
Braun ThermoScan® PRO 4000
thermometer and dock
Support temperature measurements from the ear. Dock
charges the thermometer battery.
10
SureTemp® Plus thermometer
connector
Secures the probe connection to the wall system.
11
Blood pressure and pulse oximetry
See front underside view for more detail.
12
Power switch and LED
Power-on/Standby switch.
The LED indicates the charging status when connected to
AC power:
•
Green: The battery is charged.
•
Amber: The battery is charging.
13
USB/Comms cover
Houses light bar.
Provides access to host USB connections for optional
accessories and some routing for cords and cables.
14
Light bar
Provides a visual alarm with red and amber LEDs.
15
Speaker
Provides tones. A piezo beeper inside the monitor provides
backup.
16
Specula dispenser
Dispenses KleenSpec® disposable specula in pediatric
(2.75 mm) and adult (4.25 mm) sizes.

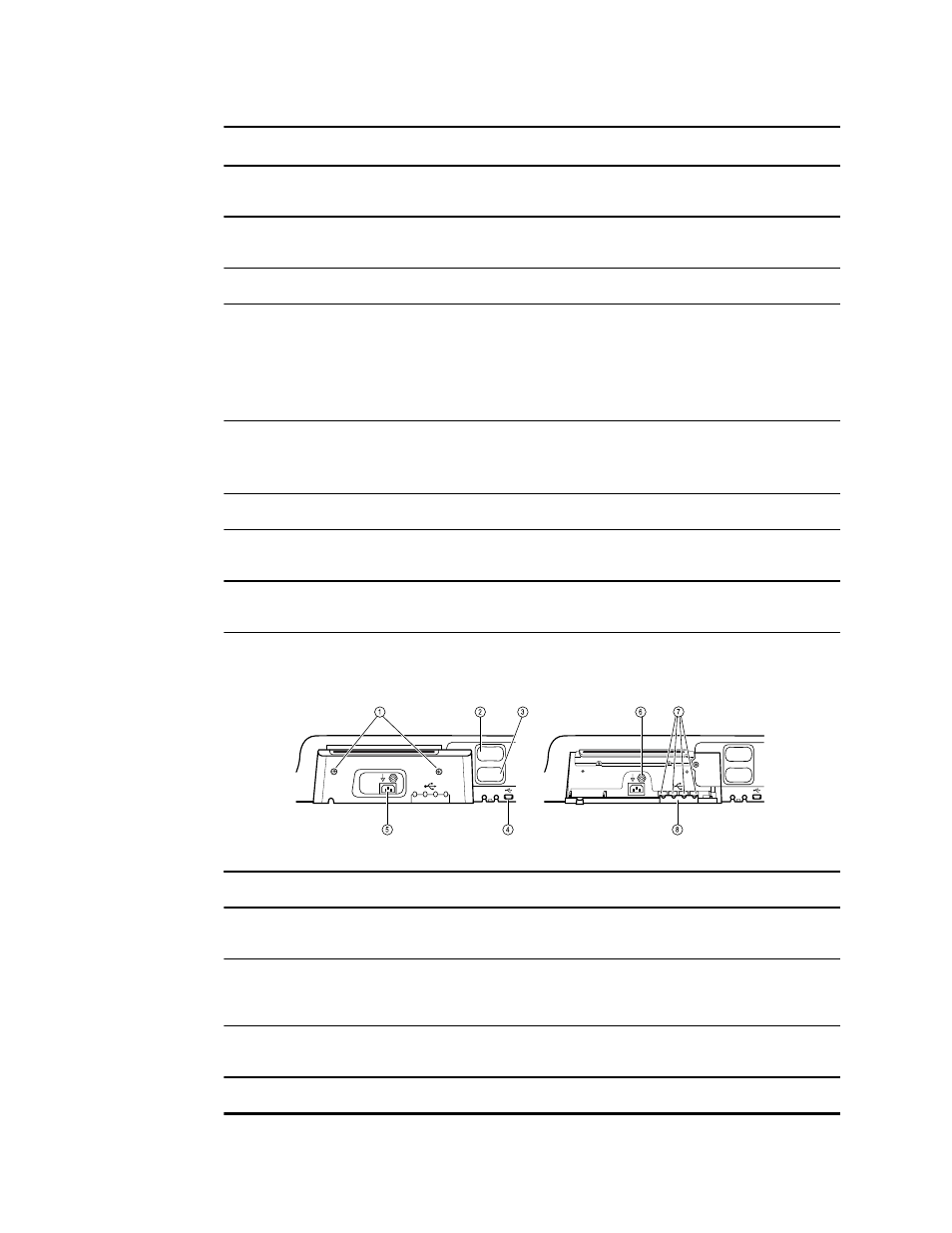

Front underside views
(Left: USB/Comms cover attached; Right: USB/Comms cover removed)
1
Retention screws
Supports removing and attaching USB/Comms cover.
2
Blood pressure
Self-contained module for easy replacement. Supports
dual-lumen or single-lumen hoses.
3
Pulse oximetry
Optional Nellcor (SpO2) or Masimo Rainbow SET (SpO2 or
combined SpO2/SpHb) in a self-contained module for easy
replacement.
4
USB-to-computer connector
Provides a connection to an external computer for testing,
data transfer, and software upgrades.
5
Power connection
Provides an external AC power connection.
14 Controls, indicators, and connectors
