Page 31

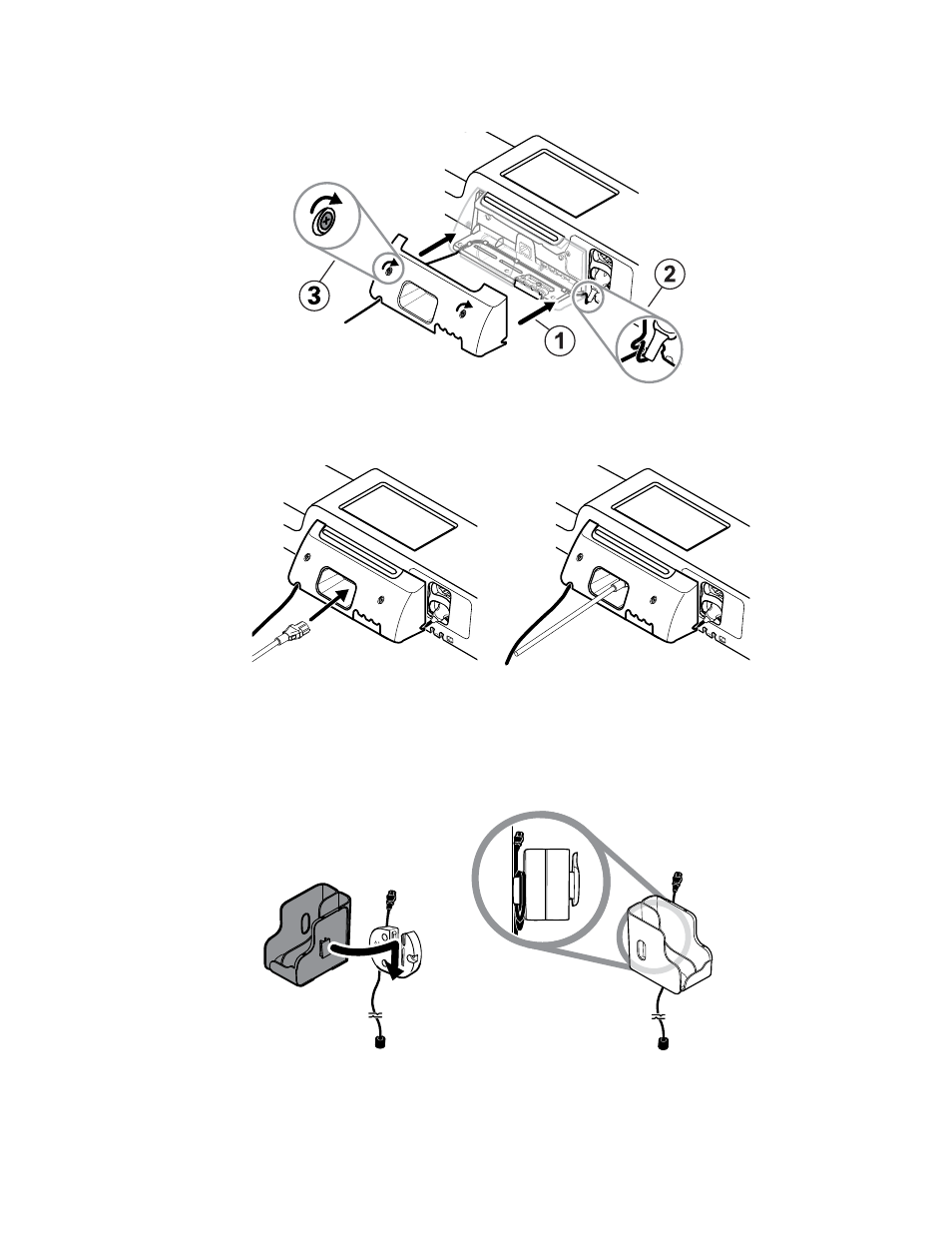

b. Tighten the two retention screws.

9. Attach the system power cord to the wall unit. Do not plug the cord into an outlet at this time.

Mount the accessory bin

1. Mount the accessory bin on the accessory bin bracket, then loosely wrap the excess power

cord around the accessory bin bracket.

2. If your wall system is configured for SpO2 (or SpHb), attach the spool to the accessory bin by

sliding the spool onto the retention clip.

Directions for use

Setup 25
