Note
You can specify pulse tone volume in the Pulse rate tab (located in the Alarms tab).

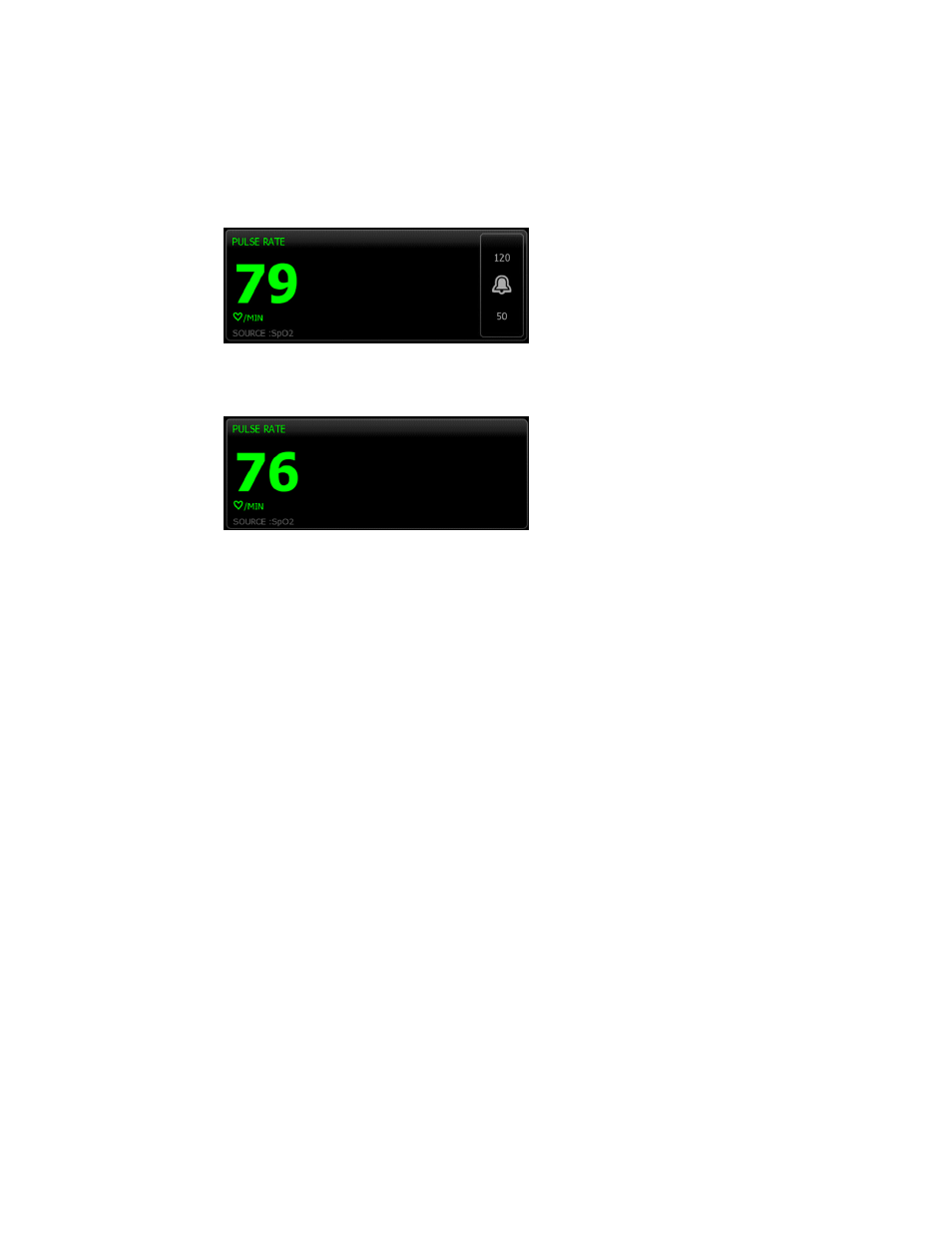

Monitor profile
Spot Check and Triage profiles
Configure pulse rate alarms
Follow these steps to set alarm limits for pulse rate.
1. Verify that you are using the Monitor profile, which contains the Alarms tab.
2. Touch the Alarms tab.
3. Touch the Pulse rate tab.
4. Enter the desired upper and lower alarm limits for pulse rate using the up/down arrow keys or
the keypad.
5. Touch the Home tab.
The new alarm settings display in the Alarm Limit control button.
Manual parameters frame
The Manual parameters frame, located in the lower right of the Home tab, supports manual entry of
parameters and displays measurements taken by some accessories.
Note
Manual parameters are not available in the Triage profile.
Note
Body mass index (BMI) is only available with an attached weight scale that
calculates BMI.
Note
When a measurement is transferred from an attached weight scale to the monitor,
the measurement displayed on the monitor is within one decimal place (0.1) of the
measurement displayed by the weight scale.
Note
You cannot manually enter temperature on a monitor configured with a SureTemp
Plus temperature module.
