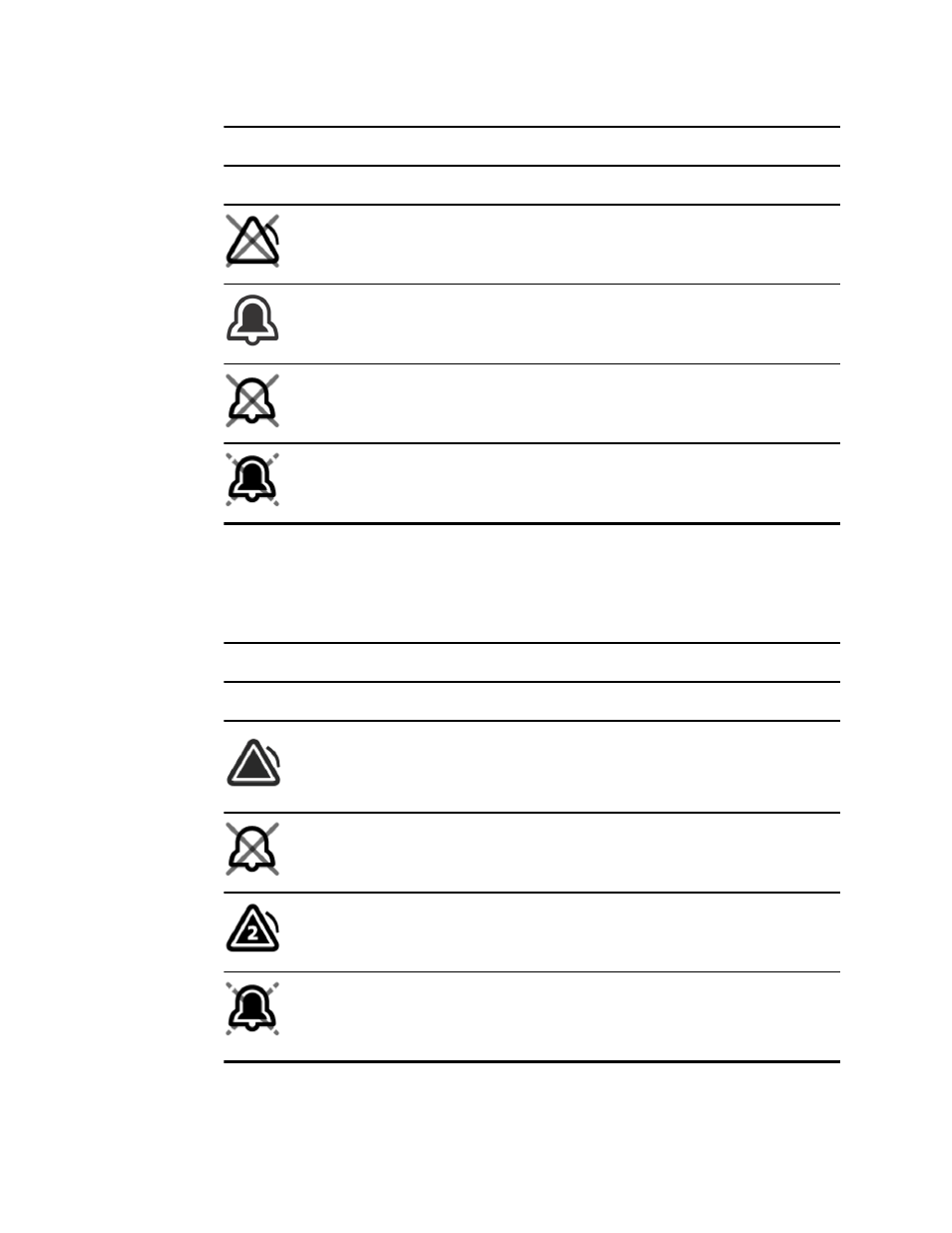

Icons in parameter frames
Icon
Name and status
Alarm off.
No visual or audio alarms or Nurse Call notification will occur for this parameter.
Alarm on.
Audio and visual notifications and Nurse Call are enabled.
Alarm audio off.
Only visual notifications, including Nurse Call, will occur.
Alarm audio paused.
The audio tone is paused for a period ranging from 90 seconds to 15 minutes. The icon
remains until the paused time counts down to 0.
Icons in the Device Status area
The icons in the Device Status area are black and white, but the background area changes colors
to indicate the alarm priority. Messages accompany these icons. These icons can be controls or
status indicators.
Icons in the Device Status area
Icon
Name and status
Alarm active.
One or more alarms are active. Touch this icon to pause or turn off the audio tone.
Alarm audio off.
Audio signals are disabled, but alarm limits and visual alarm signals remain active.
Multiple alarms toggle.
Touch this icon to cycle through the messages for each active alarm.
Alarm audio paused.
The audio tone is paused for a period ranging from 90 seconds to 15 minutes. The icon
remains until the paused time counts down to 0. Touch this icon to reset the pause
interval. The pause interval is determined by settings in the Advanced tab.
