Understanding Your System Solution Chapter 3
3.2.2. View Solution
The View Solution dialog box contains information and tools that you can use to
to evaluate system performance and efficiency.

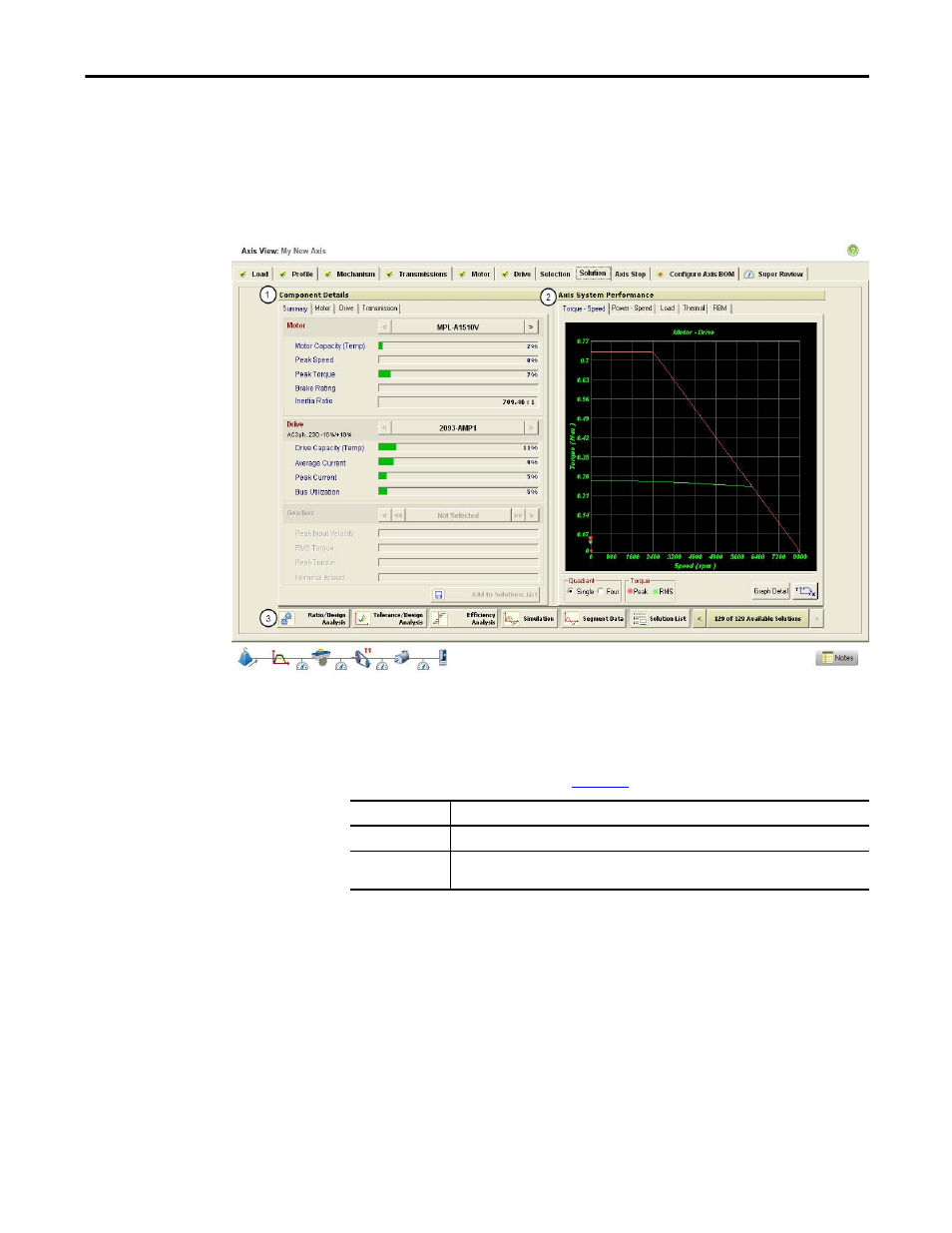

Figure 155 - View Solution Dialog Box
View the following parameters for your solution. The Component Details
portion of the detailed solution view provides an overall summary of the
performance characteristics for the various components of the system.
Table 125 - Component Details (label 1 in Figure 155 )
When a solution includes a gearbox, the inertia ratio is not simply the Reported
Application Inertia divided by the Reported Motor Inertia (rotor inertia), as with
systems that do not include a gearbox.
When a system includes a gearbox, the Input Pinion of the gearbox is rigidly
attached to the rotor, while the rest of the gears in the gearbox remain connected
to the application. Most of the backlash in the system occurs between the input
pinion and the rest of the system.
Parameters Description
Motor Cat. No. Click to access the product specifications for that catalog number.
Forward/Backward
Arrows
Navigate to the View Solution information for the next component in the solution list.
