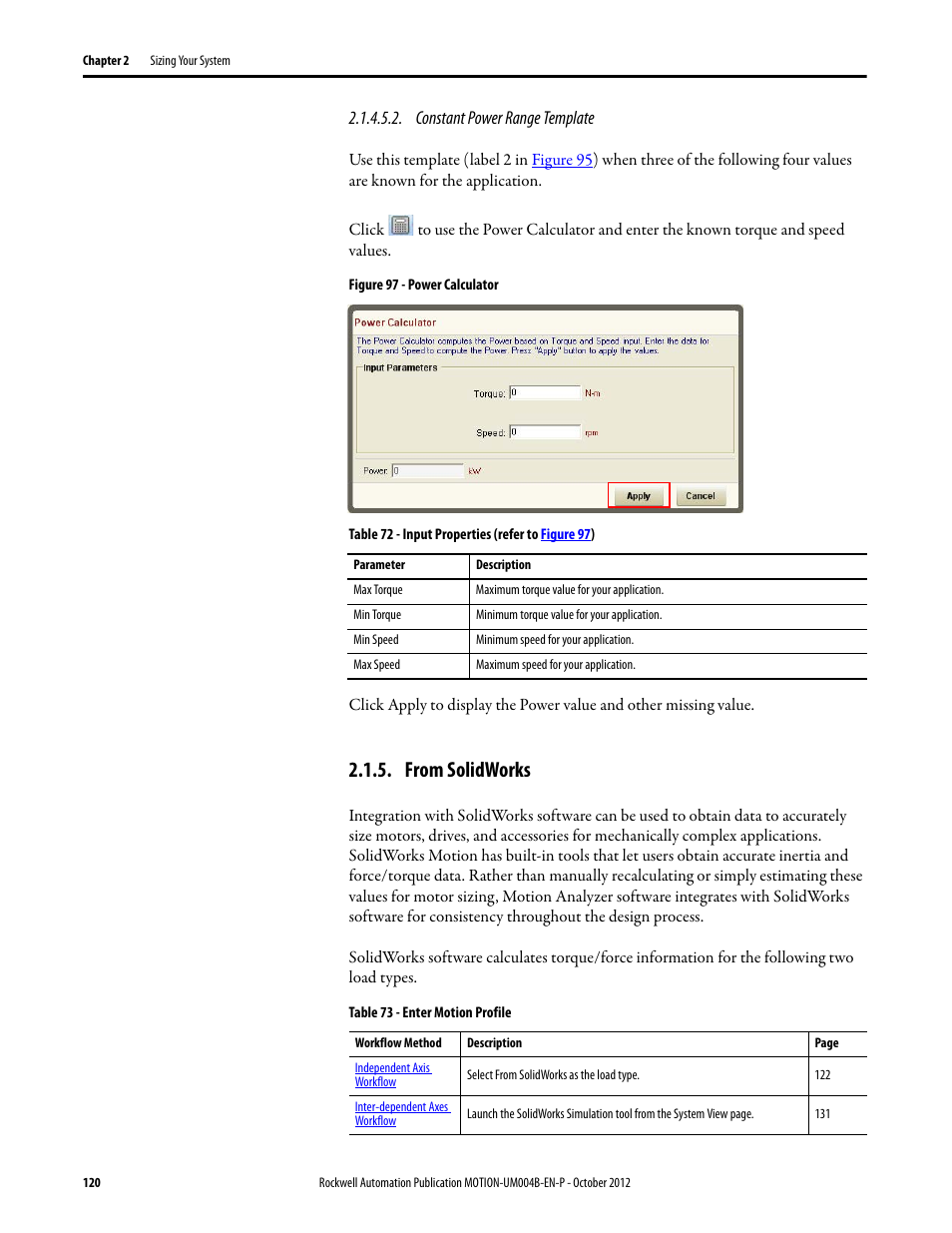

Constant power range template, From solidworks – Rockwell Automation Motion Analyzer Software User Manual
Page 120
