INSTALLATION

Install 4A Retainer Clips

The 4A retainer clips must be installed on each of the 12 receptacles on the

lower rear panel of the cabinets. To install a clip, position it and insert the
legs in the cabinet as shown in Figure 2-12.

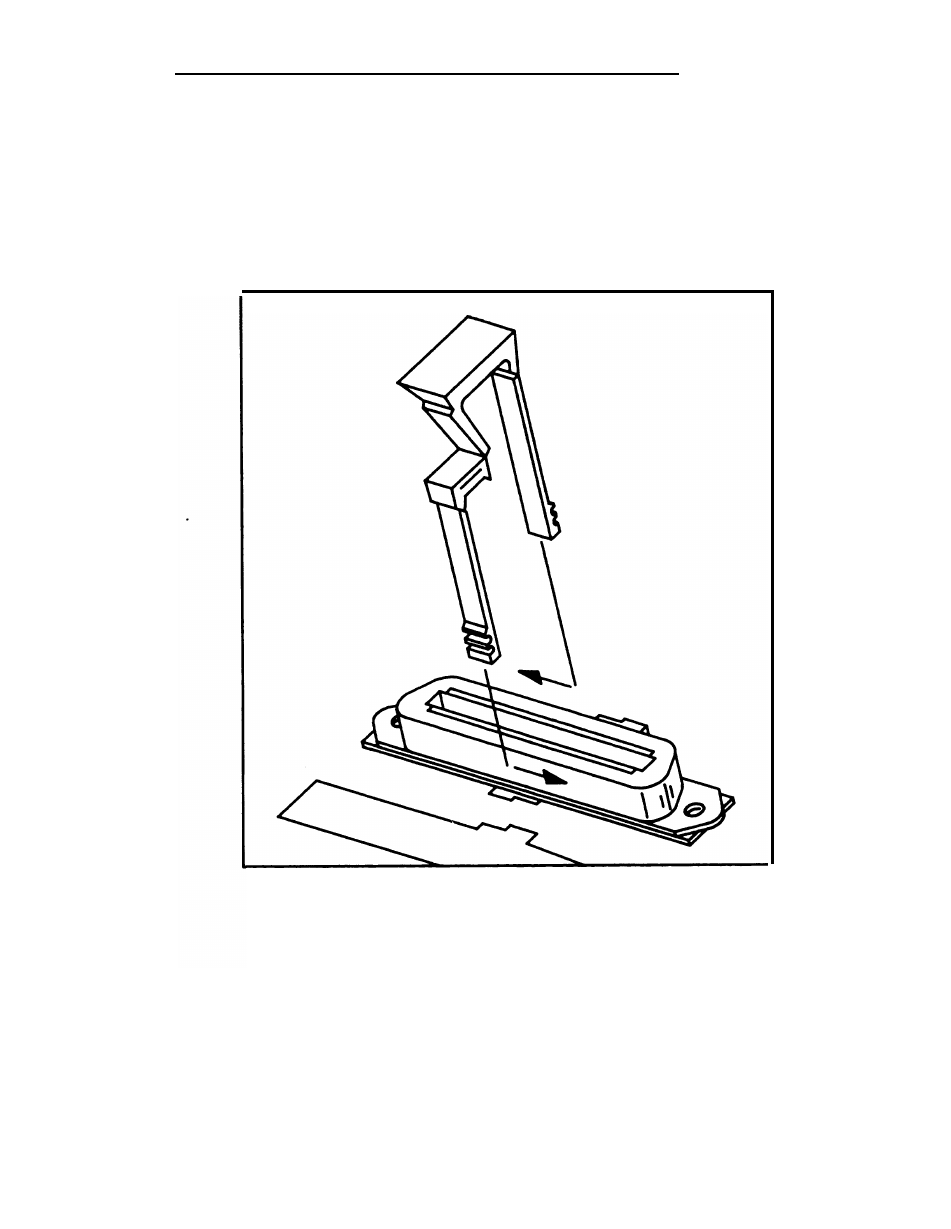

Figure 2-12.

4A Retainer Clip Installation

2-29
