INSTALLATION

H 6 0 0 3 0 7 . G 2

C O N N E C T O R

C A B L E ( N O T E )

TO D4

C H A N N E L

B A N K

NOTE; FOR DISTANCES OVER 50 FEET (15.2 M)

USE C6E CONNECTOR CABLE(S) BETWEEN

H600 307 .G2 CONNECTOR CABLE AND DS1

T R U N K C I R C U I T P A C K .

T O L O C A L L Y

P R O V I D E D - 4 8 V

P O W E R S U P P L Y

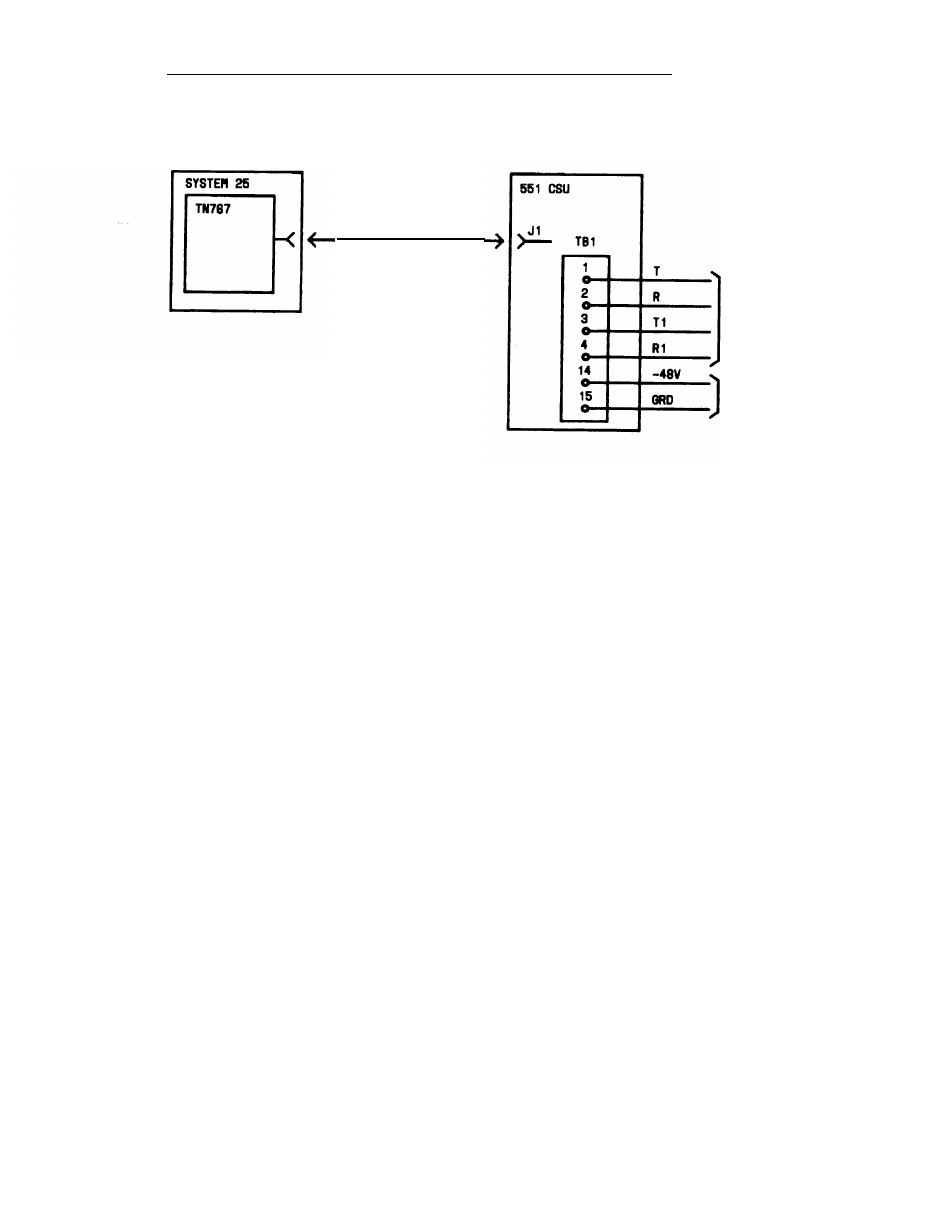

Figure 2-41.

DS1 to D4 Connections for Off-Premises Stations

2-97
