Stand-alone remotely powered voice terminals, Figure 2-38 – AT&T System 25 User Manual

Page 116

INSTALLATION

Stand-Alone Remotely Powered Voice Terminals

See Figure 2-38.

Unpack each terminal and examine it for damage.

2. At the workstation, connect one end of the terminal line cord to the

terminal and the other end to the modular wall jack.

LEGEND :

ZTN79 -

B1 -
cl -
C2 -
C7 -
P2 -

P1 -
W1 -

HYBRID LINE CP
TYPICAL - 103A CONNECTING BLOCK

MODULAR CORD ( D8W-87 )
OCTOPUS CABLE ( WP90780 )
MODULAR CORD ( D6AP-87 )
MODULAR BULK POWER SUPPLY

POWER UNIT ( 346A)
POWER PANEL ( 346A-1)

KS22911L POWER SUPPLY

INSIDE WIRING CABLE

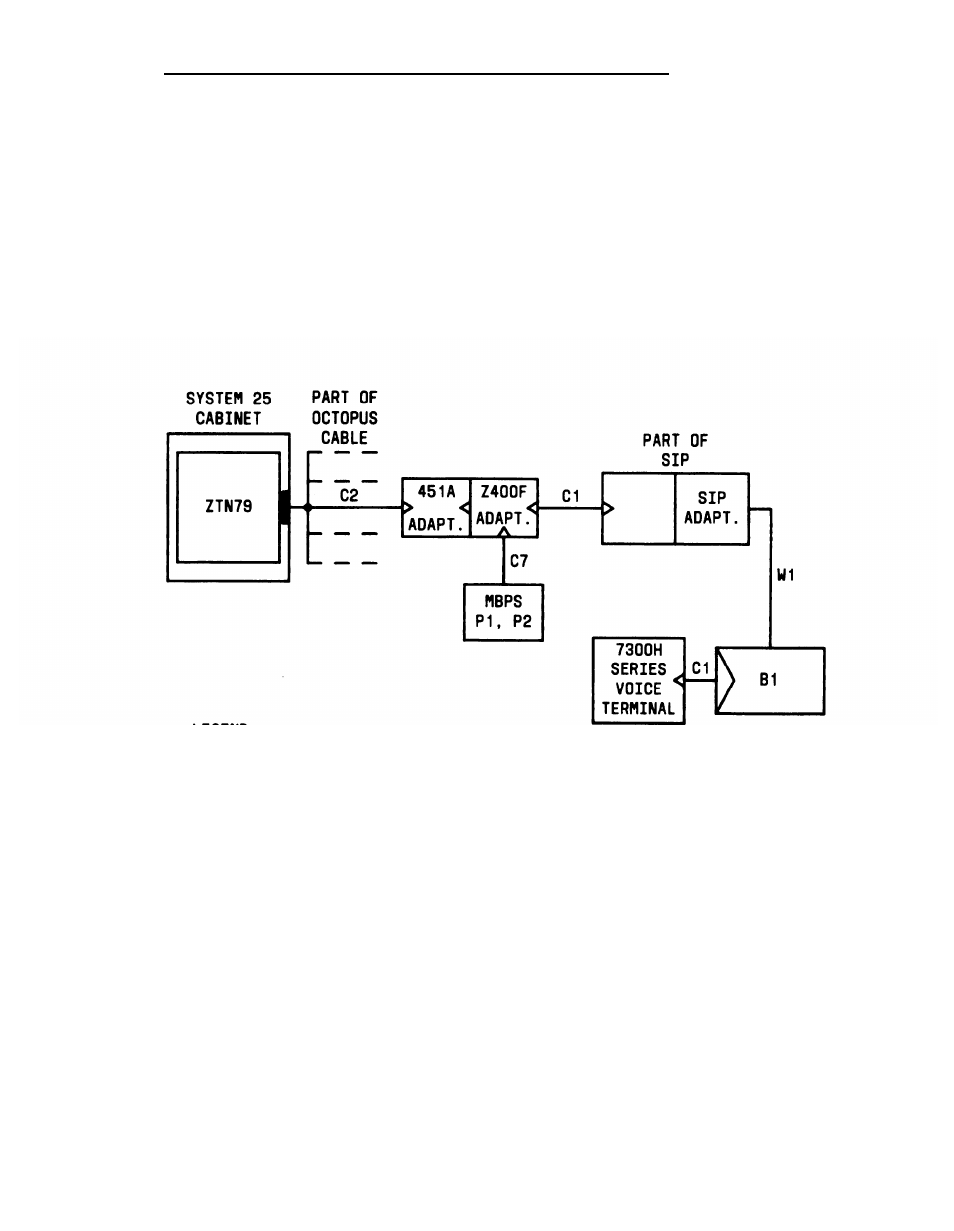

Figure 2-38.

Stand-Alone Remotely Powered Voice Terminal Connections
