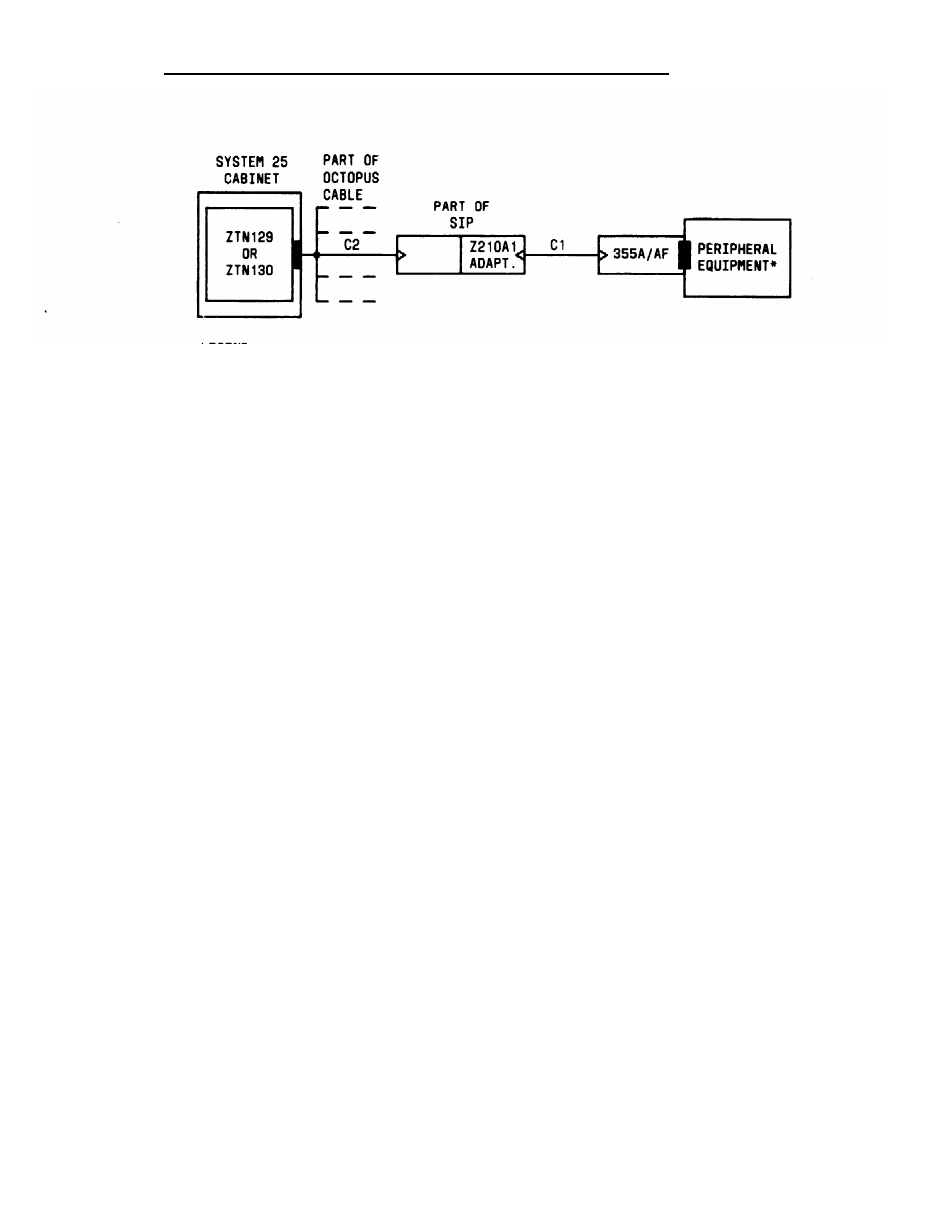

Figure 2-45, Nonswitched connection of peripheral equipment, Plugged into system ac outlet – AT&T System 25 User Manual
Page 128
INSTALLATION
LEGEND :
ZTN129-CPU/MEMORY CP
C1 -MODULAR CORD (D8W-87)
C2 -OCTOPUS CABLE (WP90780)
355A ADAPTER -RS-232 PLUG TO MODULAR JACK
355AF ADAPTER -RS-232 RECEPTACLE TO MODULAR JACK
* PERIPHERAL EQUIPMENT
●
SYSTEM ADMINISTRATION TERMINAL (LEG 1 OF OCTOPUS CABLE)
●
DIGITAL TAPE UNIT (LEG 3 OF OCTOPUS CABLE)
●
SMDR OUTPUT DEVICE (LEG 2 OF OCTOPUS CABLE)
Figure 2-45.
Nonswitched Connection of Peripheral Equipment Plugged
into System AC Outlet
2-103
