INSTALLATION

L E G E N D :

TN742 –

ZTN78 –

B1 -
C2 -

C5 -

W1 –

MOH -

ANALOG LINE CP
TIP RING CP
TYPICAL - 103A CONNECTING BLOCK
OCTOPUS CABLE (WP90780) PEC 2720-05P
MODULAR CORD (D4BU-87)

INSIDE WIRING CABLE

KS-23395 INTERFACE

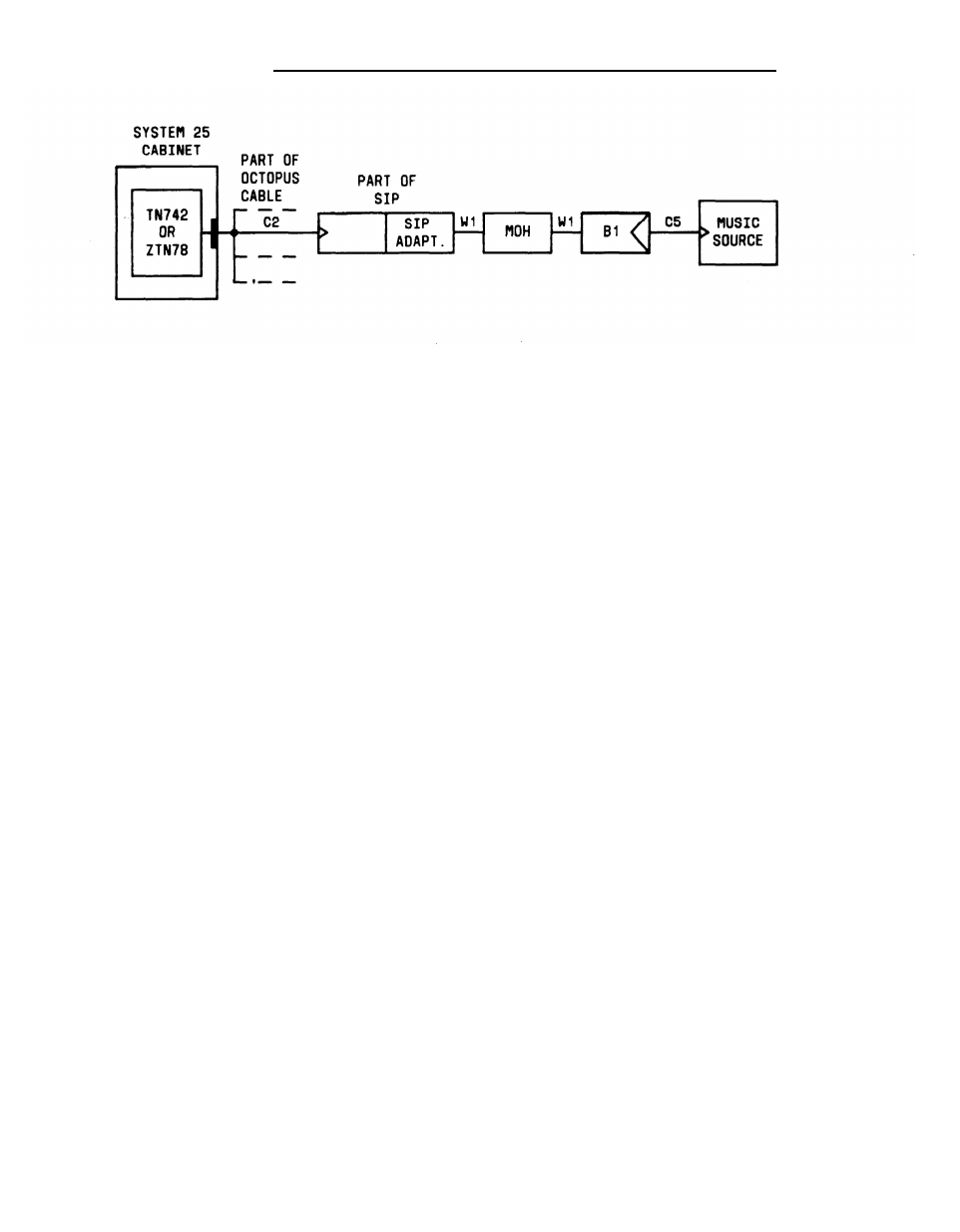

Figure 2-52.

Music Source, FCC Registered

2-118
